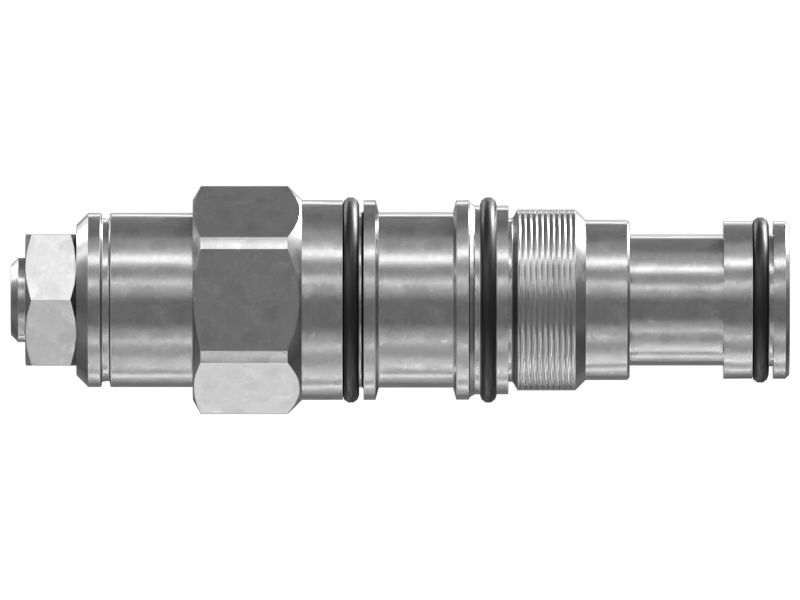

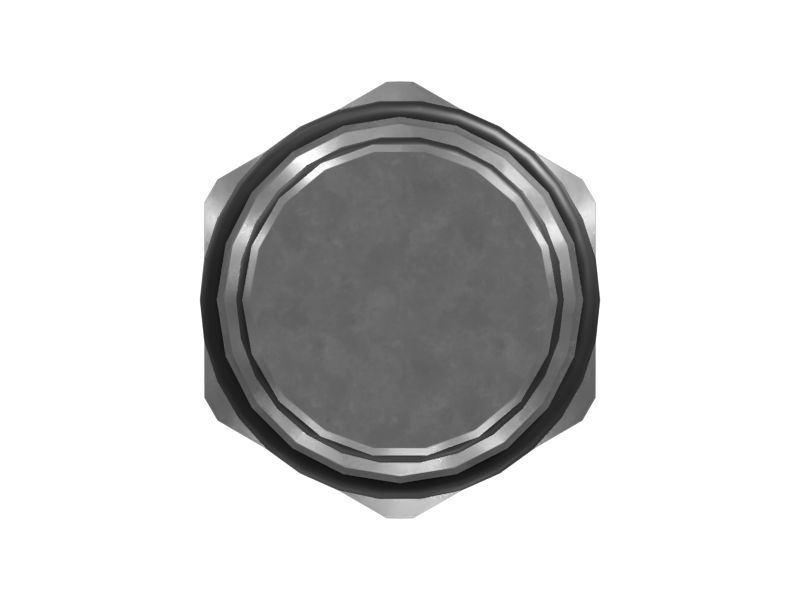

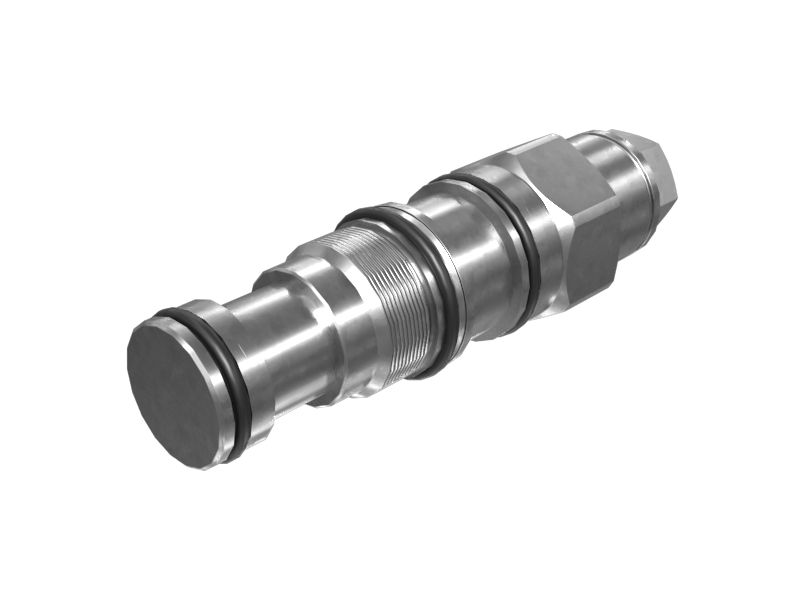

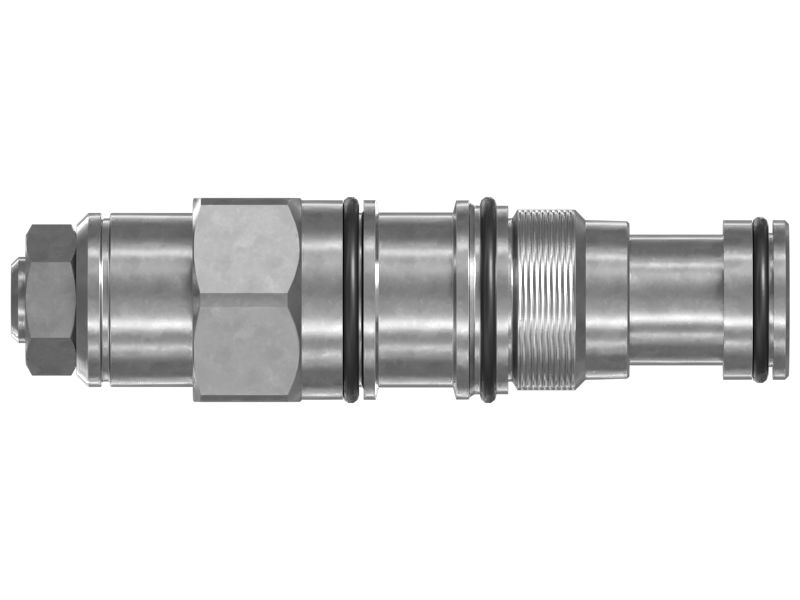

493-4197: Counterbalance Valve

The Counterbalance Valve is designed to control the motion of loads in hydraulic systems by regulating the flow of hydraulic fluid. When a load is raised and lowered by a hydraulic cylinder, the counterbalance valve prevents the load from moving uncontrollably by maintaining a balanced pressure on both sides of the actuator. It does this by allowing hydraulic fluid to flow freely in one direction while blocking flow in the opposite direction providing smooth and controlled motion of the load.

Attributes:
• The pressure setting is 34474 kilopascals.
• Maximum flow is 120 liters per minute.
• Maximum pressure is 35000 kilopascals.
• The pilot ratio is 4:5:1.

Applications:
The Counterbalance Valve is used to regulate the flow of fluid in one direction while allowing free flow in the opposite direction, providing smooth and controlled operation of hydraulic systems.

• Material: Carbon Steel
