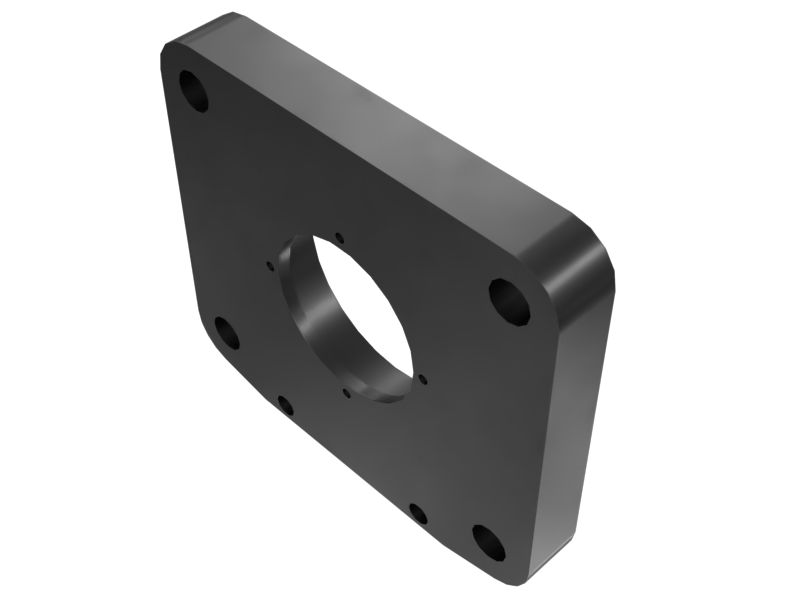

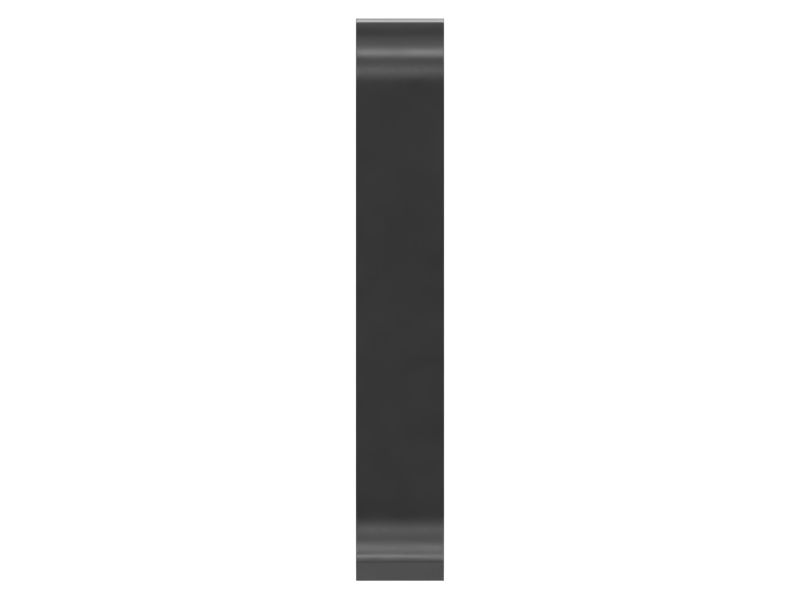

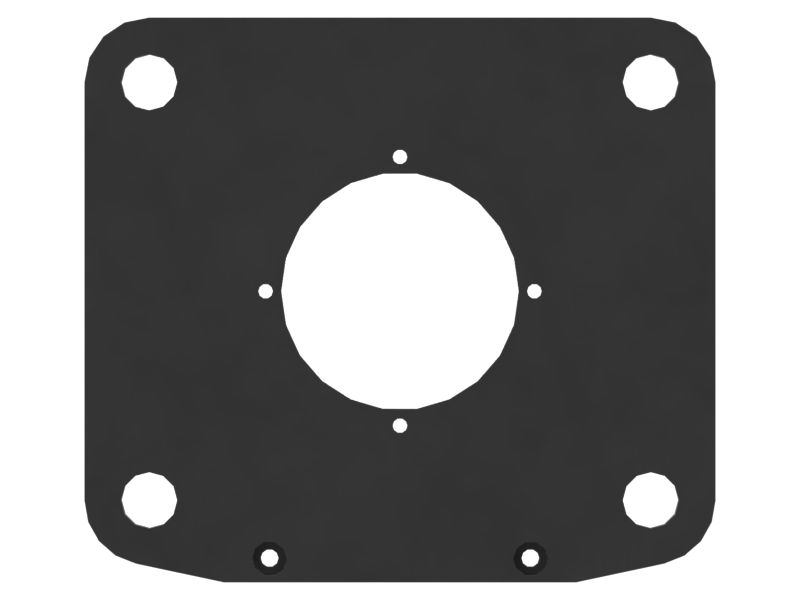

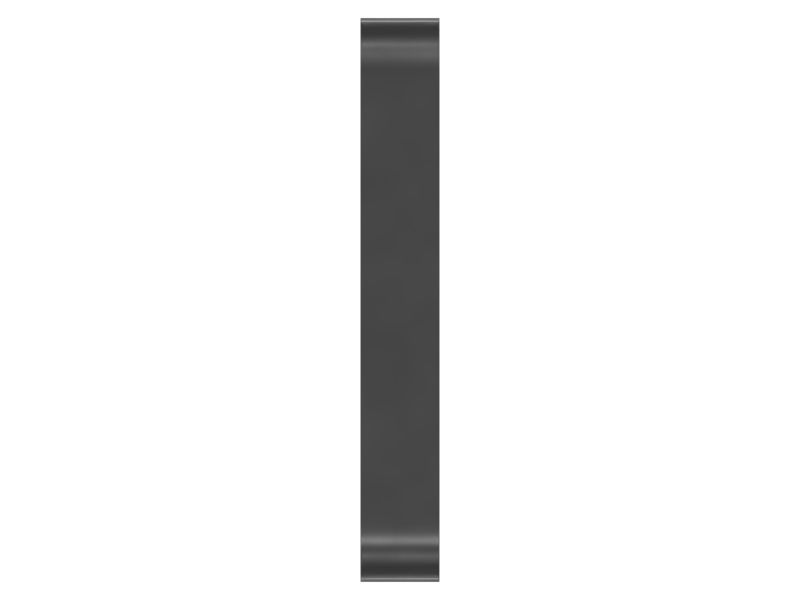

492-1993: Track Repair Front Plate

The Track Repair Front Plate facilitates the repair and maintenance of track assemblies, used to work with the double-acting cylinder and threaded ram adapter, this plate provides a robust foundation that secures the track components in place. It is particularly useful for operations requiring stability. The plate is intended for use with press hardware to effectively manage the load and ensure accurate repairs. It replaces the discontinued model, but users should continue using contact tooling from the previous track repair group.

Attributes:
• Allows for effective load management during repair operations.
• Ensures proper alignment and handling of track components.
• Enhances the effectiveness of hydraulic tools used in track repair.

Applications:
The Track Repair Front Plate is used in the track repair area of the equipment. It is positioned under the track assembly to provide support and stability during maintenance. The plate ensures accurate alignment and effective handling of track components.

• Weight (kg): 35.32

• Weight (lb): 77.867

• Length (mm): 362

• Length (in): 14.252

• Width (mm): 324

• Width (in): 12.756

• Thickness (mm): 50.5

• Thickness (in): 1.988

• Inner Diameter (mm): 136.6

• Inner Diameter (in): 5.378

• Internal Thread: 6-7/8"-12-2B , M36X4-6H, 5/8"-11-2B

• Material: Plastic,Low Alloy Steel,Coating Mixed
