Undercarriage Track Repair Pin Install Back Plate

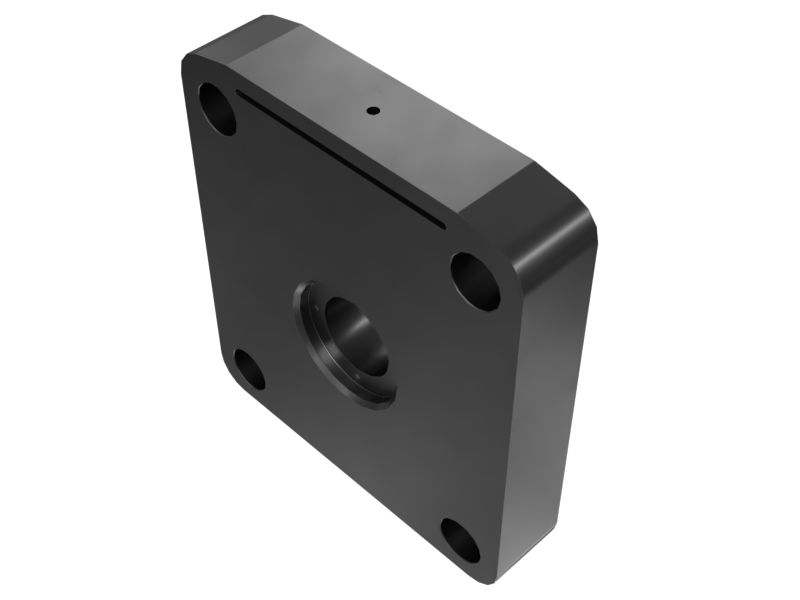

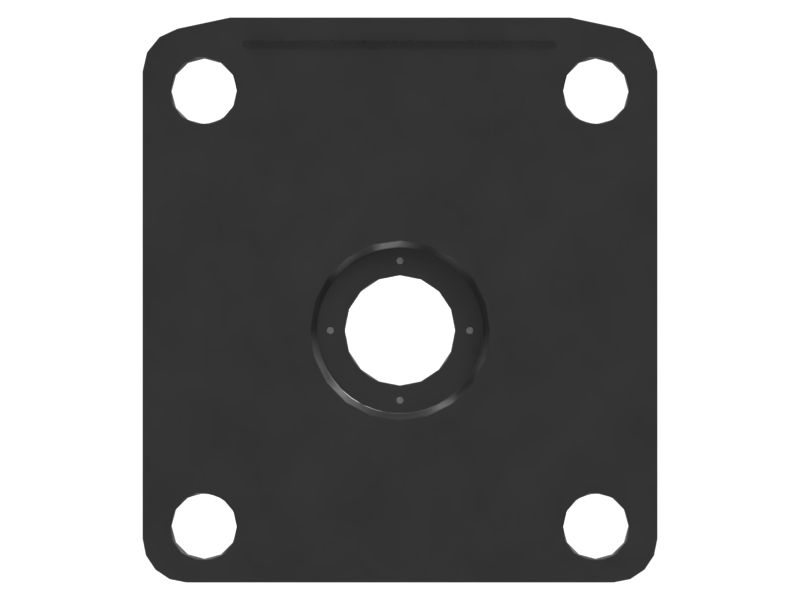

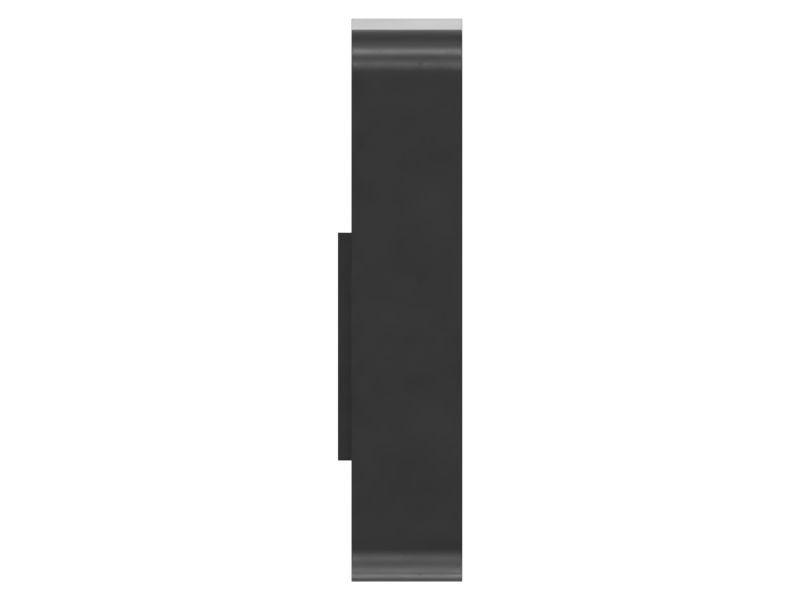

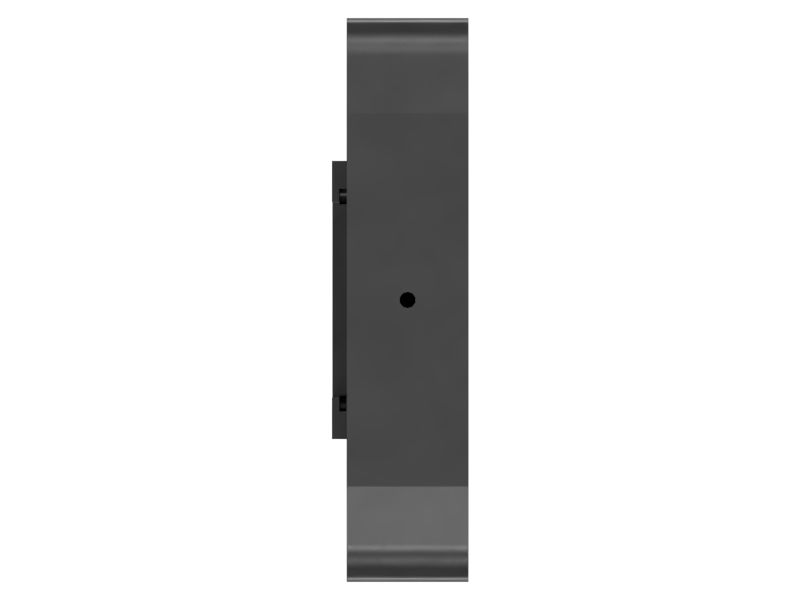

490-7506: Undercarriage Track Repair Pin Install Back Plate

Cat® Undercarriage Track Repair Pin Install Back Plate is used to secure the track pin in place duri

Заинтересовал товар?

Схема

Не найдено

Описание для номера по каталогу 490-7506

The Undercarriage Track Repair Pin Install Back Plate provides support and stability to the track pin, ensuring that it remains securely in place and does not become loose or dislodged. The track pin is a required component of the undercarriage unit, connecting the track shoe to the track link and allowing for smooth movement of the track.

Attributes:
• Manufactured to precise specifications and built for durability and reliability
• Securely holding the track pin in place and preventing potential issues that could arise from misaligned components

Applications:
The Undercarriage Track Repair Pin Install Back Plate acts as a barrier between the track pin and the surrounding components, preventing movement or shifting that could lead to damage or malfunction.

Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 490-7506

Overall Length (mm): 472
Overall Length (in): 18.582
Overall Height (mm): 518
Overall Height (in): 20.393
Overall Width (mm): 114.3
Overall Width (in): 4.5
Weight (kg): 176.8
Weight (lb): 389.776
Material: Low Alloy Steel,Carbon Steel,Coating Mixed
