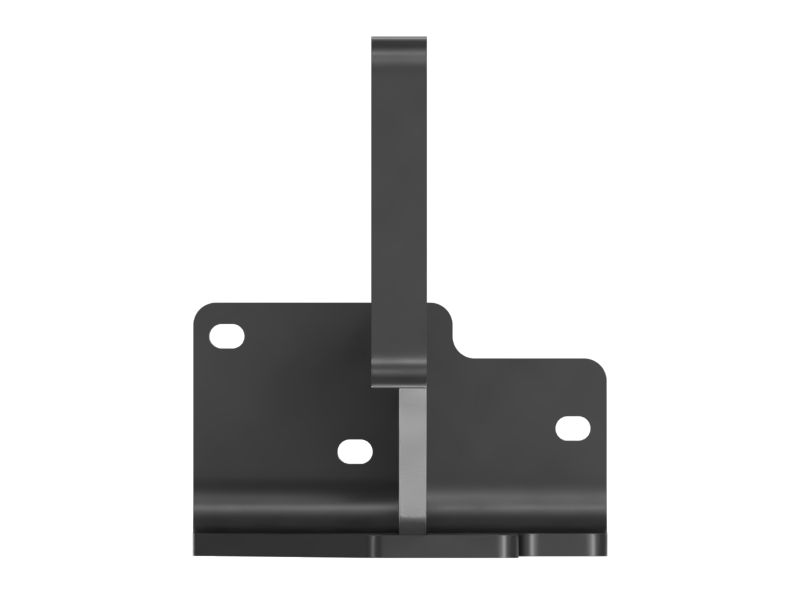

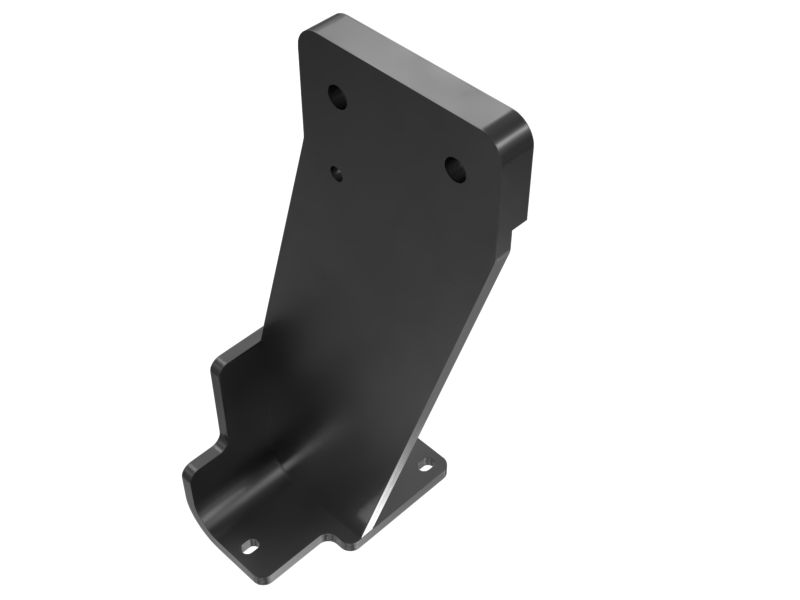

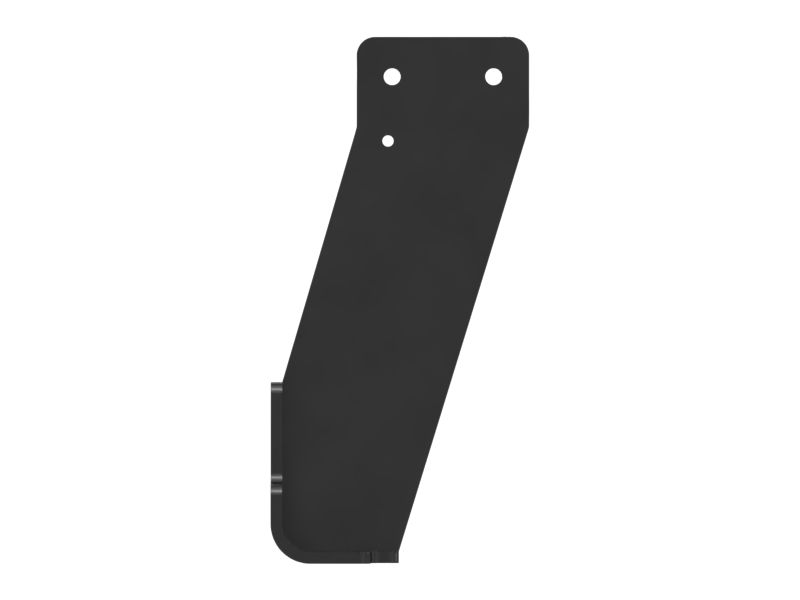

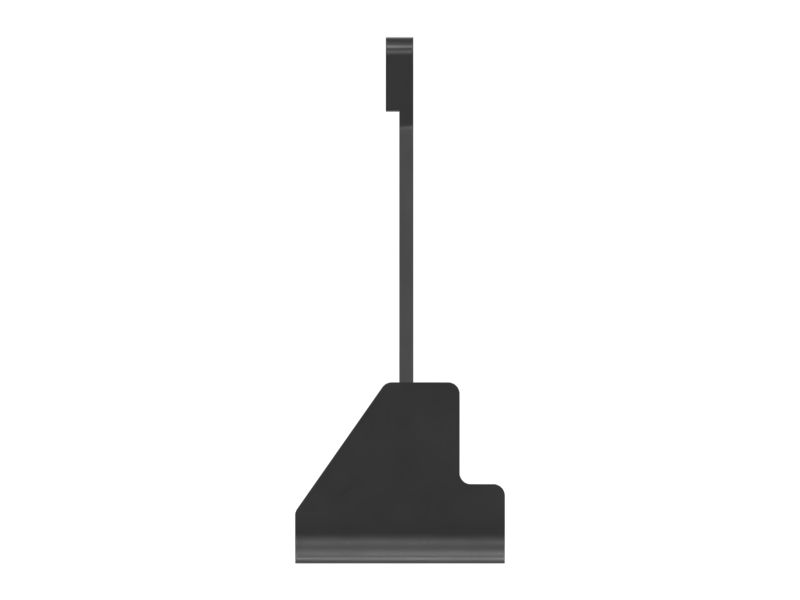

488-0798: Wiring Harness Mount Bracket

The Washer is a component used to ensure the proper distribution of load and alignment in bolted assemblies within the equipment. This washer provides a solid and stable foundation between fasteners and the surface of the part. By evenly distributing the load, it prevents damage to the surfaces and minimizes the risk of the fasteners loosening due to vibrations and other mechanical forces.

Attributes:
• Provides even distribution of load when tightening bolts and screws.
• Acts as a spacer to maintain proper clearance between components.
• Helps prevent damage to the surface material being fastened.
• Ensures secure and tight connections in the equipment.

Applications:
The Washer is positioned between fasteners and the equipment components, providing spacing, load distribution, and alignment in high-stress assembly points.

• Overall Height (in): 9

• Overall Height (mm): 228.5

• Overall Length (in): 18.35

• Overall Length (mm): 466

• Overall Width (in): 7.28

• Overall Width (mm): 185

• Weight (kg): 9.75

• Weight (lb): 21.5

• Material: Carbon Steel,Alloy Steel
