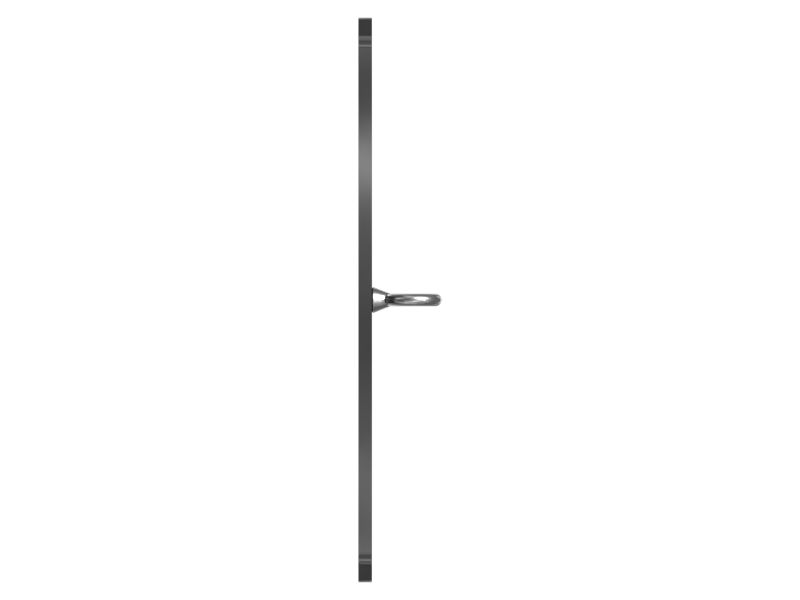

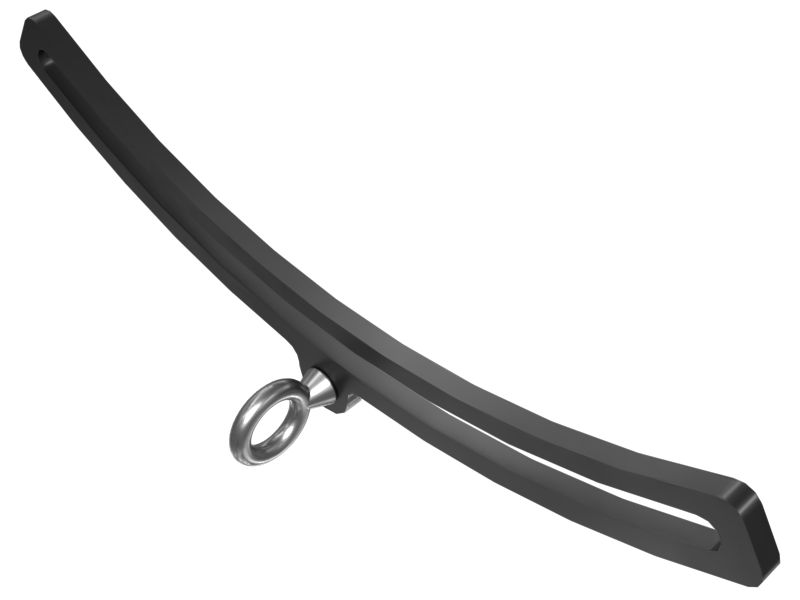

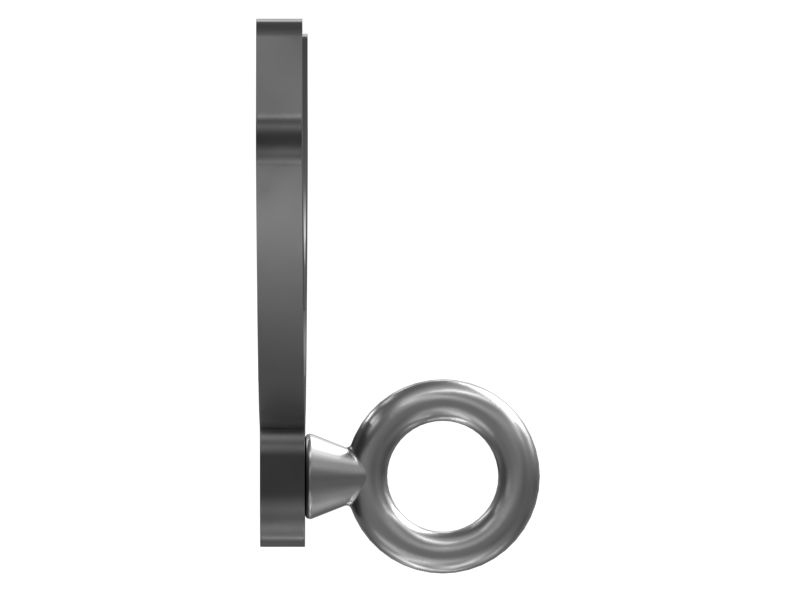

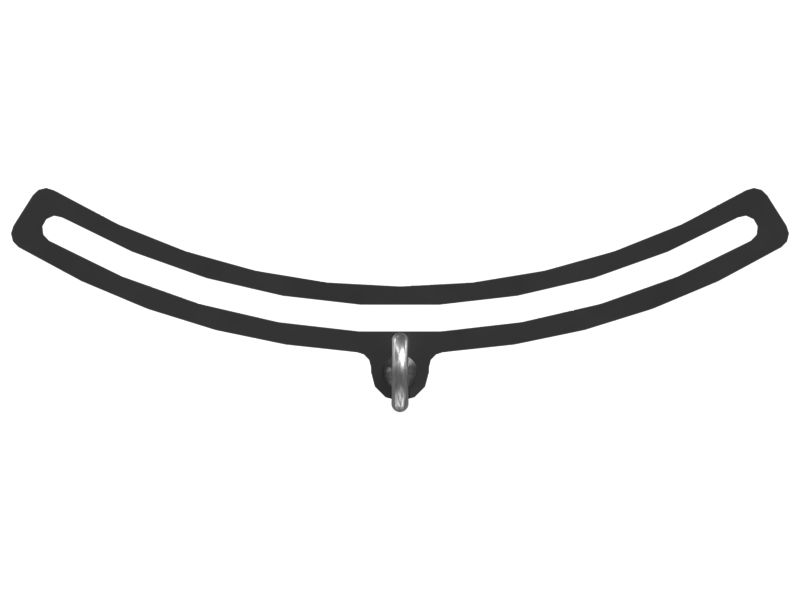

487-8639: Final Drive Axle Lifting Plate

A Final Drive Axle Lifting Plate is securely attached to the final drive cover flange using bolts. The slot on the lifting plate allows for rotational flexibility, enabling technicians to position the tool onto the final drive cover flange as needed. The eyelet on the lifting plate serves as a connection point for a chain or come-along, providing additional support and ensuring proper alignment of the axle during lifting and installation.

Attributes:
• Ensures proper alignment during removal and installation procedures, reducing the risk of damage to the axle or surrounding components
• Features an eyebolt to attach the plate to a chain or come along for additional support, ensuring proper alignment and safe handling of the axle

Applications:
A Final Drive Axle Lifting Plate provides a secure and controlled way to lift and position final drive axles that may require maintenance or replacement due to wear or damage. It allows technicians to securely attach and lift the axle when it needs to be removed for maintenance or repair tasks.

• Material: Steel,Alloy Steel,Structural Steel,Coating Mixed

• Thread: 1/2" - 20 - 2B

• Overall Length (mm): 514

• Overall Length (in): 20.236

• Overall Height (mm): 147.8

• Overall Height (in): 5.818

• Thickness (mm): 12

• Thickness (in): 0.472

• Weight (kg): 1.565

• Weight (lb): 3.45
