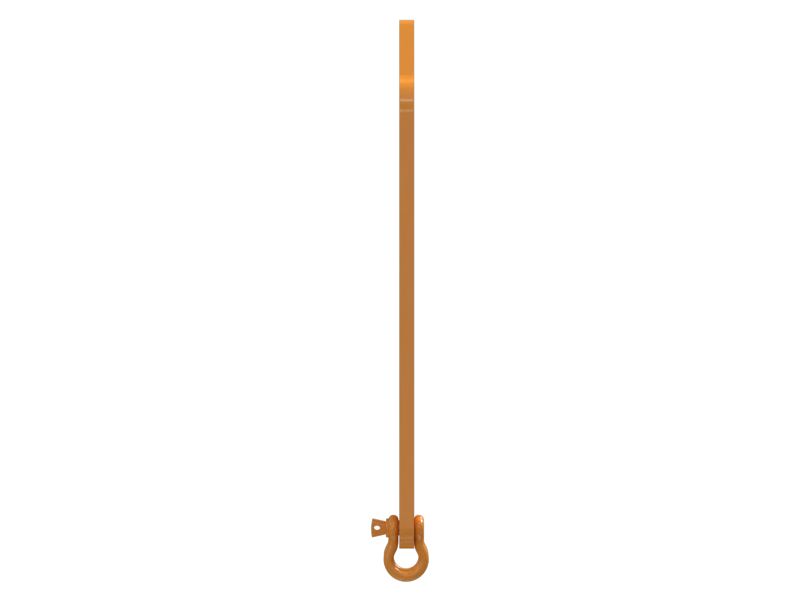

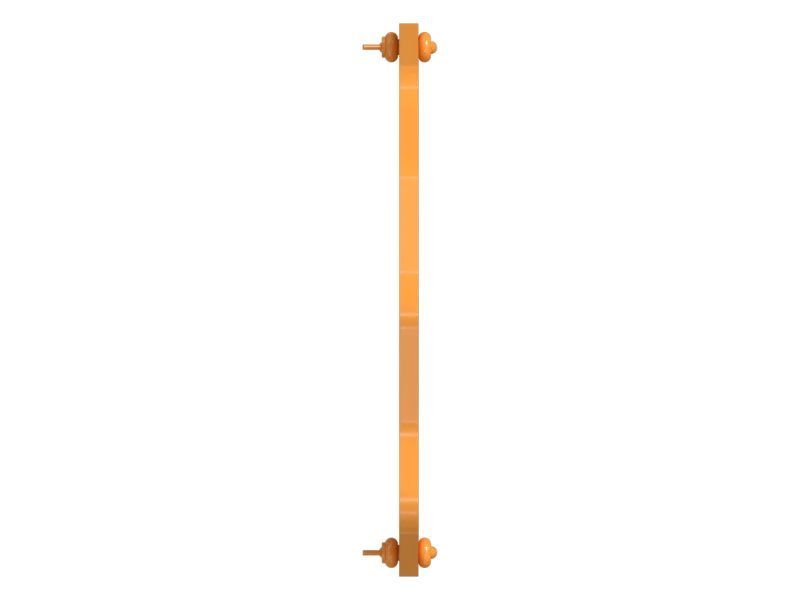

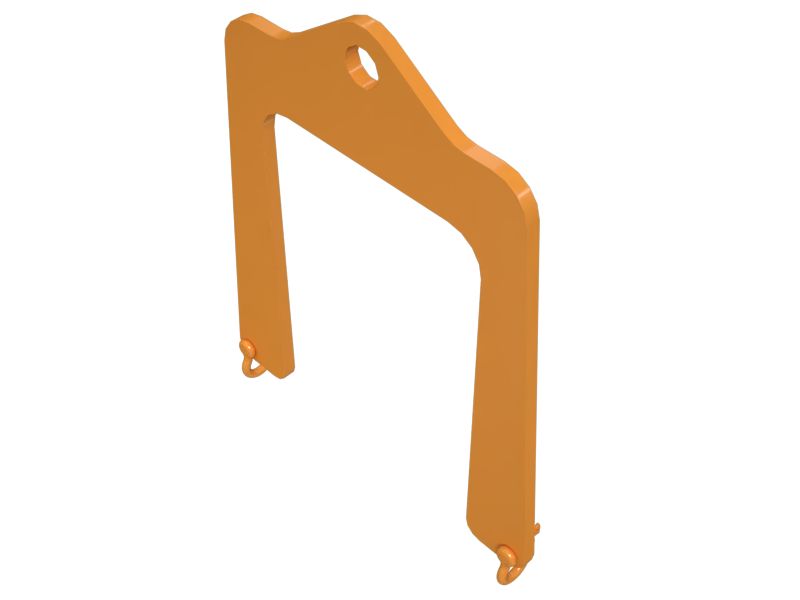

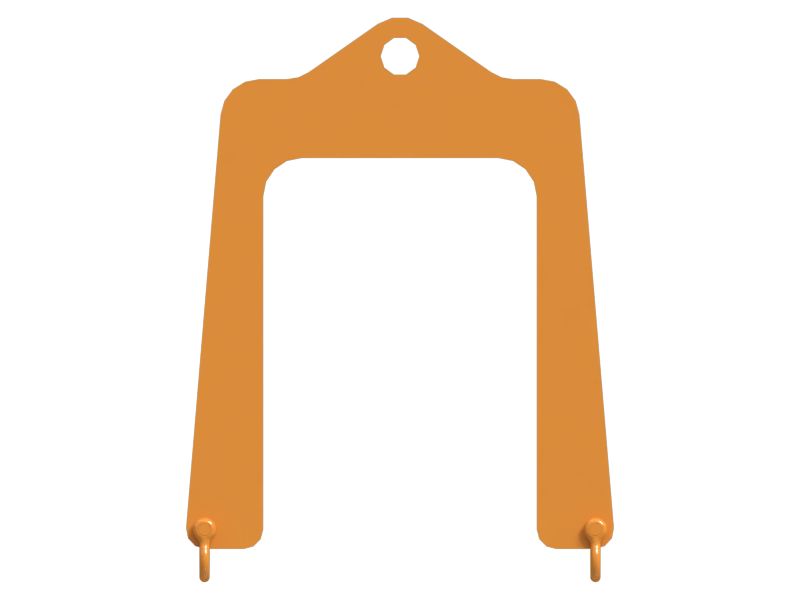

487-8616: Suspension Link Lifting Plate

The Suspension Link Lifting Plate is securely mounted onto the frame of the machine, providing a stable attachment point for lifting suspension links. One end of the lifting plate is connected to a lever puller hoist, which is a device used to apply force to lift or pull objects. The lever puller hoist is then attached to the suspension link, allowing technicians to lift and position the link as needed. This setup provides controlled lifting and maneuvering of the suspension link, making it easier to remove, install, or service the component.

Attributes:
• Provided with a working load limit of 907 kg at each shackle that offers a high level of strength and durability for lifting operations
• Features shackles to provide a secure attachment point for the lever puller hoist and safely lift suspension links without the risk of damage or injury
• Helps to align and install suspension components correctly, ensuring proper function and safety of the machine's suspension unit

Applications:
The Suspension Link Lifting Plate provides a safe and efficient way to lift and position suspension links that need to be removed, replaced, or serviced during maintenance tasks.

• Material: Steel,Structural Steel

• Overall Length (mm): 555.6

• Overall Length (in): 21.874

• Overall Height (mm): 734

• Overall Height (in): 28.897

• Thickness (mm): 20

• Thickness (in): 0.787

• Weight (kg): 21

• Weight (lb): 46.297
