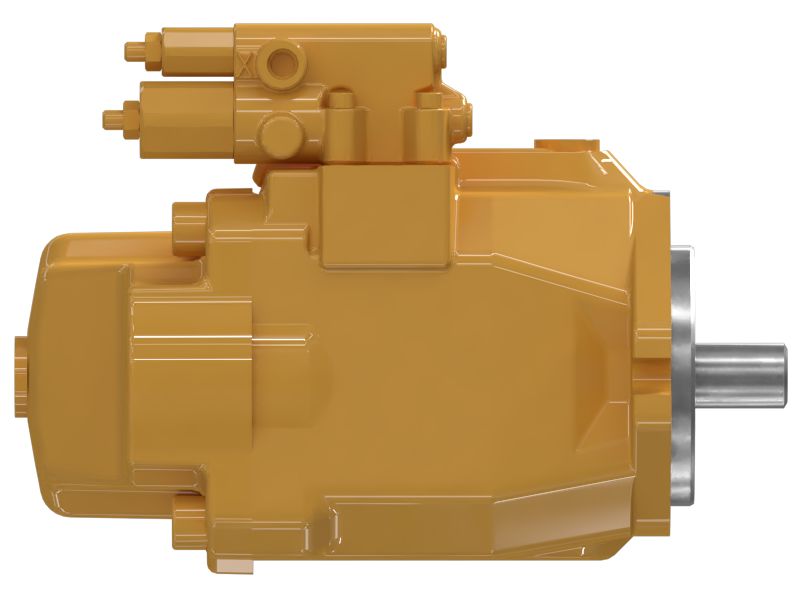

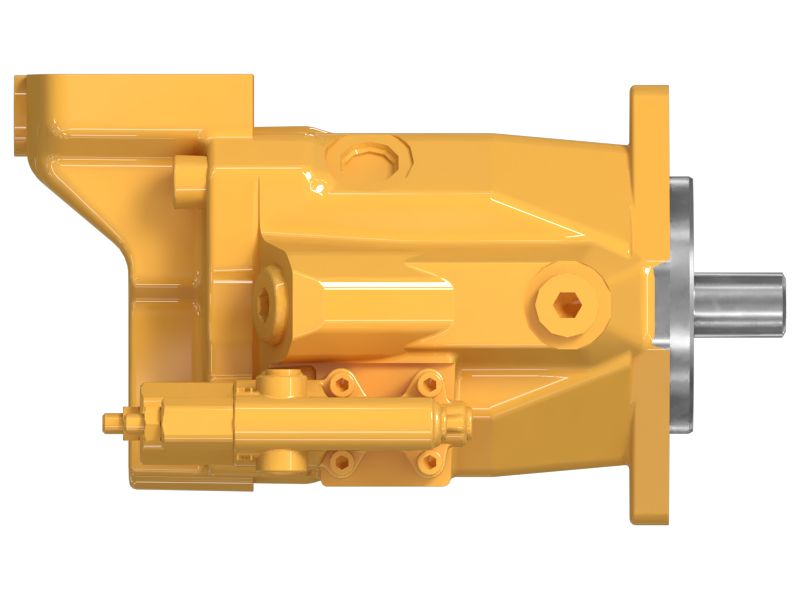

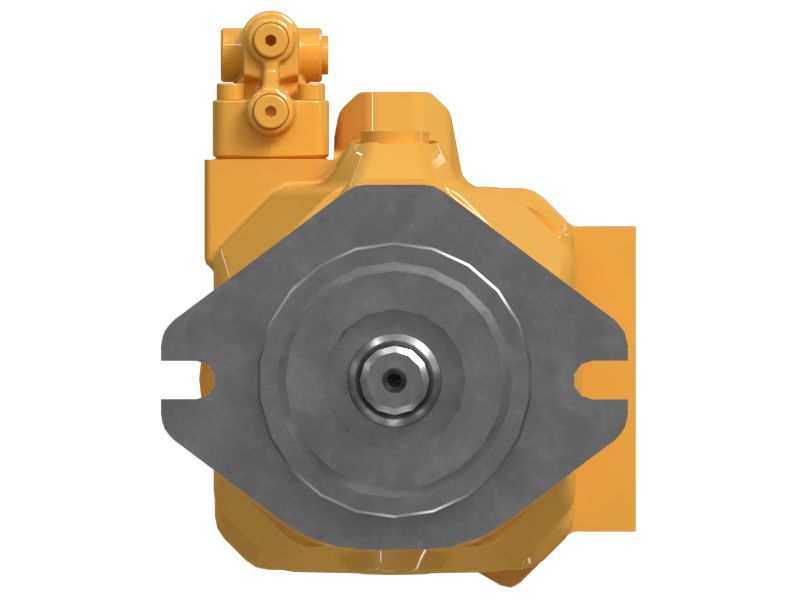

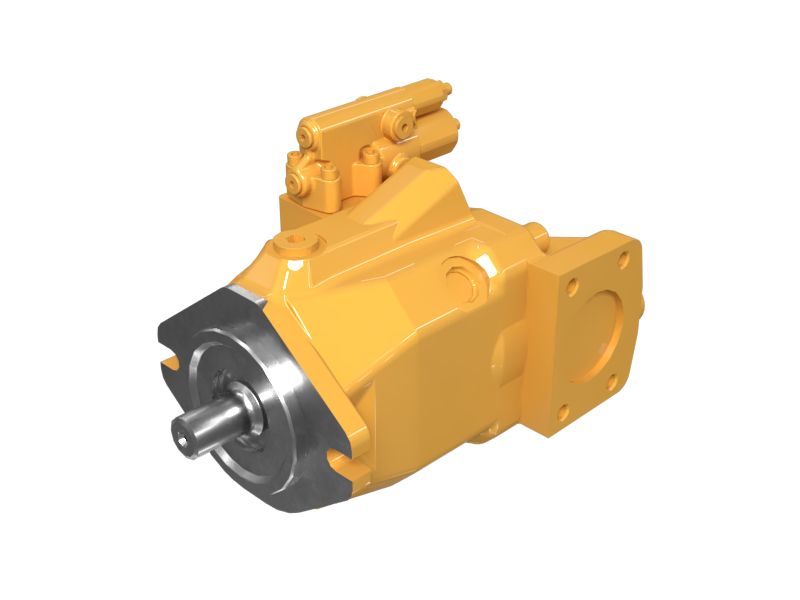

487-6205: Piston Pump Group

Description:
Cat® Hydraulic pumps generate fluid flow within hydraulic systems. Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
Displacement : 60 cc
Pressure Angle : 30°
Spline Pitch : 16/32
Rotation : Clockwise
Standby Pressure : 2800 kpa (406.105 psi)
Pressure Port Thread Size : 15/16-12UN
Suction Port Thread Size : 21/2
Case Drain Port Thread Size : 7/8-14UNF
Pilot Press Port Thread Size : 7/16-20UNF
Measurement Port Thread Size : 3/4-16UNF

Application:
Cat® Hydraulic pumps are designed for specific machine requirements. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 299

• Overall Length (in): 11.77

• Overall Height (mm): 215

• Overall Height (in): 8.46

• Overall Width (mm): 176

• Overall Width (in): 6.93

• Thread Size (in - TPI) (in): 1 5/16-12 UN-2B

• Speed (Rpm): 2200

• Flow Range (GPM): 19.812

• Flow Range (LPM): 75

• Operating Pressure (kPa): 1700

• Operating Pressure (psi): 246.564

• Number of Teeth: 15

• Color: Yellow

• Material: Steel,Carbon Steel

• Weight (kg): 28.8

• Weight (lb): 63.49
