486-5470: ШТОКА

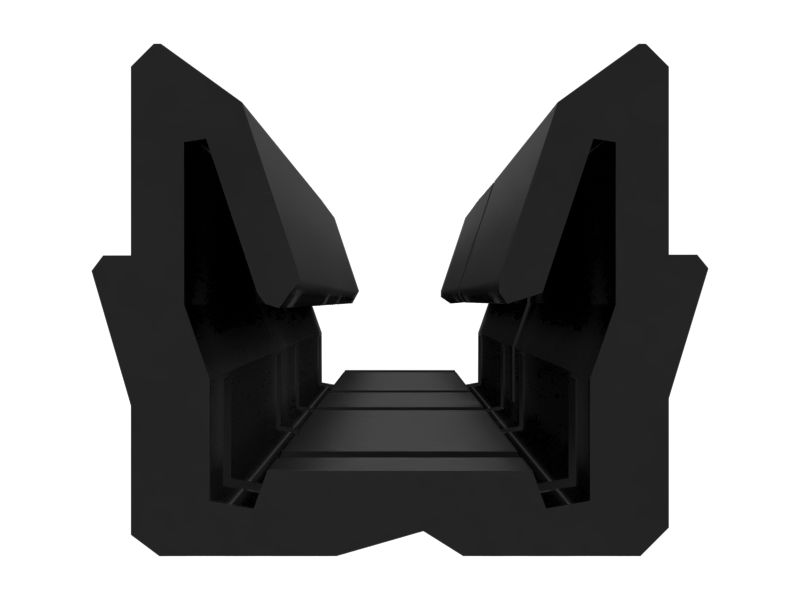

A Cabin Door Window Seal is a rubber seal that is fitted around the perimeter of the Window in the Cabin Door to create a tight seal. It is typically made of durable rubber material and designed to be flexible and compressible so that it can conform to the irregular shape of the Cabin Door Window frame and provide a tight seal.

Attributes:
Has high durability and flexibility.
Adheres firmly between the componentsdue to its elasticity and pressure created.

Applications:
A Cabin Door Window Seal is used to create a strong and durable connection between the Window glass and the frame of the Operator Cabin, mostly used in Cat® 312, 313, 316, 317, 318, 320, 320D, 323, 323D, 325, 326, 330, 333, 335, 336, 336F, 340, 345, 349, 349D, 350, 352, 355, 373, 374, 395, M314, M315, M316, M317, M318, M319, M320, M322, MH3022, MH3024, MH3026, MH3032 and MH3050 Excavators, MH3040, MH3250, and MH3260 Material Handler.

• Cross Section Height (in): 0.35

• Cross Section Height (mm): 9

• Cross Section Width (in): 0.43

• Cross Section Width (mm): 11

• Length (in): 31.36

• Length (mm): 796.7

• Material: Rubber

• Weight (kg): 0.03

• Weight (lb): 0.07
