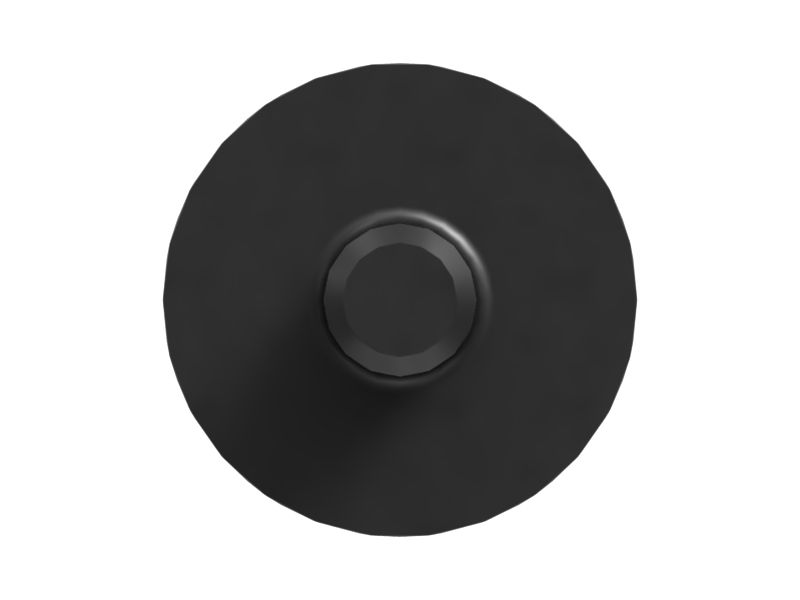

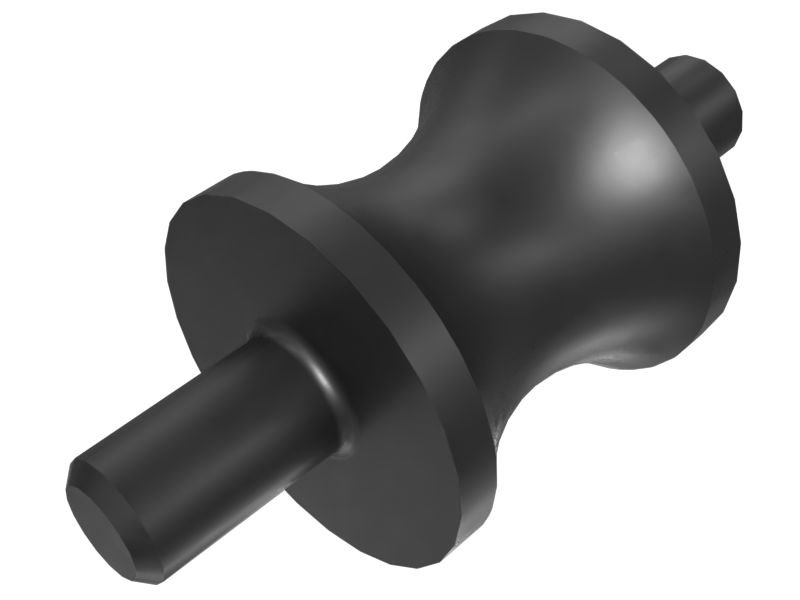

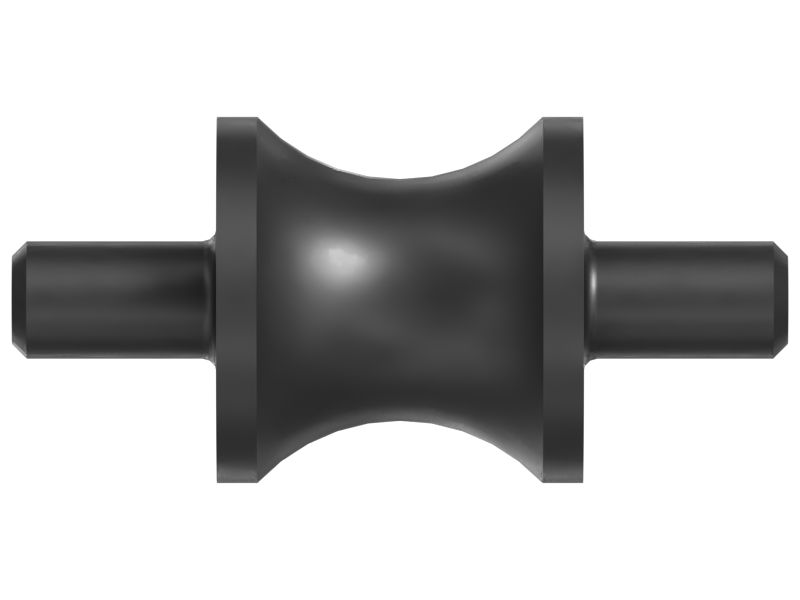

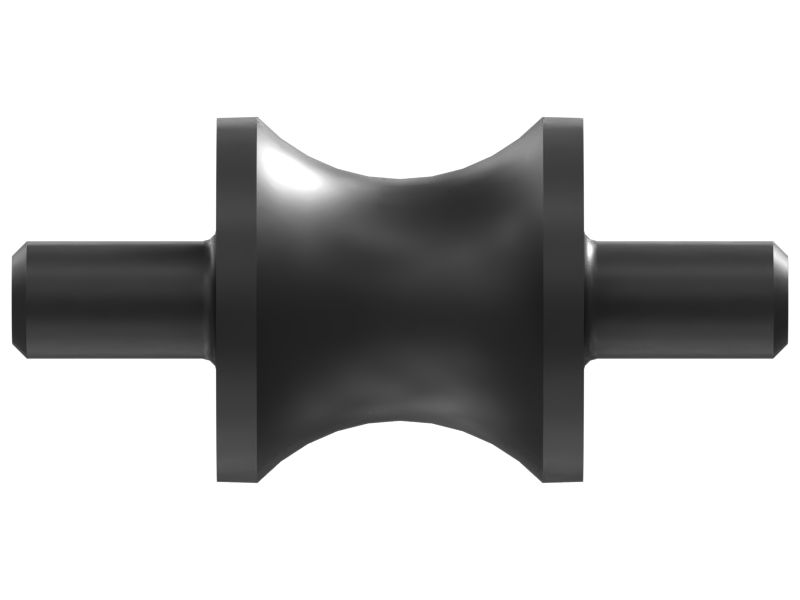

484-3065: Radiator Bracket Mount

A Boom Cylinder controls the extension and retraction of the boom arm. When hydraulic fluid is supplied to one side of the Cylinder, it exerts a force on the piston, causing it to move and extend or retract the rod. This movement of the rod translates into the desired motion of the boom arm, allowing operators to control its position and orientation. The primary purpose is to provide the necessary force and precision to perform tasks such as digging, lifting, and dumping materials.

Attributes:
• Allows for accurate positioning and movement of loads with safe limits
• Provides smooth and stable movement, for applications requiring controlled and consistent motion

Applications:
A Boom Cylinder is used to convert hydraulic energy into mechanical force and motion, allowing precise control over the movement of the boom arm, thereby extending the reach of the attachment from the machine.

• Length (in): 2.09

• Length (mm): 53

• Outer Diameter (in): 0.98

• Outer Diameter (mm): 25

• Thread: M8

• Weight (kg): 0.03

• Weight (lb): 0.07

• Material: Corrosion Preventative Fluid
