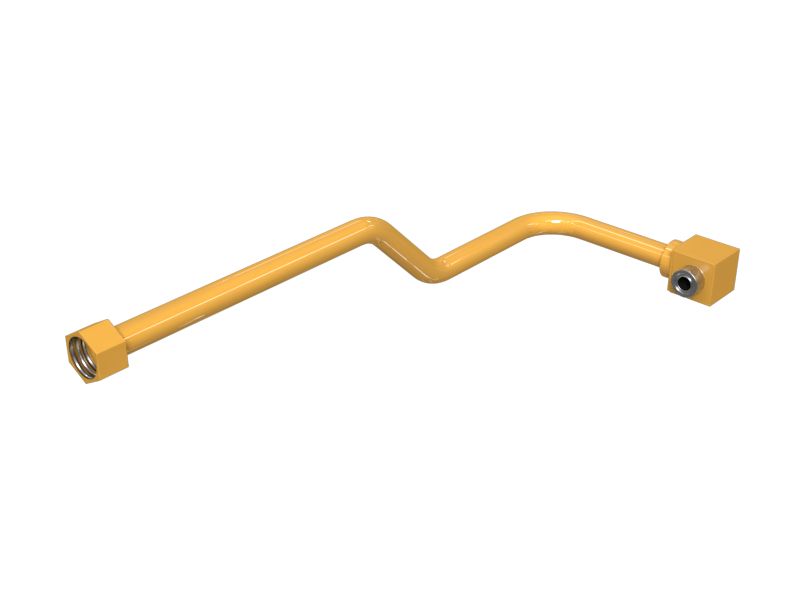

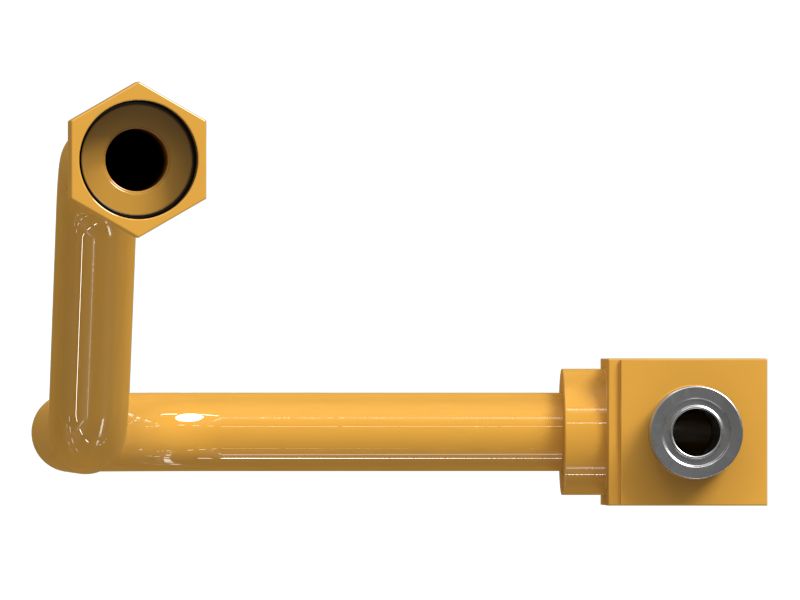

484-0042: Steering Control Lines Tube Assembly

A Steering Control Lines Tube Assembly is responsible for channeling the hydraulic fluid between the hydraulic tank and steering components, allowing for precise control and responsive steering of the machine wheels. The assembly includes an elbow, plug, sleeve, and nut to ensure a secure and leak-free connection. The inner surface of the tube is made smooth to minimize turbulence and reduce back pressure.

Attributes:
• Withstands 132400 kPa relief valve pressure, ensuring consistent steering response
• Ensuring a secure connection that can withstand vibrations and impacts during operating condition

Applications:
A Steering Control Lines Tube Assembly is used to serve as a conduit for the hydraulic fluid flow from the tank to the steering cylinder mounted on the front frame of the machine ensuring precise steering control.

• Outer Diameter (mm): 25

• Outer Diameter (in): 1

• Approximate Overall Length (mm): 814

• Material: Steel,Carbon Steel,Alloy Mixed
