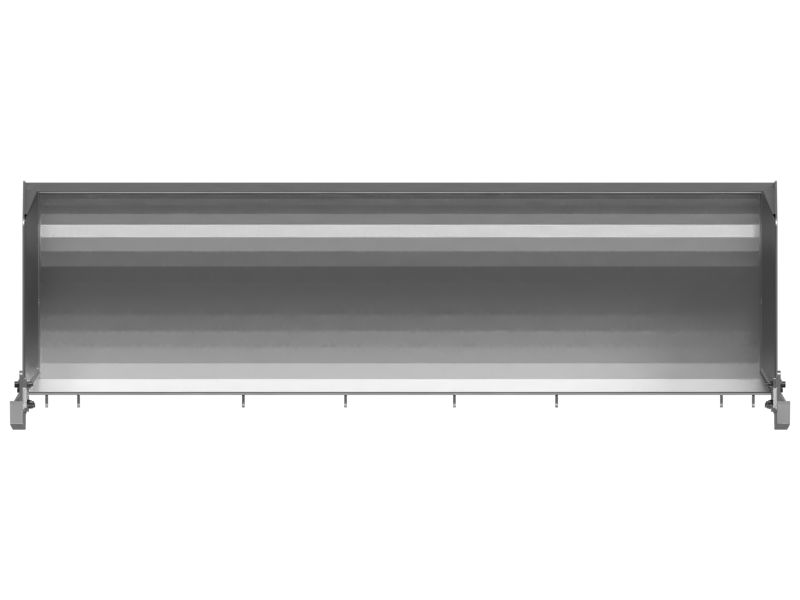

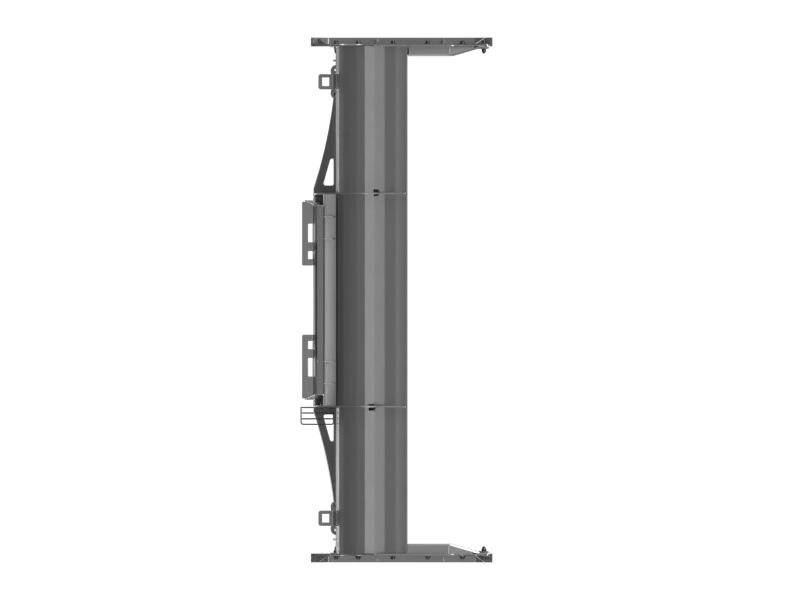

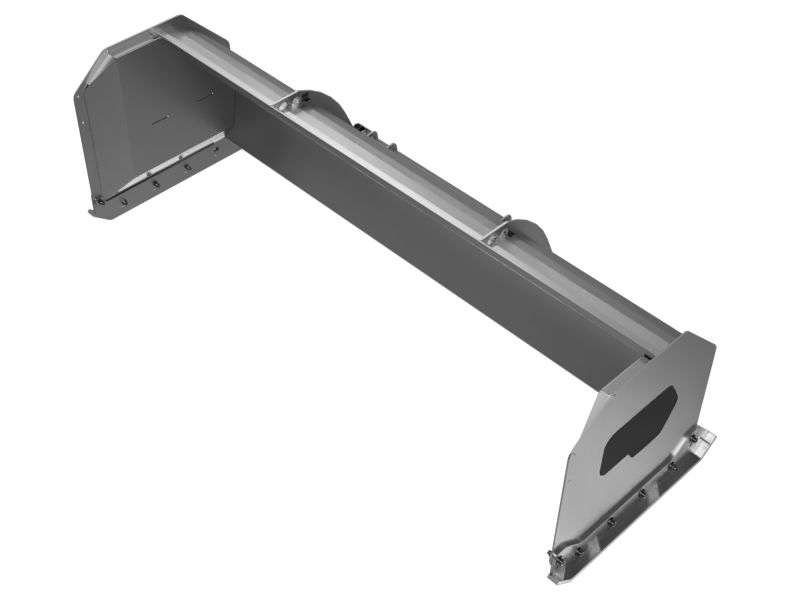

483-7058: Blade Attachment Frame

An Auxiliary Hydraulic Lines Mounting Bracket is used to hold and organize auxiliary hydraulic lines on equipment. This bracket ensures that hydraulic lines are securely fastened and properly routed, preventing them from moving freely, which leads to wear, abrasion, and damage during operation. By maintaining a structured arrangement of the hydraulic lines, the bracket helps reduce the risk of leaks, line failure, and hydraulic system inefficiencies.

Attributes:
• Prevents movement and vibration of hydraulic lines.
• Facilitates proper alignment of hydraulic lines during operation.
• Ensures clear and organized hydraulic line routing.

Applications:
An Auxiliary Hydraulic Lines Mounting Bracket secures the hydraulic lines, preventing them from excessive movement and wear, and ensures that the hydraulic system operates smoothly and efficiently.

• Overall Height (in): 39.13

• Overall Height (mm): 994

• Overall Length (in): 124.5

• Overall Length (mm): 3162.3

• Overall Width (in): 44.98

• Overall Width (mm): 1142.5

• Weight (kg): 396.56

• Weight (lb): 874.26
