483-6729: ПЛАСТИНА

Description:
A Clamp Mounting Plate supports the Hose Clamp and provides support to the hoses preventing bending or damage. Plates can be made from various types of steel, including carbon steel, stainless steel, and alloy steel. The thickness of the plate can vary depending on the weight and size of the equipment it needs to support. Plates are typically drilled or punched with holes to accommodate bolts, screws, or other fasteners used to secure the equipment. Some plates may also be welded to the equipment to provide additional stability and support.

Attributes:

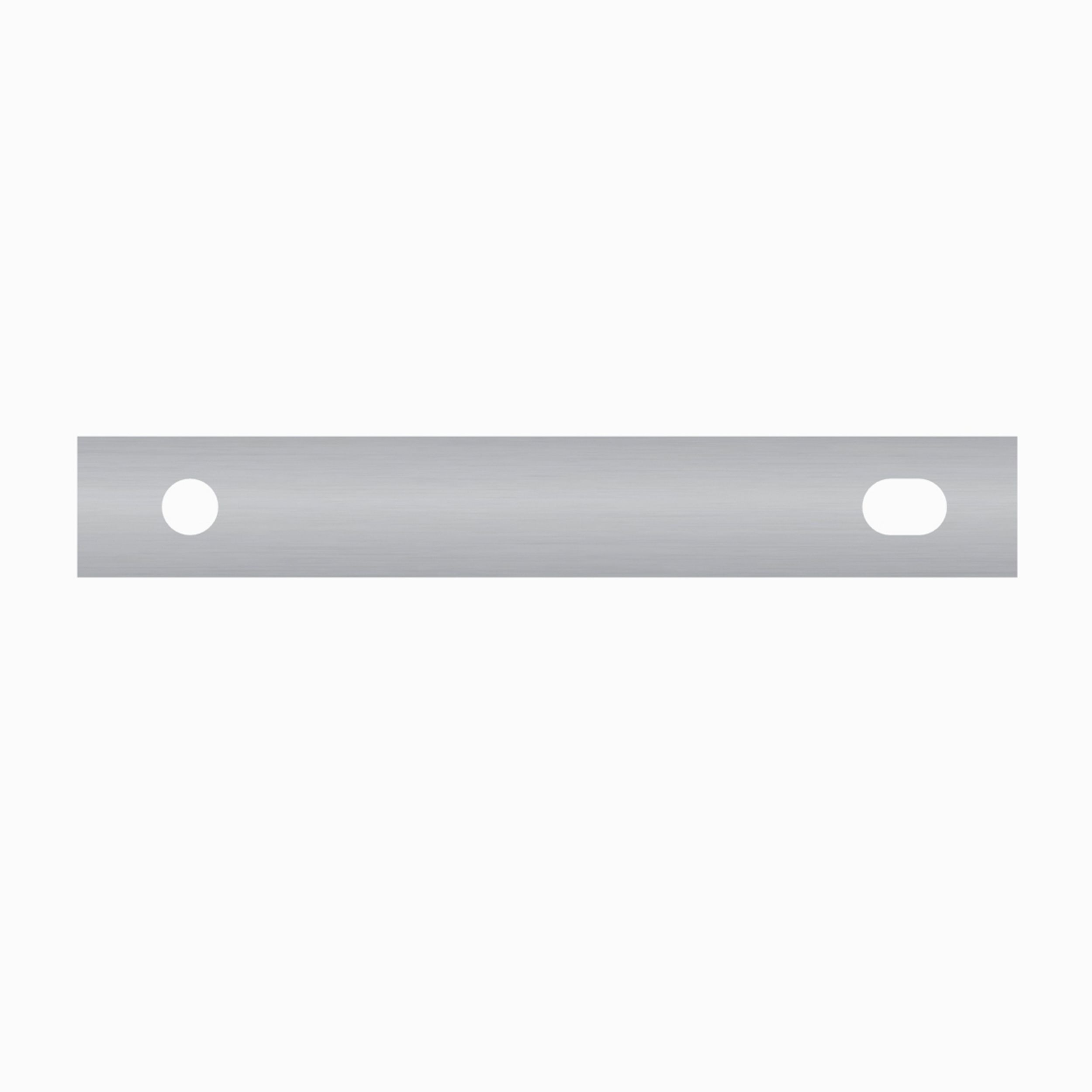

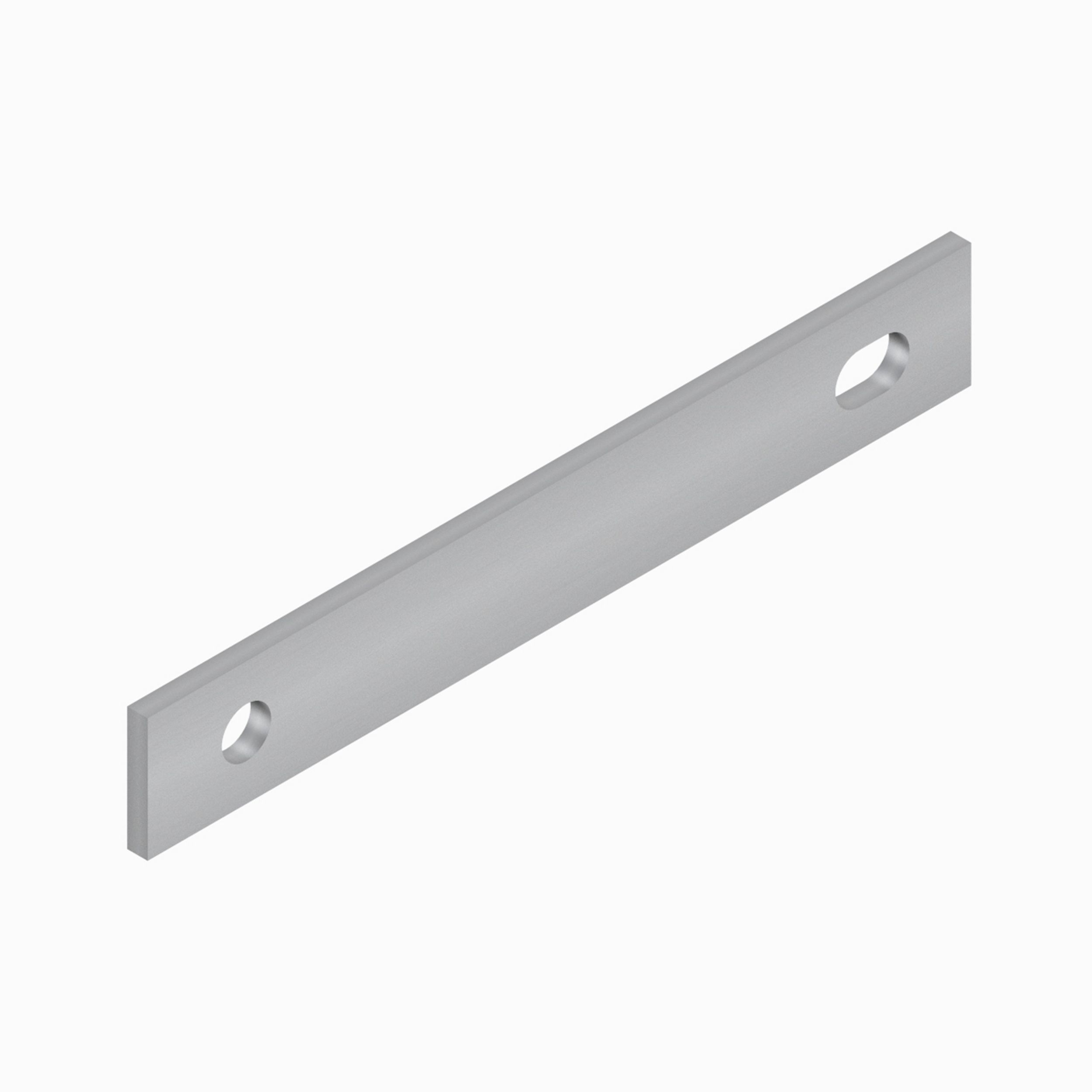

• Provided with a hole of diameter 12mm and slot of size 12 x 18mm to fit the fastener of size M10.
• Withstands high-impact loads and stresses.

Applications:
A Clamp Mounting Plate is used to mount the Hose Clamp to the Boom hydraulic hose line attachments, mostly used in CAT 42, 424, 426, 424B, 424B2, 424B HD, and 426F2 Backhoe Loaders.

• Length (in): 7.87

• Length (mm): 200

• Material: Steel,Carbon Steel

• Thickness (in): 0.2

• Thickness (mm): 5

• Weight (kg): 0.22

• Weight (lb): 0.49

• Width (in): 1.18

• Width (mm): 30
