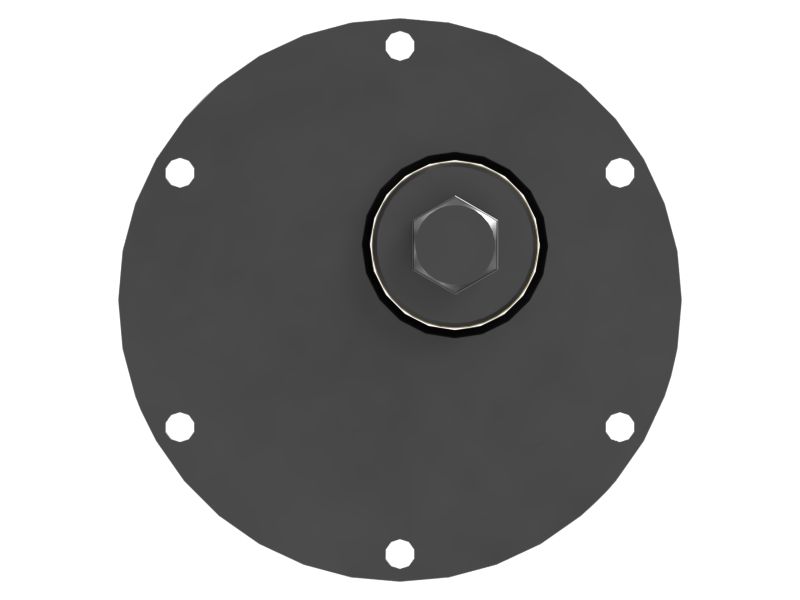

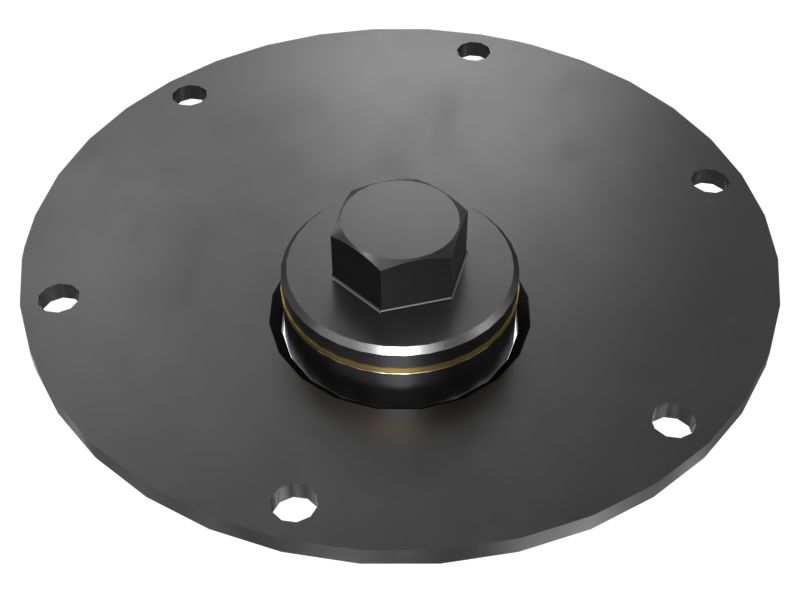

480-7274: Hydraulic Tank Cover

The Hydraulic Tank Cover simplifies maintenance by enabling the connection of a kidney looping cart to the hydraulic tank for cleaning purposes. When attached, it facilitates the transfer of hydraulic fluid between the tank and the cart, allowing contaminants to be filtered out. The quick-disconnect feature ensures easy and efficient hookup, reducing downtime during filtration processes. Its design also allows for adjustments to the suction and return standpipes, ensuring adaptability based on the tank’s depth.

Attributes:
• Enables easy connection between the hydraulic tank and a filtration cart.
• Features a quick-disconnect function for faster maintenance.
• Allows for the adjustment of suction and return pipes.
• Optimized for efficient hydraulic fluid transfer.

Applications:
The Hydraulic Tank Cover connects the oil filter cart to the hydraulic tank on equipment like excavators, installed on the hydraulic tank and provides quick access for maintenance.

• Weight (kg): 1.956

• Weight (lb): 4.312

• Outer Diameter (mm): 205

• Outer Diameter (in): 8.071

• Overall Width (mm): 62.5

• Overall Width (in): 2.461

• Material: Low Alloy Steel,Nitrile / NBR / HNBR / XNBR Rubbe
