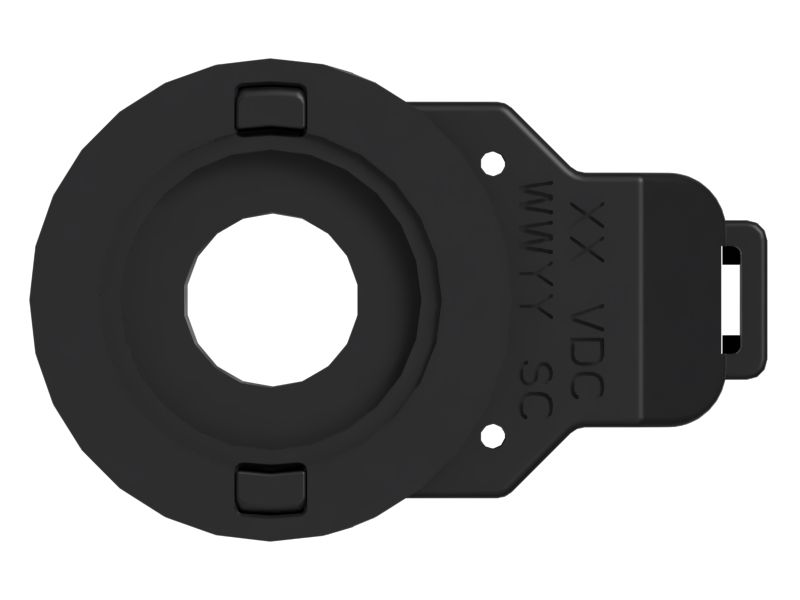

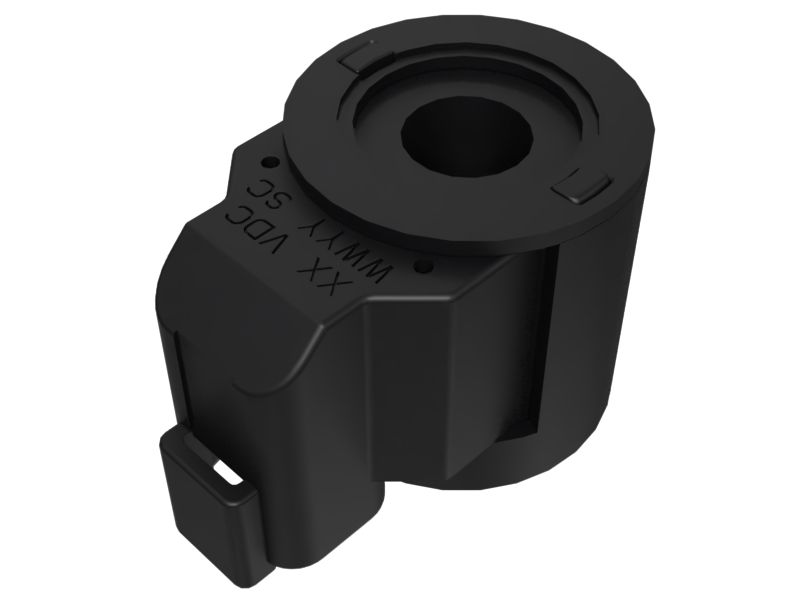

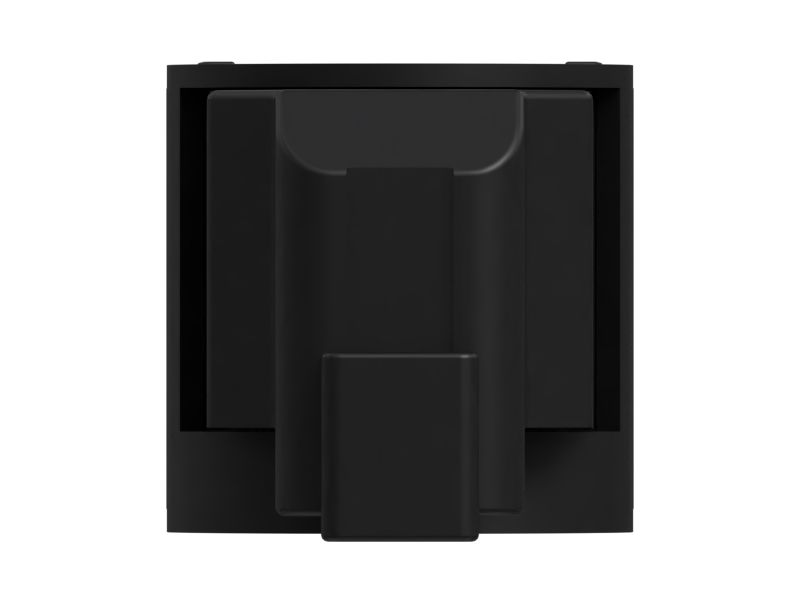

479-8736: 24 Volts Direct Current Solenoid Coil

The Solenoid Coil operates on the principle of electromagnetism to generate controlled movement. When an electrical current passes through the coil, it produces a magnetic field, attracting a plunger and armature within the coil's core. This action translates electrical signals into mechanical force, enabling the activation of equipment functions like valve operation and actuator control.

Attributes:
• 8-series coil.
• Connector Integral DT.
• Maximum clamping voltage 64.8 volts.
• Maximum peak pulse current 9.3 ampere.
• Reverse standoff voltage 40.2 volts.
• Maximum reverse leakage 5 microampere.
• Resilient against vibration and shock.
• Break down voltage maximum is 49.4 volts and the minimum is 44.7 volts.

Applications:
The Solenoid Coil is positioned to activate specific components required for hydraulic solenoid control valve operation and converting electrical signals into mechanical motion, enabling accurate control over valves and actuators to equipment functionality.

• Material: Polyamide Plastic
