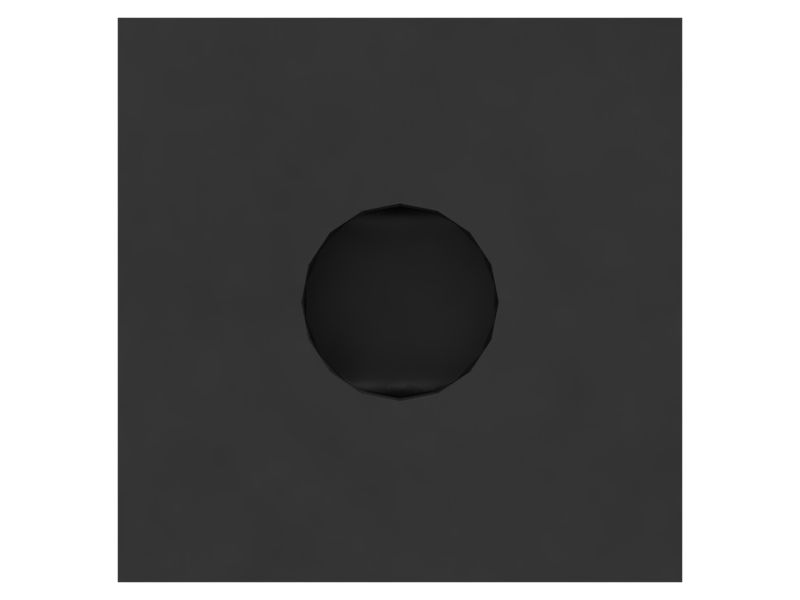

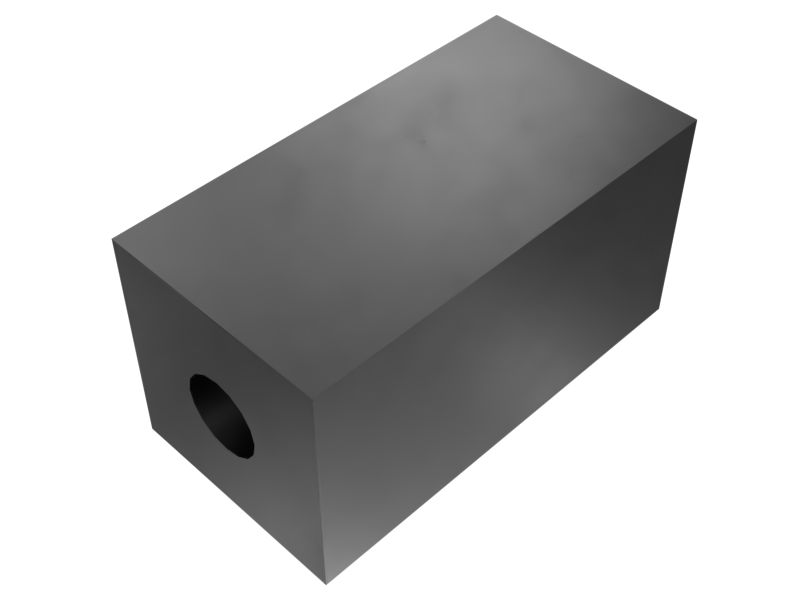

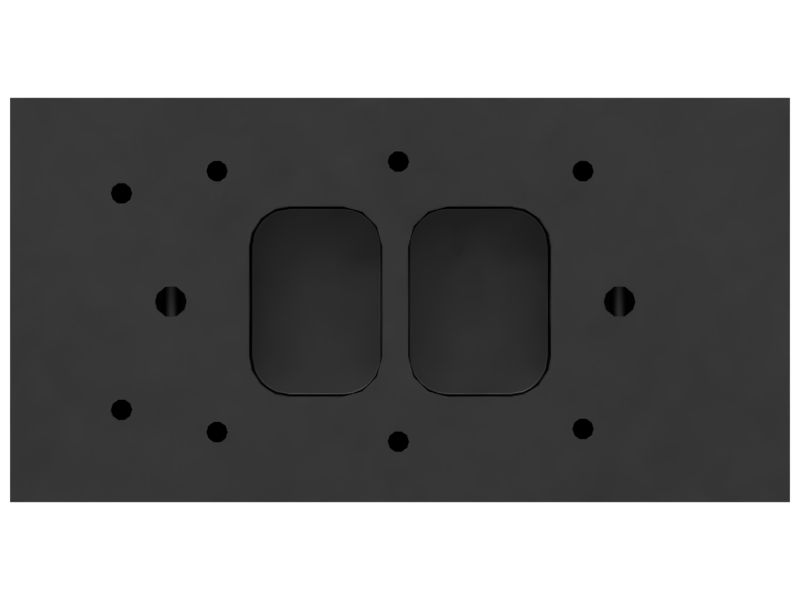

479-5373: Transmission Flow Test Block

The Transmission Flow Test Block is a diagnostic tool used to evaluate the flow rate of hydraulic fluid within the transmission system. By connecting this test block to the transmission, operators can measure the fluid flow under different operating conditions to assess the system's performance and identify potential issues.

Attributes:
• Facilitates accurate testing of transmission systems.
• Provides a secure connection for testing equipment.
• Minimizes the potential for damage during testing.

Applications:
The Transmission Flow Test Block is used within the hydraulic circuit of a transmission system in the equipment, facilitating the measurement of fluid flow during diagnostics.

• Length (mm): 245

• Length (in): 9.646

• Width (mm): 127

• Width (in): 5

• Height (mm): 127

• Height (in): 5

• Hole Size (mm): 10

• Hole Size (in): 0.394

• Internal Thread: 1-1/12"-11-1/2 NPTF , 5/16"-18-2B

• Material: Steel,Coating Mixed

• Weight (kg): 24.27

• Weight (lb): 53.506
