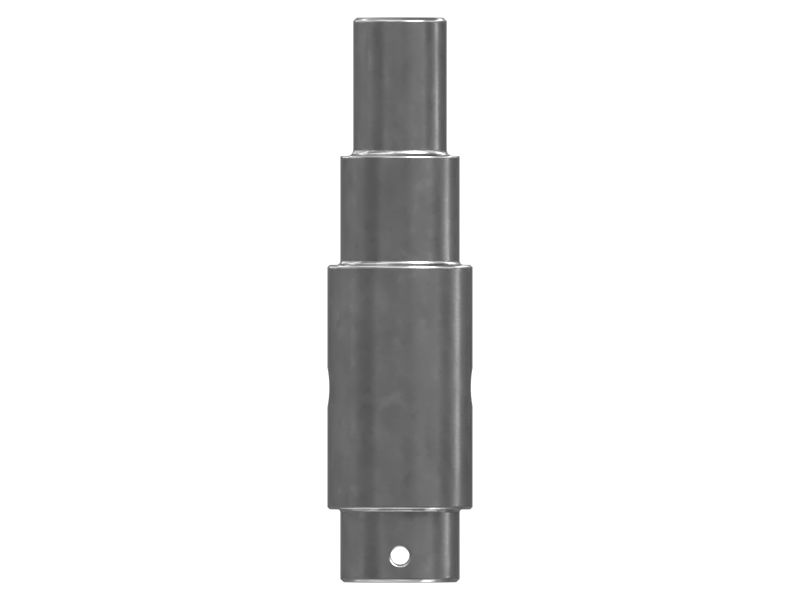

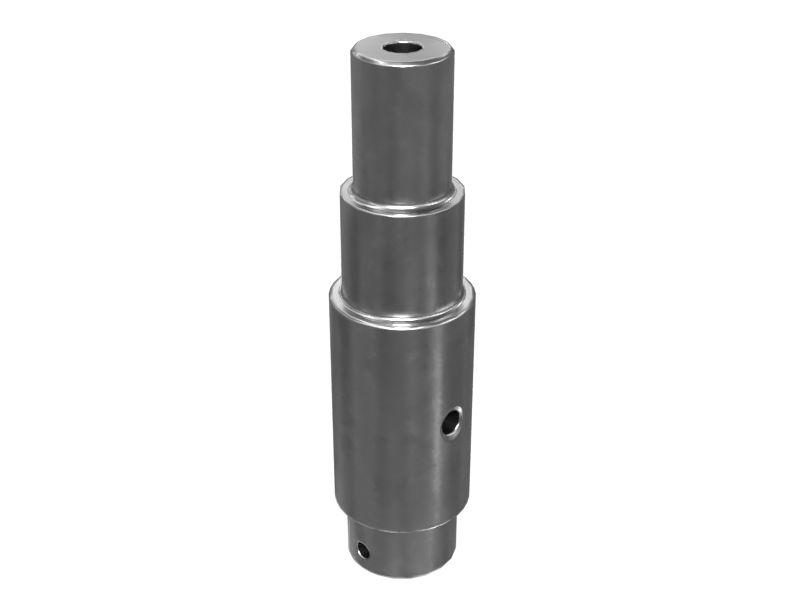

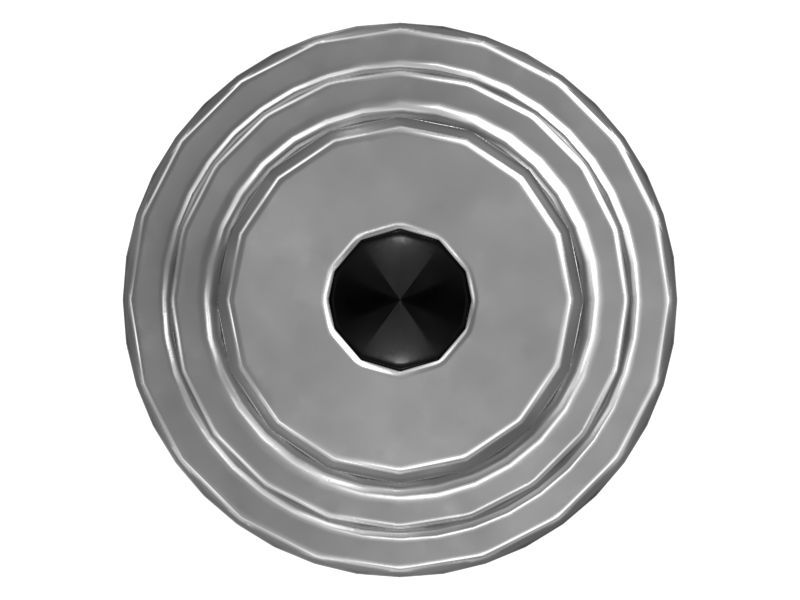

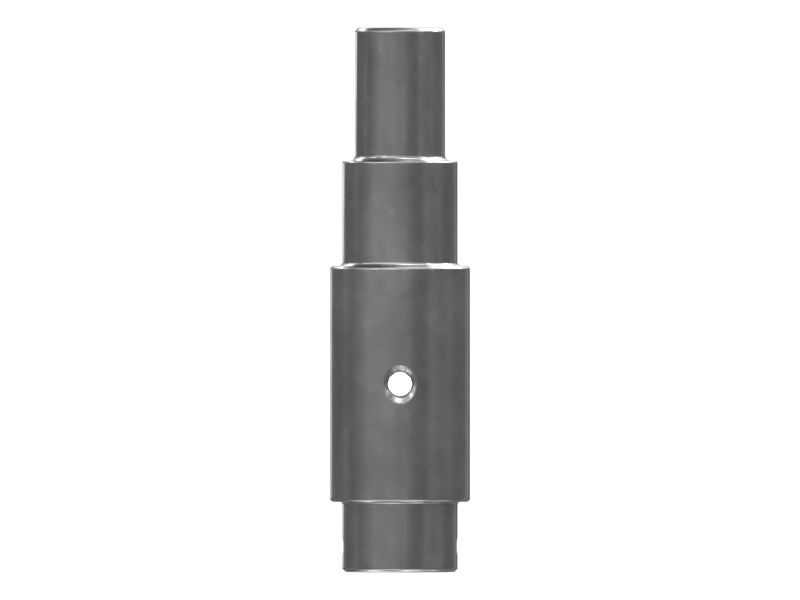

475-5381: Pin Anchor

Description:
Cat® Anchor Steel Pin rigidly attached to the backing plate of drum brakes. Return springs are attached to the anchor pin and to the brake shoes to hold the shoes against the anchor pin in a non-applied position. In an applied position, it prevents the shoes from rotating with the drums. Cat® Pin offer simple repair and replacement of system components for cat heavy duty machines.

Application:
Cat® Anchor Steel Pin are assembled to brake shoes to retain a component or assembly. Consult your owner's manual or contact your local Cat Dealer for more information.

• Outer Diameter (mm): 35

• Outer Diameter (in): 1.38

• Length (mm): 135.6

• Length (in): 5.34

• Thread Size (in - TPI) (in): 7/8 - 14 UNF - 2A

• Countersink Diameter (mm): 9.652

• Countersink Diameter (in): 0.38

• Material: Carbon Steel

• Weight (kg): 0.703

• Weight (lb): 1.55
