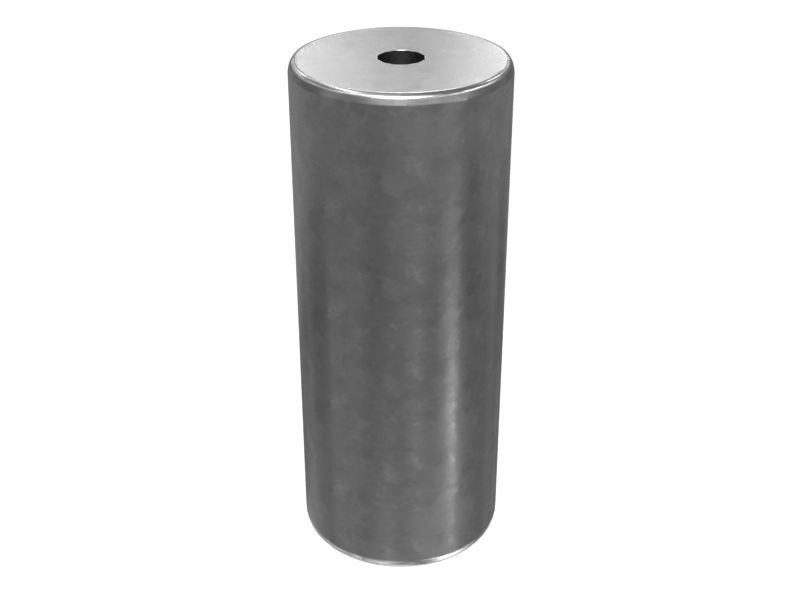

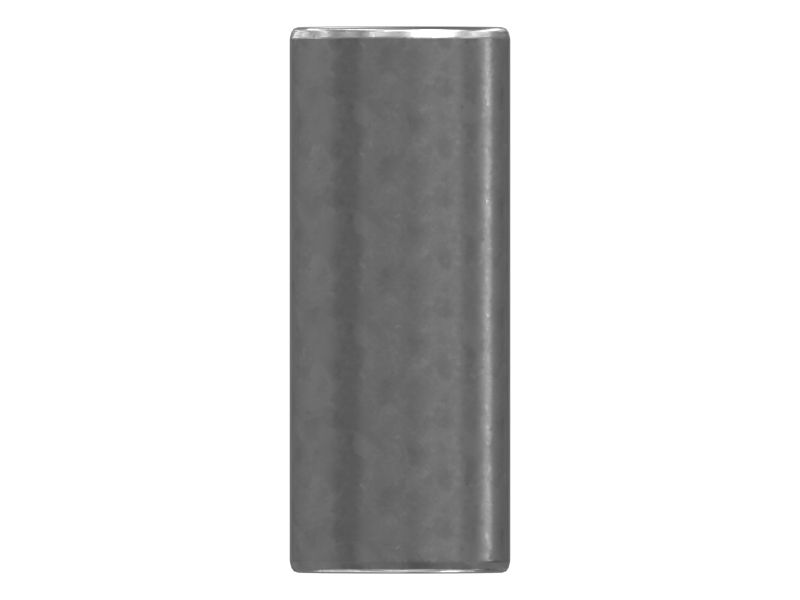

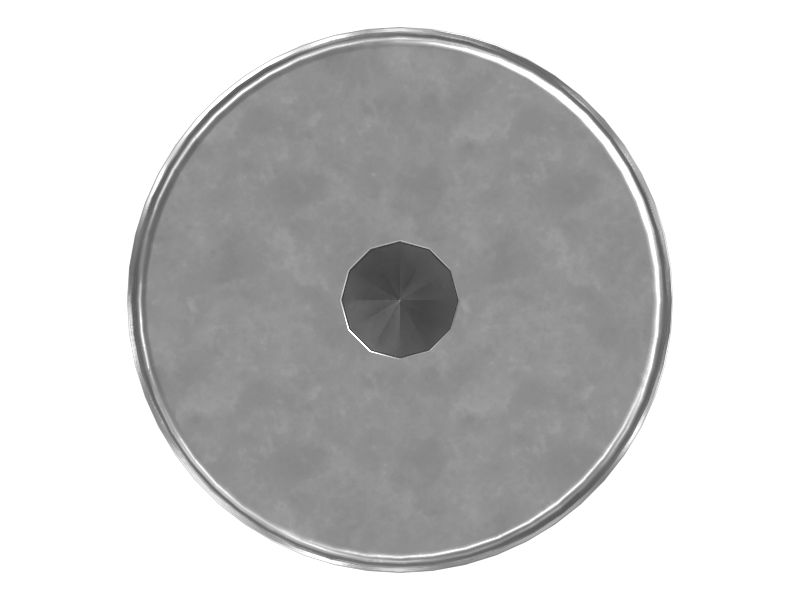

475-3518: 200mm Outer Diameter Dowel Pin

A Dowel Pin has a cylindrical body with a uniform diameter along its length and pre-drilled holes in both ends called Blind Holes. Its primary function is to provide precise alignment between components. It is achieved through interference fit which creates friction between the Pin and the surrounding component, where the Dowel Pin is inserted into the corresponding holes drilled into the components to be joined.

Attributes:
• Provided with a chamfer angle of 15 degrees to reduce the risk of snagging on the edges of the hole
• Manufactured to precise specifications and are built for durability, and reliability

Applications:
A Dowel Pin is used in boom mounting to provide accurate positioning between the mating components and to prevent the unintended movement or dislodgement of the pin ensuring the proper alignment and functionality of the assembly.

• Material: Low Alloy Steel
