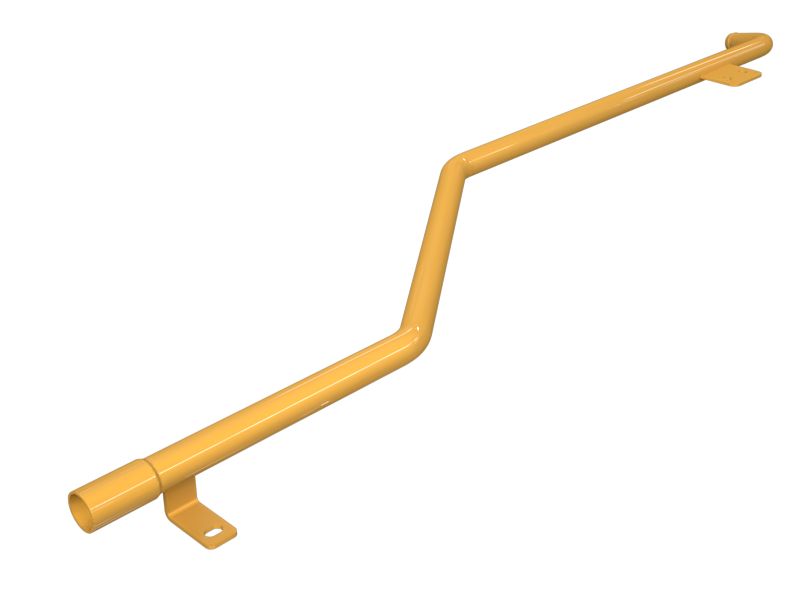

473-9957: ТРУБКА В СБОРЕ

Description:
Powertrain oil filler tube assemblies are held to the highest standards of quality, reliability & rigid in nature. Designed and engineered for unique applications. Fabricated specifically to withstand application pressure which ensures long life and proper machine functionality. Manufactured to exacting tolerances to ensure proper alignment with existing systems.

Attributes:
• Weldment design
• Must withstand 100 kPa relief valve pressure
• Plating topcated

Applications:
Powertrain oil filler tube assemblies are designed to use in the powertrain system to fill the transmission oil in the powertrain and drivetrain for proper machine functionality and are widely used in CAT 426 F2, 424, and 426 Backhoe loaders.

• Overall Height (in): 47.83

• Outer Diameter (mm): 25

• Overall Height (mm): 1215

• Outer Diameter (in): 1

• Overall Length (in): 11.3

• Approximate Overall Length (mm): 1329

• Overall Length (mm): 287.1

• Material: STAINLESS STEEL,Alloy Zinc,Alloy Steel

• Weight (kg): 1.04

• Weight (lb): 2.29

• Working Pressure (kPa): 1500

• Working Pressure (psi): 217.56
