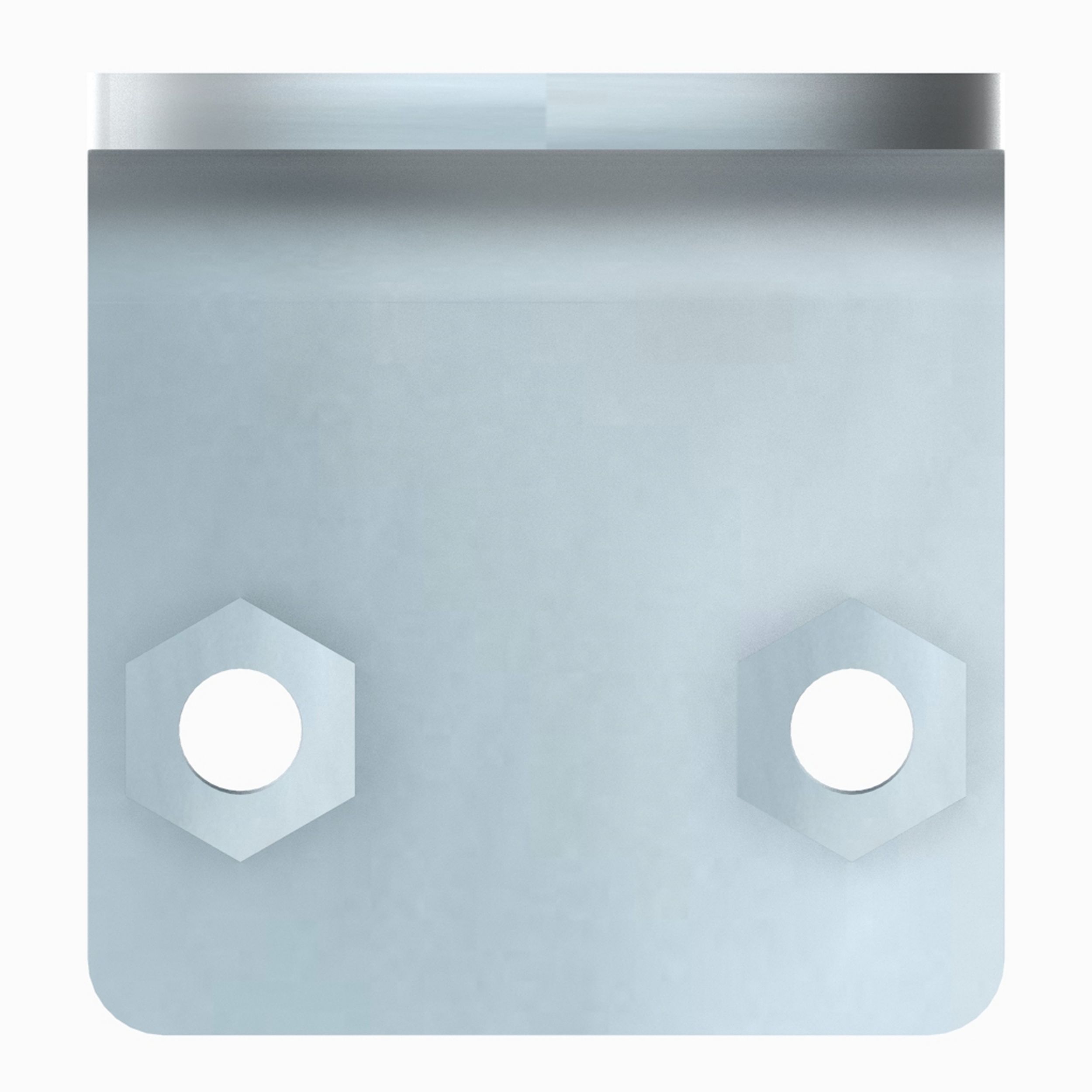

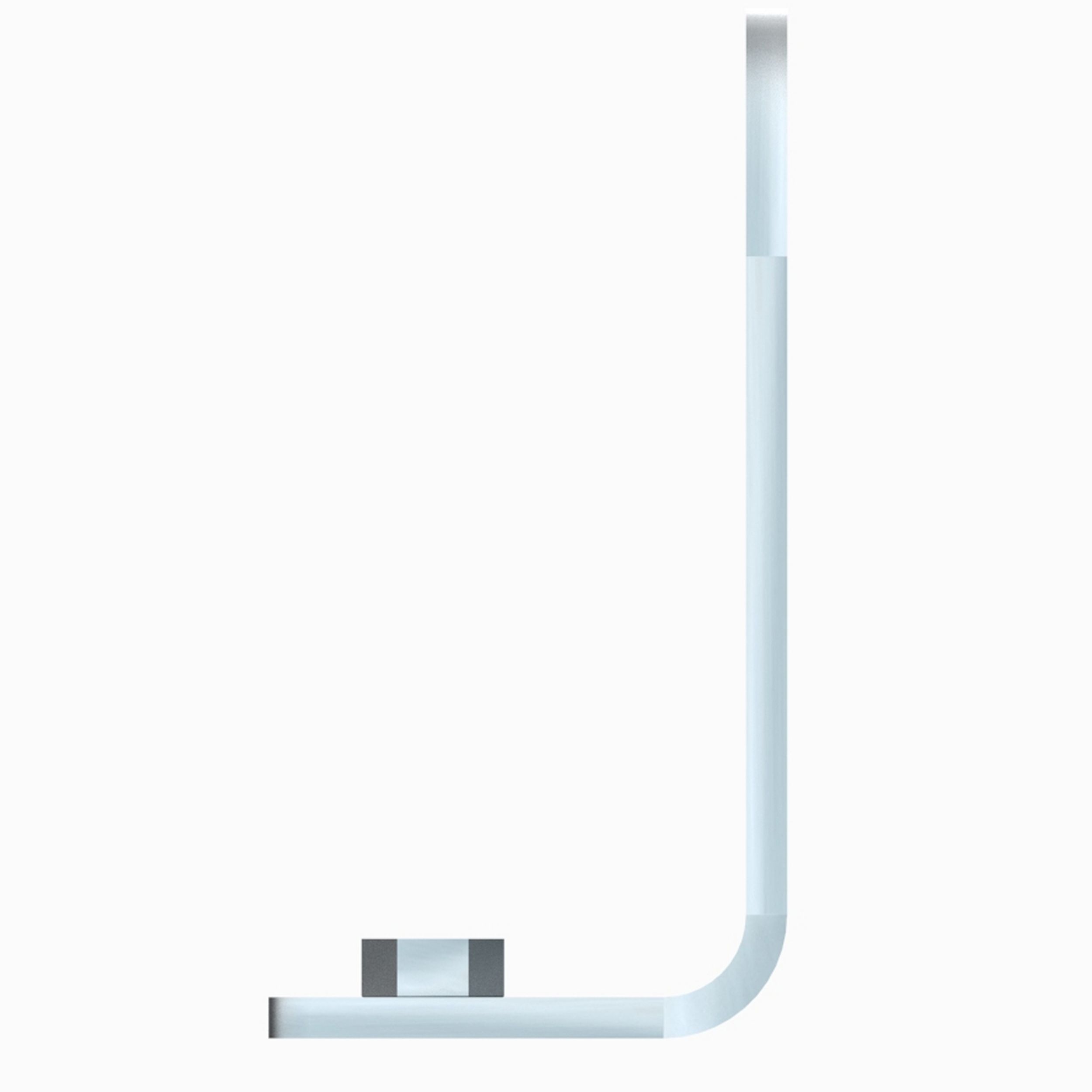

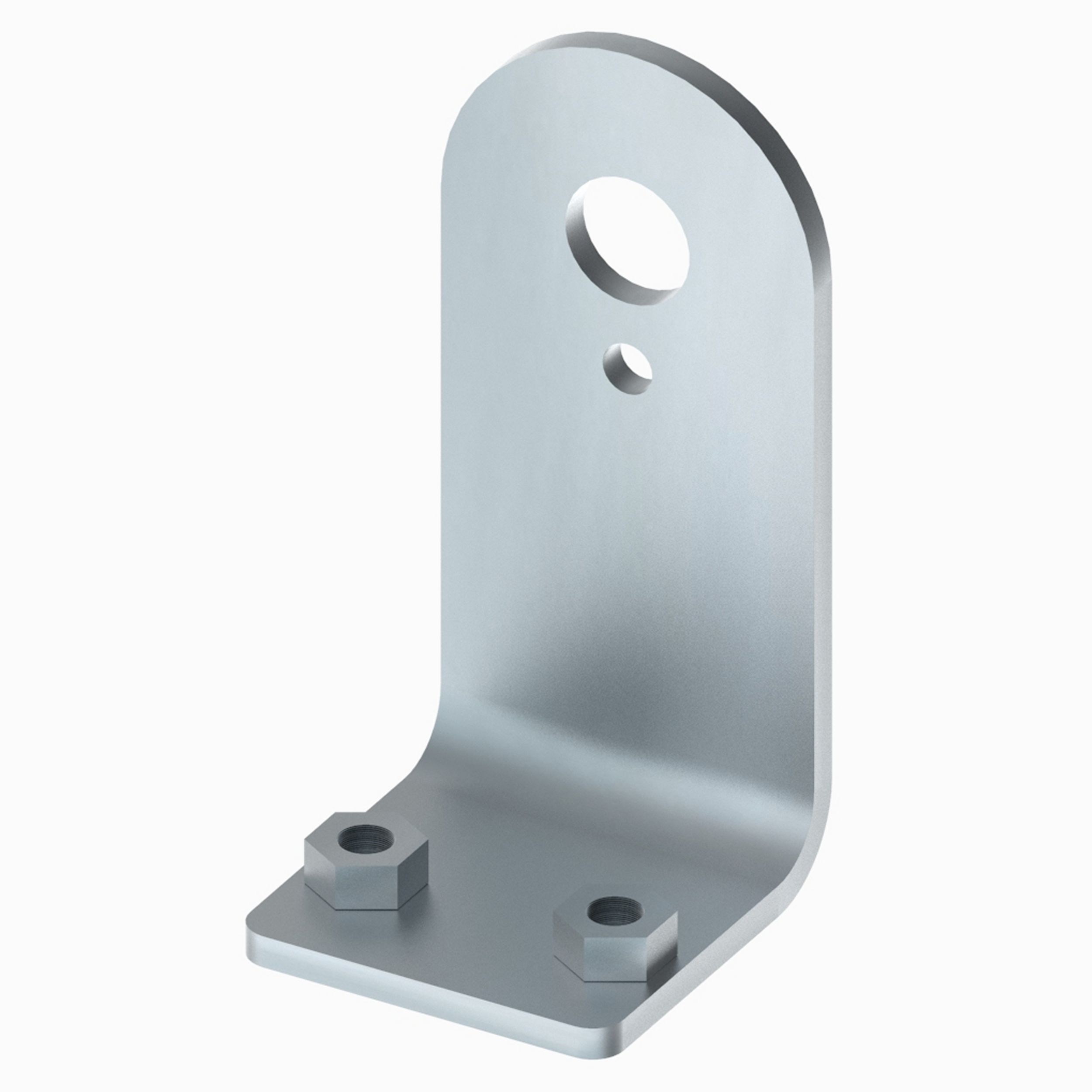

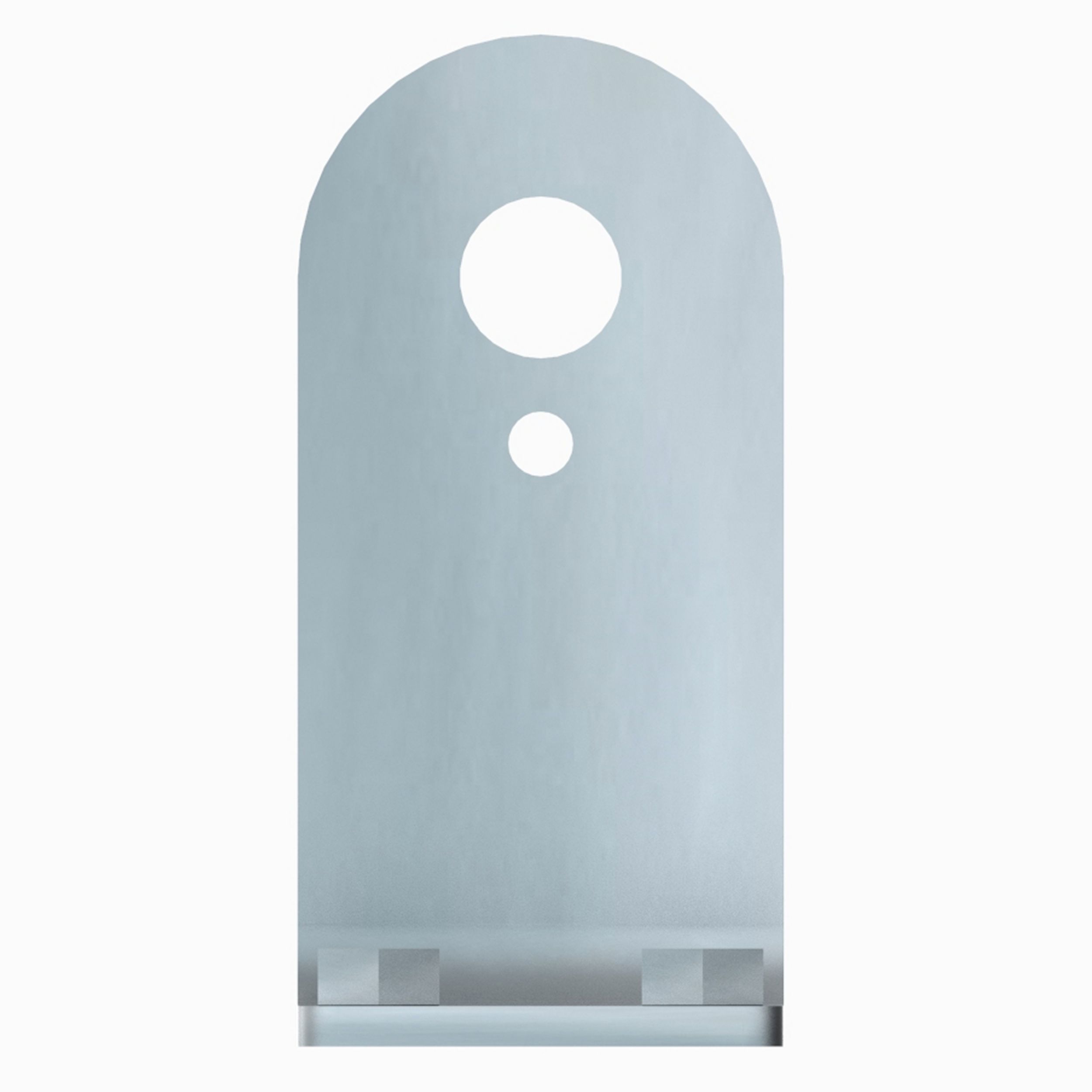

473-9953: ПЛАСТИНА В СБОРЕ

Description:
A Battery Switch Support Plate is a component used to secure the battery switch in place. The plates are typically made from hard materials such as steel, which provides a sturdy foundation for the switch and is used as a conjunction to prevent flexing or breaking under load, hence lowering the chance of damage or failure.

Attributes:
• Designed with precise specifications for mounting the battery switch on the plate.
• Provided with 2 mounting holes to fit fastener of size M8.

Applications:
A Battery Switch Support Plate is used to securely hold the battery switch, mostly used in the CAT 226D3, 232D3, 249D3, 239D3 Skid Steer Loaders and 770G, 772G, 773D, 773E, 777D Trucks and 770G, 772G, 773E, 777E Quarry Trucks and 773 GC, 777E, 777 Off-Highway Trucks and 313D2, 320D2 Gc Excavatorsand C13, C15, C18, C32, C32 Genset, C18 Gen SE, 3516B GEN, 3512B GENS Generator Set and C13 GENSET, C15 Gen SE Gen Set Engine, and Backhoe Loaders.

• Height (in): 2.36

• Height (mm): 60

• Length (in): 4.92

• Length (mm): 125

• Material: Steel,Carbon Steel,Alloy Mixed

• Thickness (in): 0.19

• Thickness (mm): 5

• Weight (kg): 0.19

• Weight (lb): 0.42

• Width (in): 2.48

• Width (mm): 63
