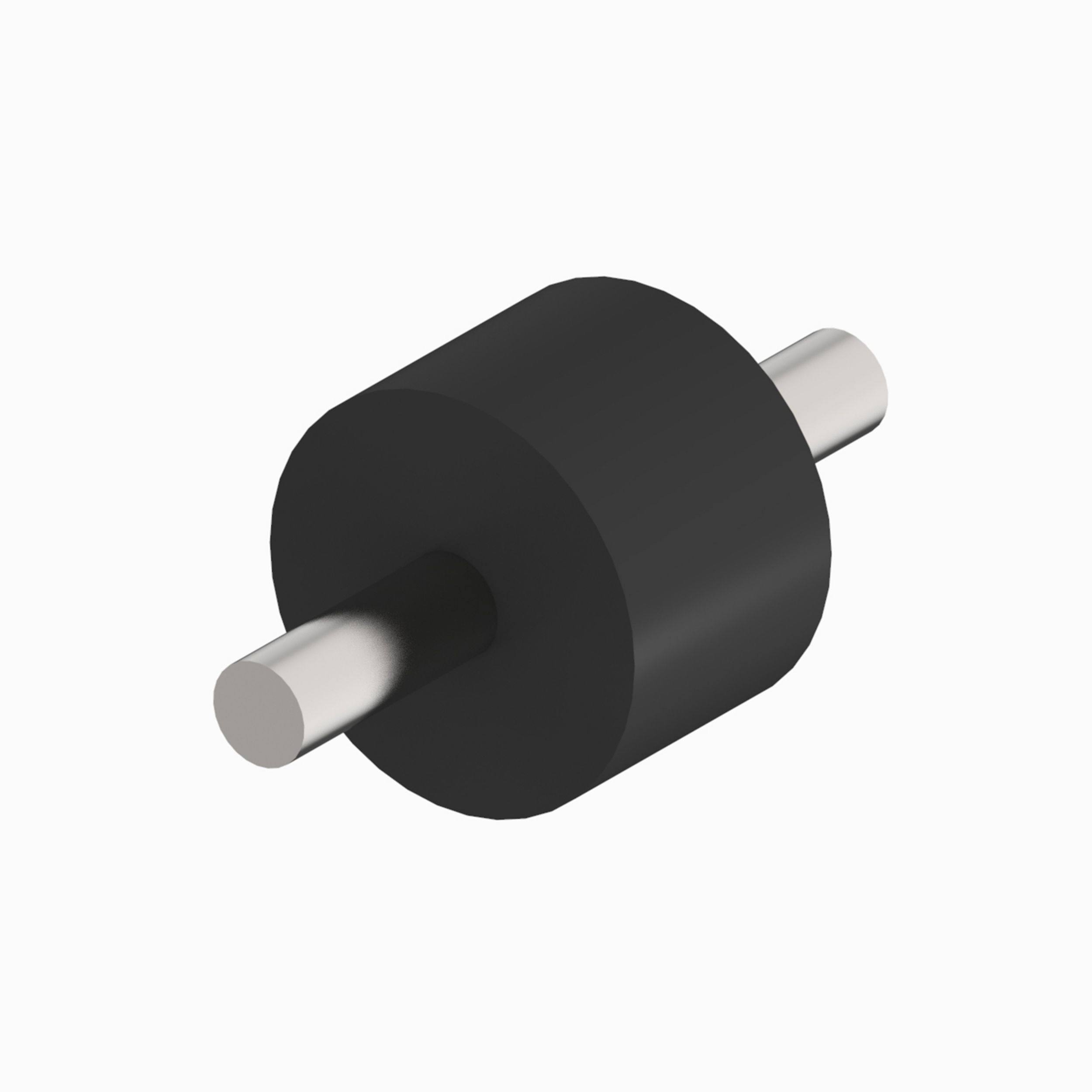

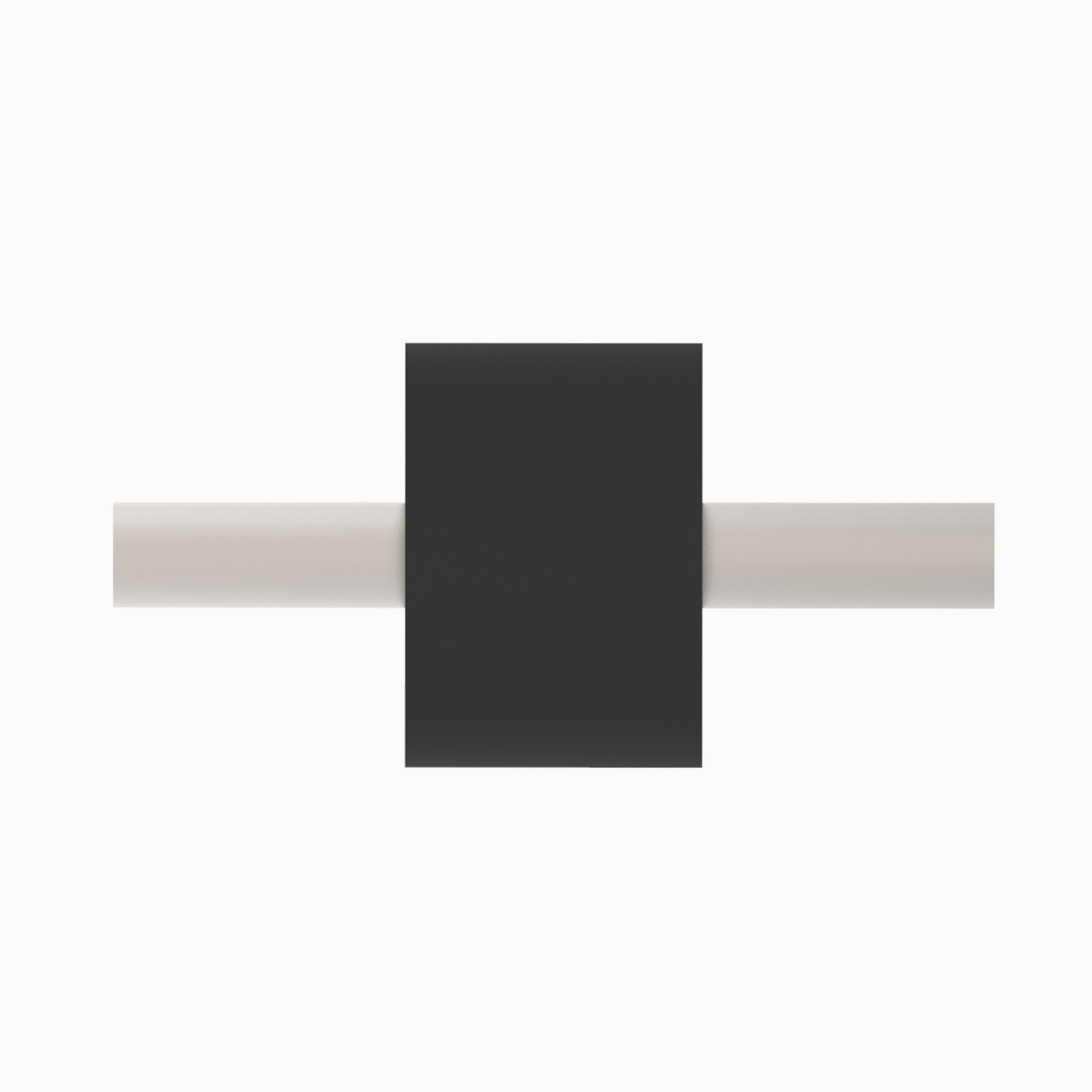

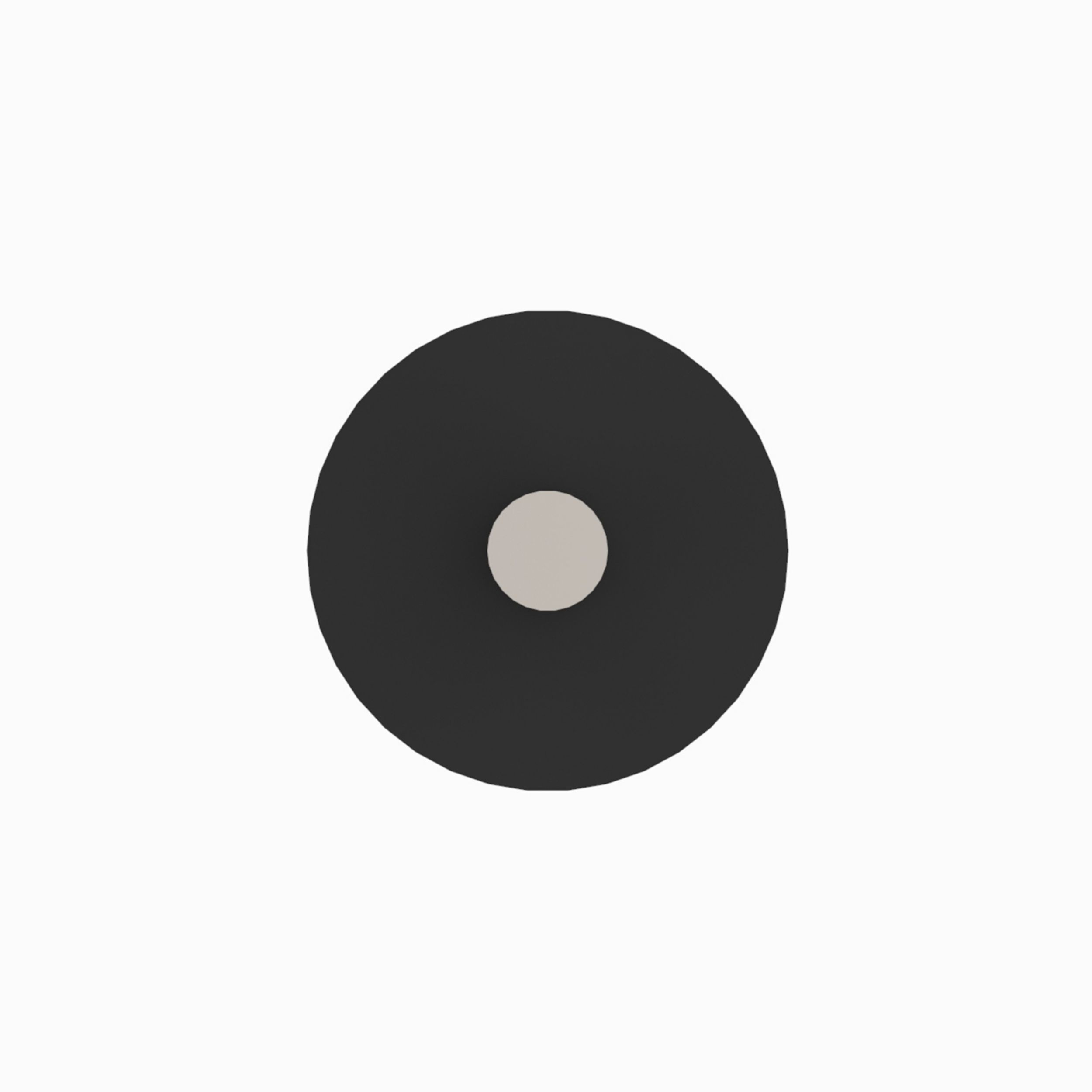

472-9158: Mount Assembly

Description:
Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).Sandwich mounts feature integrated fasteners on both ends for easy installation (two threaded studs, two threaded holes, or one stud and one hole).
Cat® Mounting Systems are designed to reduce stress and strain on mounted components to increase their durability and performance life, and to contribute to operator comfort. The entire system (mount design, material selection, placement, hardware, etc.) is optimized and validated to meet specific application requirements. Sandwich Mounts are an economical option that perform well in light-duty applications. They offer excellent radial isolation and can accommodate high radial displacement.

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Outside Diameter (mm): 40

• Outside Diameter (in): 1.574

• Overall Length (mm): 83

• Overall Length (in): 3.267

• External Thread Size: M10 x 1.5 (2x)

• Thread Length (mm): 27.5

• Thread Length (in): 1.082

• Material: Rubber

• Weight (kg): 0.039

• Weight (lb): 0.085
