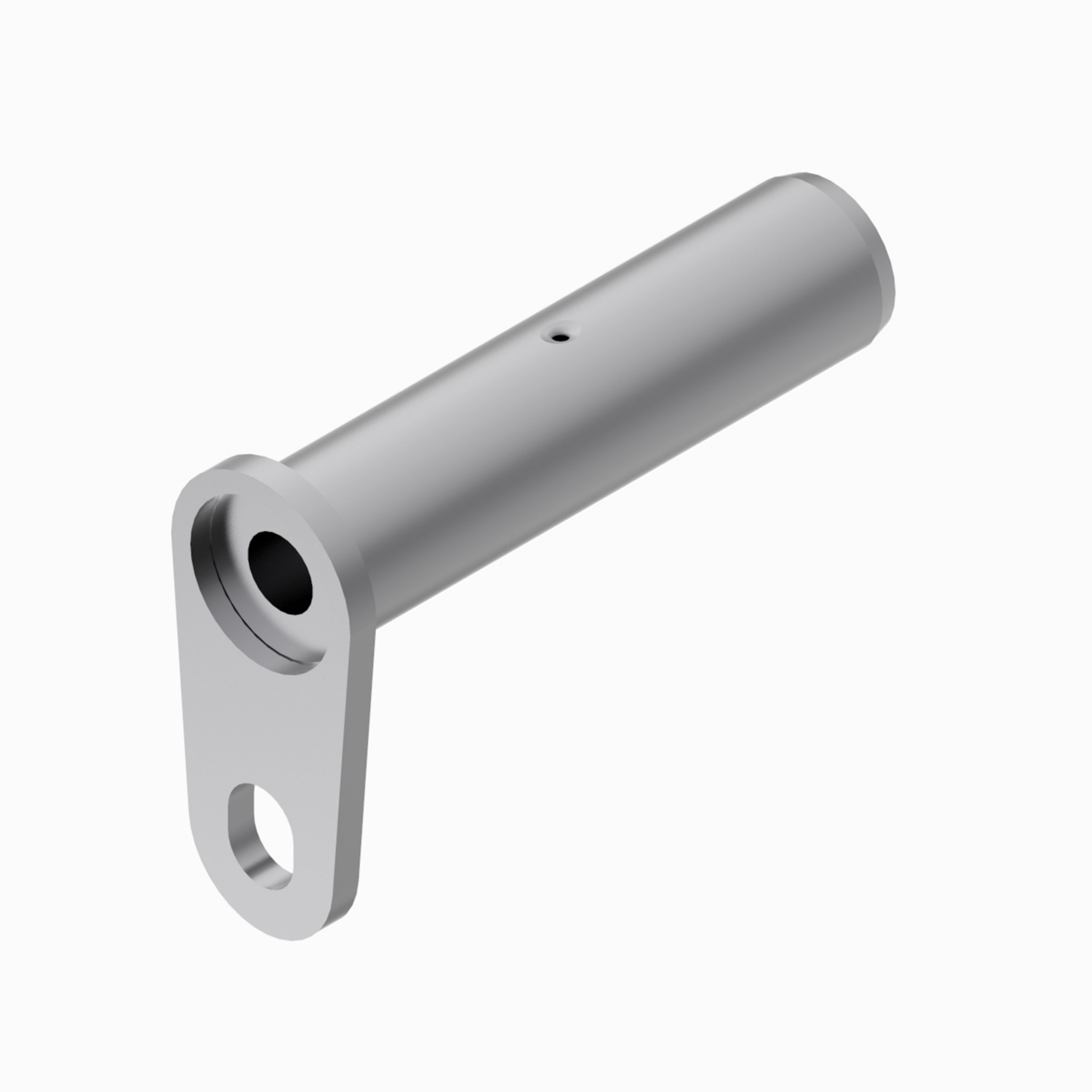

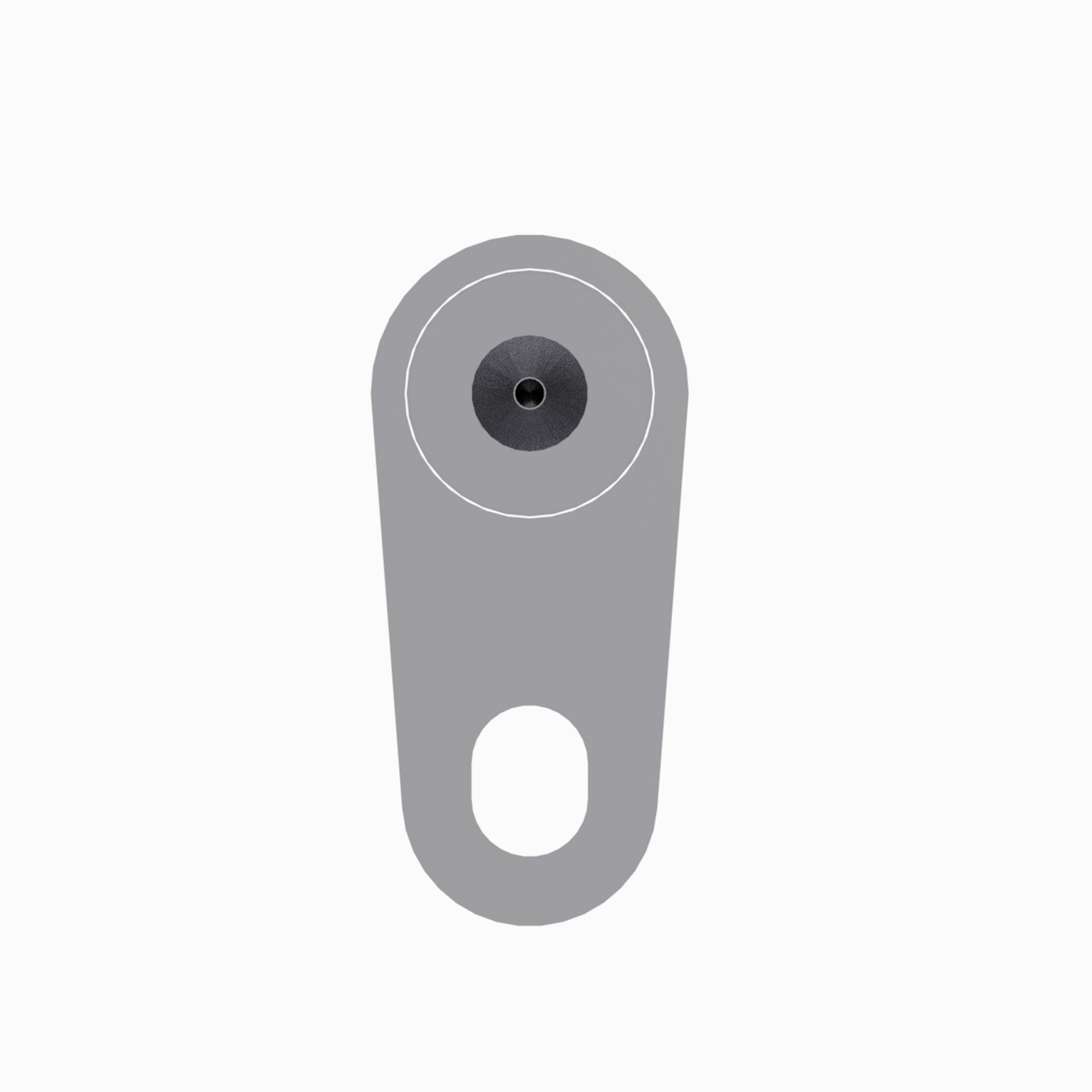

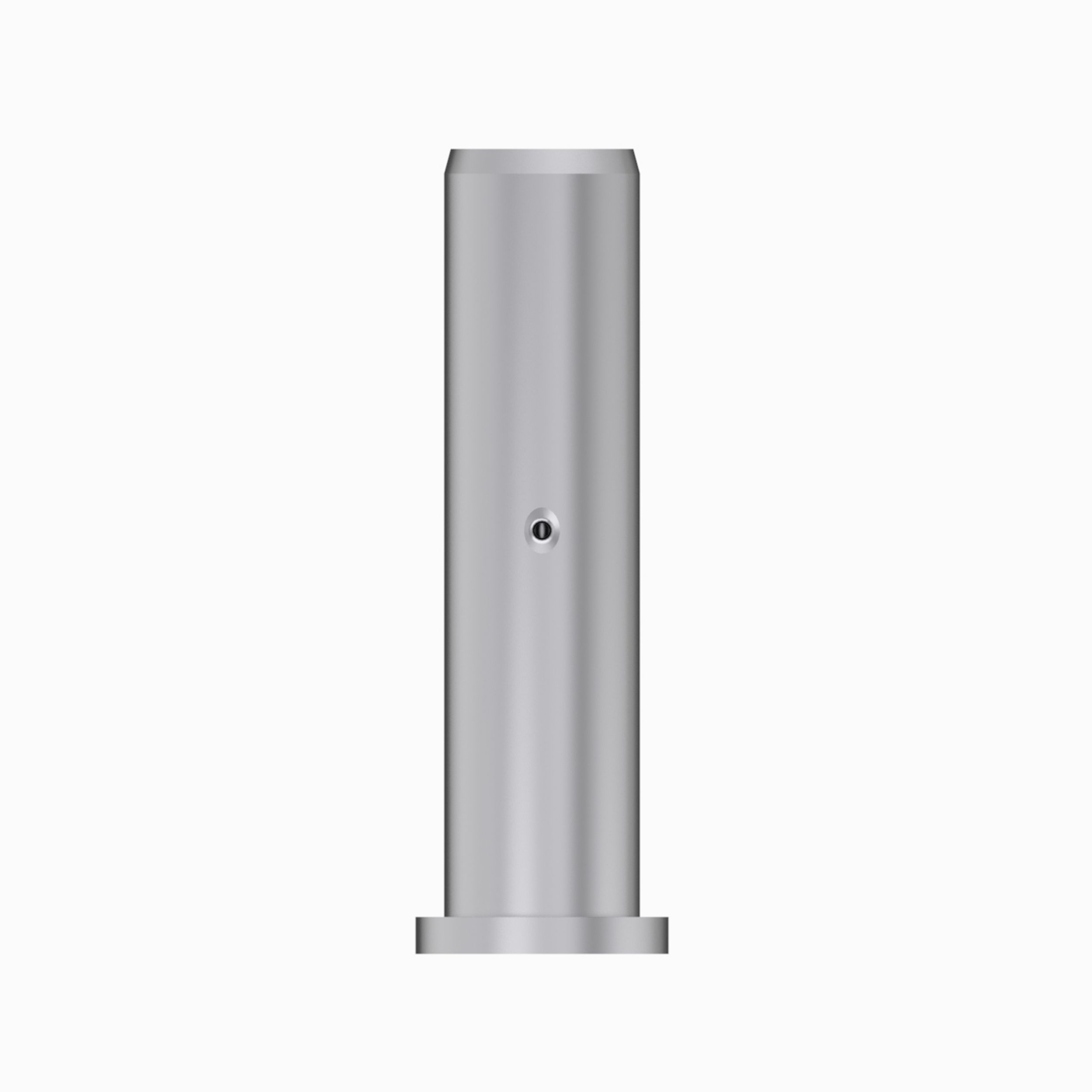

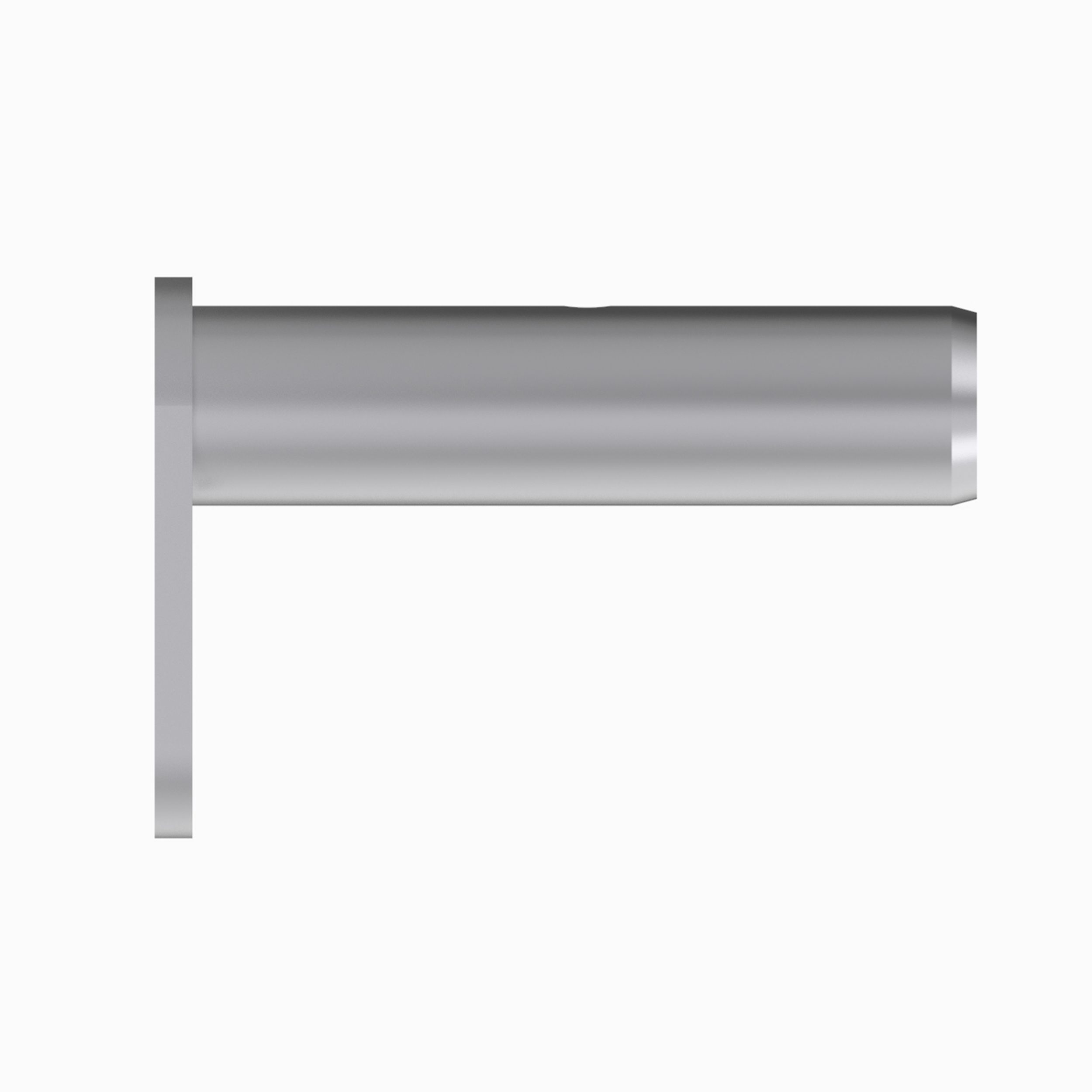

472-9012: Pin Assembly

Description:
Cat® Machine linkage pins support rotational movement between machine frames, linkages and work tools. They are found wherever rotation must occur between two structures. Genuine Cat pins and sleeve bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, heat treatment, surface treatments and finish to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.

Application:
Cat hardened linkage pins are designed for conditions that require superior load carrying capacity, strength and wear resistance for longer pin joint life. Cat linkage pins are the top choice for maximum performance in demanding applications. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 261

• Overall Length (in): 10.275

• Overall Width (mm): 82

• Overall Width (in): 3.228

• Overall Height (mm): 178.5

• Overall Height (in): 7.027

• Pin Diameter (mm): 63.48

• Pin Diameter (in): 2.499

• Weight (kg): 6.537

• Weight (lb): 14.411

• Material: Alloy Steel
