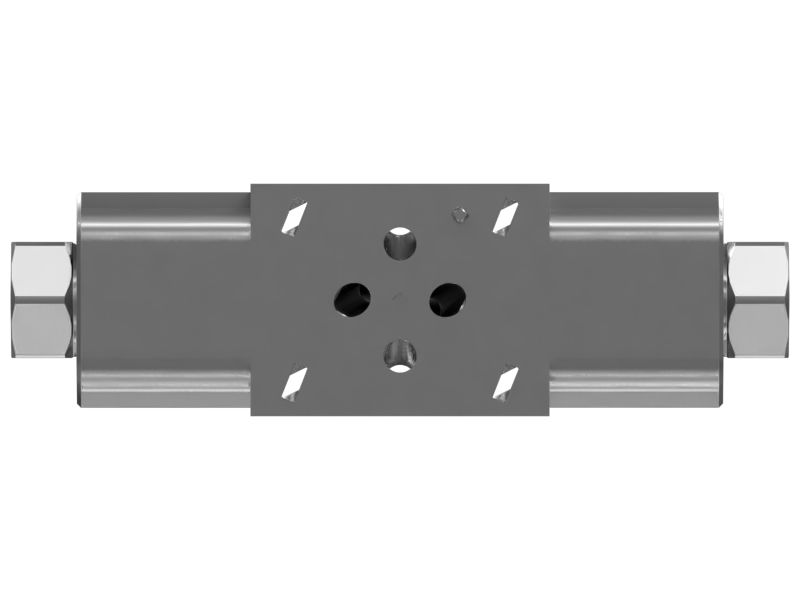

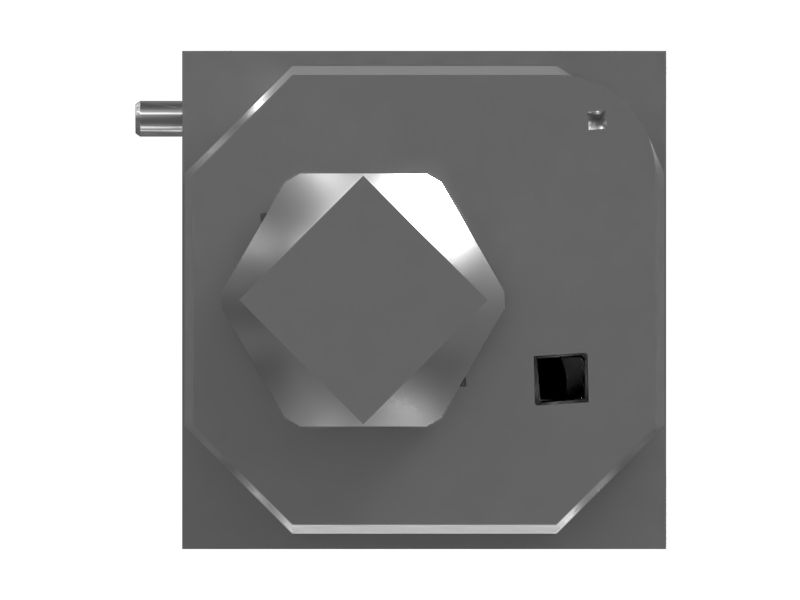

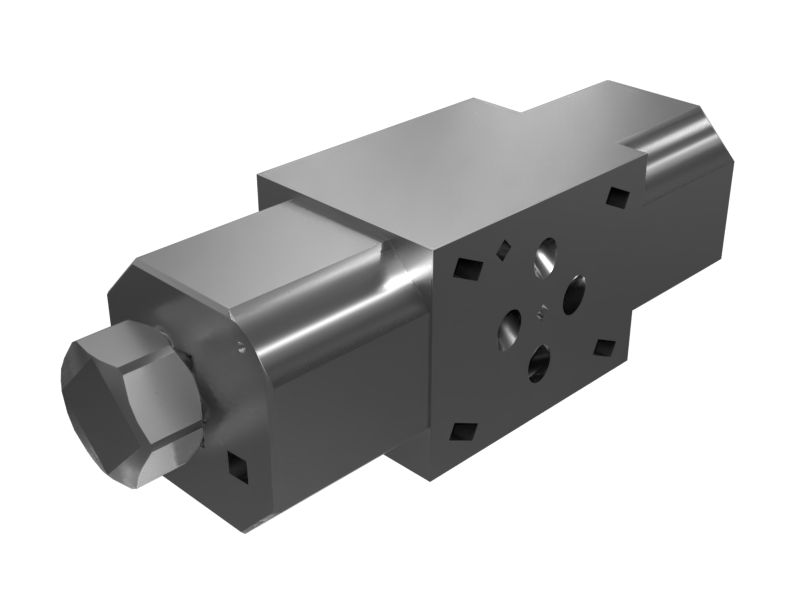

470-4066: КЛАПАН ОБРАТНЫЙ

The Pilot Operated Check Valve controls the flow of hydraulic fluid and features a non-sealed pilot mechanism for efficient operation. When fluid flows from the valve to the load, the valve remains open, facilitating smooth hydraulic operation. To reverse the flow, pressure applied by the pilot can open the valve, enabling the controlled operation of hydraulic systems. Thus, it is necessary for applications requiring accurate flow control to enhance the safety and efficiency of hydraulic systems in the equipment.

Attributes:
• Prevents backflow to ensure consistent load handling.
• Reduces the risk of hydraulic shock in the system.
• Facilitates accurate control of hydraulic flow and pressure.

Applications:
The Pilot Operated Check Valve is integrated into the hydraulic circuit between the hydraulic pump and the load, facilitating controlled flow management and providing safety features for the hydraulic system in the equipment applications.

• Weight (kg): 0.74

• Weight (lb): 1.64

• Operating Pressure (kPa): 21000

• Operating Pressure (psi): 3045.8

• Material: Alloy Aluminum,Aluminum

• Flow Range (LPM): 60

• Flow Range (GPM): 0.26
