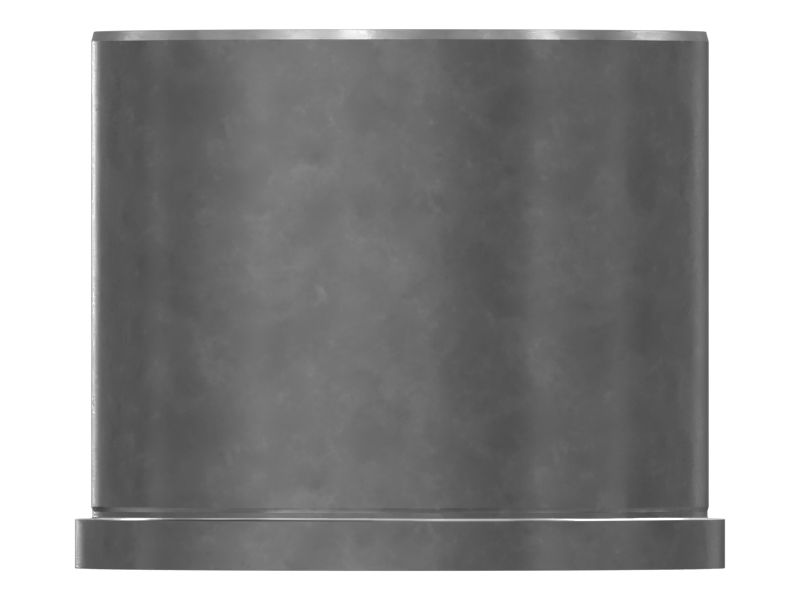

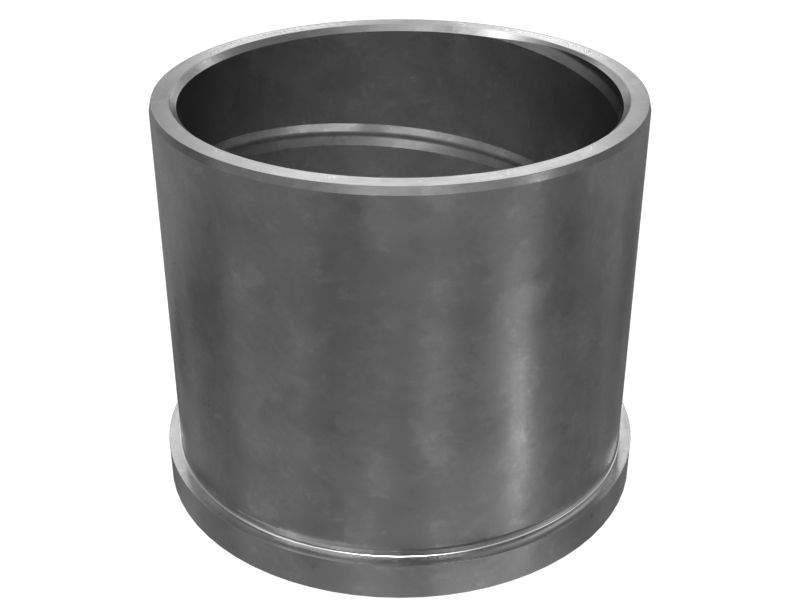

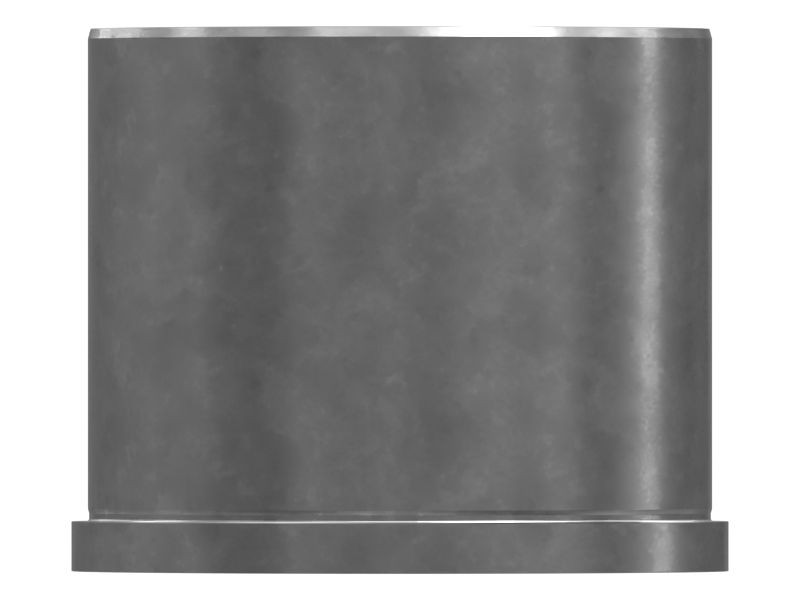

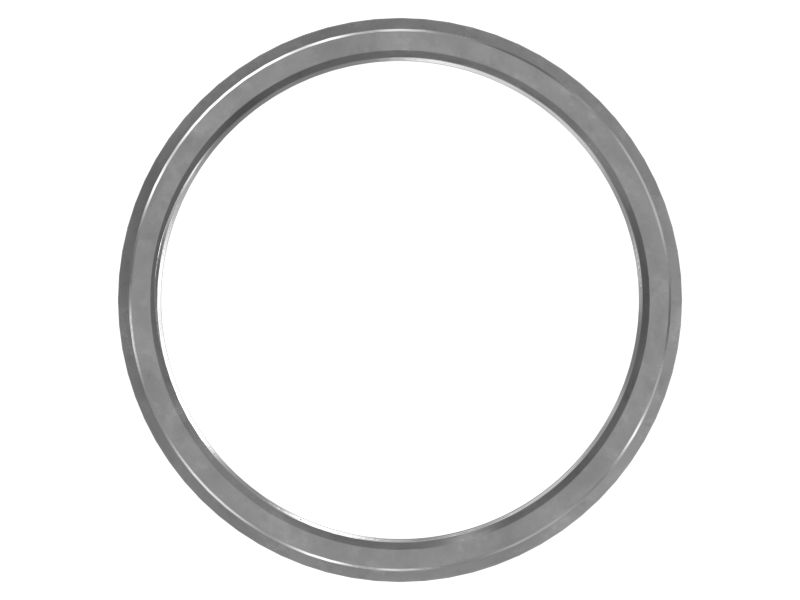

468-4111: ВТУЛКА

Description:
Sleeve Bearings support rotational movement between machine frames, linkages, and work tools. They are found mostly in the arms and buckets of machines. Genuine Cat Pin and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.

Attributes:
• Flange sleeve bearing
• Material: Steel
• Sleeve Inside Diameter: 170 mm (6.6929 in)
• Sleeve Outside Diameter: 190 mm (7.480 in)
• Overall Length: 165 mm (7.480 in)
• Flange Diameter: 200 mm (6.496 in)
• Cross Holes: No
• Internal Grooves: Yes

Application:
Cat bearings are built specific to their application to ensure all drive train parts work and wear together as a system. Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Outside Diameter (mm): 190

• Inside Diameter (mm): 170

• Overall Length (mm): 165

• Flange Diameter (mm): 200

• Cross Holes: No

• Internal Groove: Yes

• Outside Diameter (in): 7.480

• Inside Diameter (in): 6.6929

• Overall Length (in): 6.496

• Flange Diameter (in): 6.496

• Material: Alloy Steel
