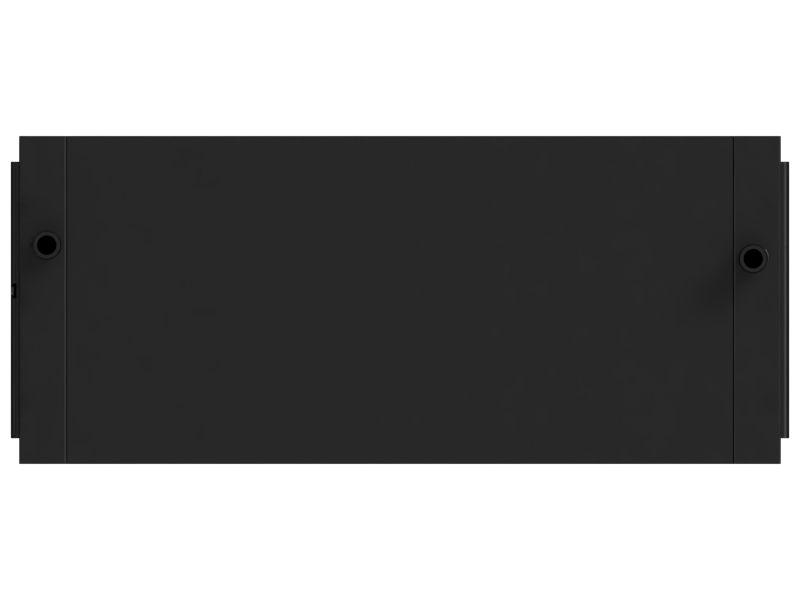

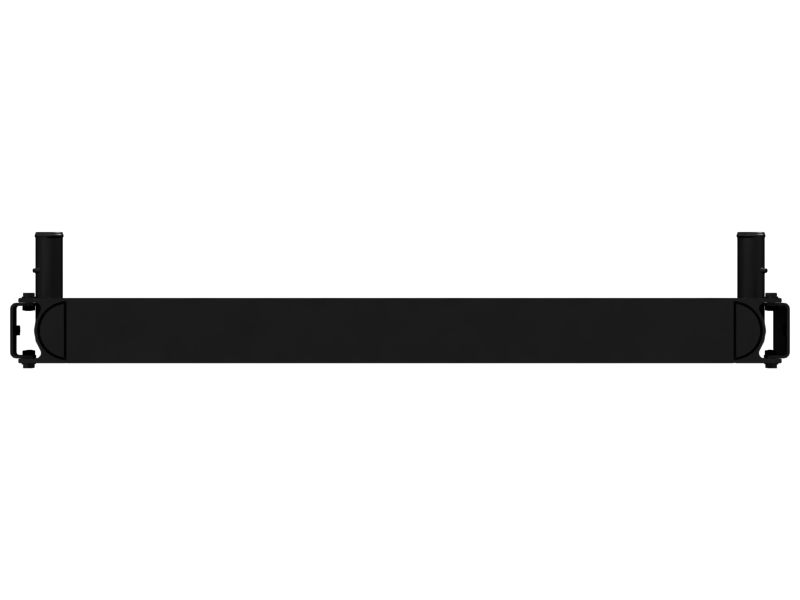

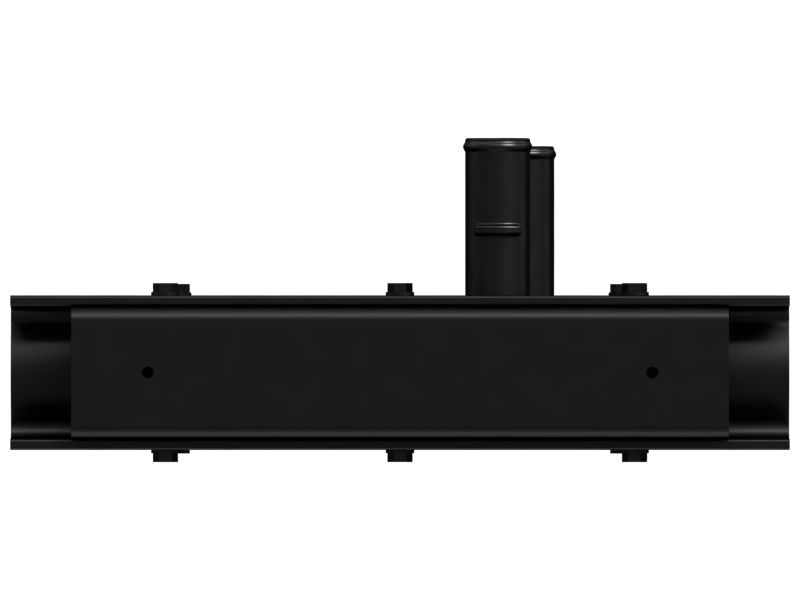

468-3847: СЕРДЕЧНИК МАСЛООХЛАДИТЕЛЯ В СБОРЕ

A Hydraulic Oil Cooler Core is used to regulate and maintain the temperature of the oil circulating within a hydraulic unit. It consists of a series of fins, which helps to maximize the contact area between the oil and the surrounding environment, facilitating effective heat transfer. Hot hydraulic oil from the unit flows through these tubes while cooling air passes over the external surface of the tubes. This arrangement allows for the transfer of heat from the hydraulic oil to the surrounding air.

Attributes:
• Air flow rate and oil flow rate of the oil cooler core are 136 Kg/min and 225 L/min, which promotes efficient heat transfer
• Internal volume of the oil cooler core is 16.8 liters, which allows for more efficient heat dissipation
• Maximum air pressure drop valve of the core is 0.19 KPa, which maintains consistent airflow and ensures optimal cooling performance

Applications:
A Hydraulic Oil Cooler Core acts as a heat exchanger, facilitating the transfer of heat from the oil to the surrounding environment, thereby maintaining the hydraulic unit's optimal operating temperature and ensuring its reliability and efficiency.

• Material: Alloy Aluminum
