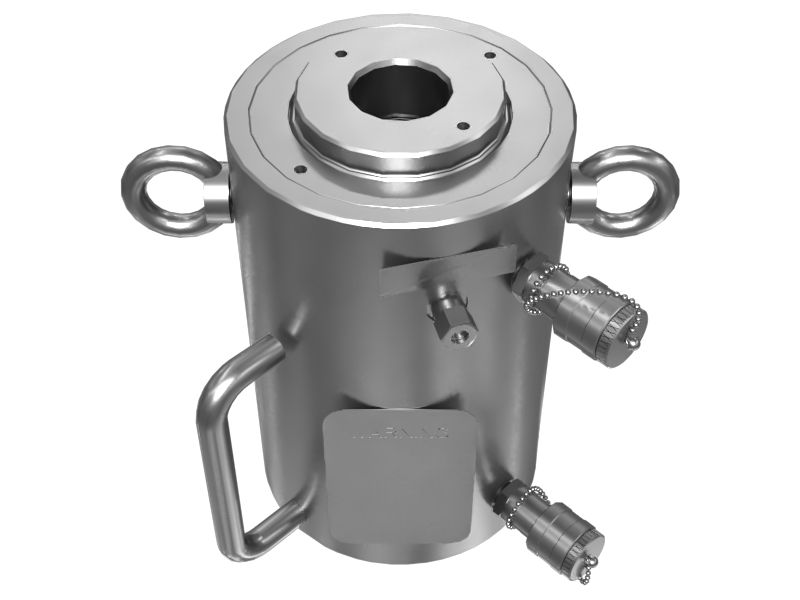

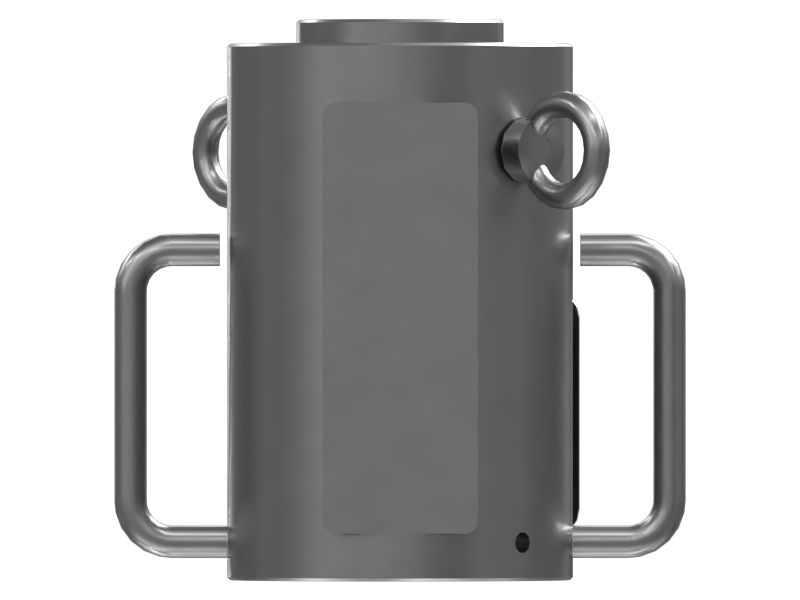

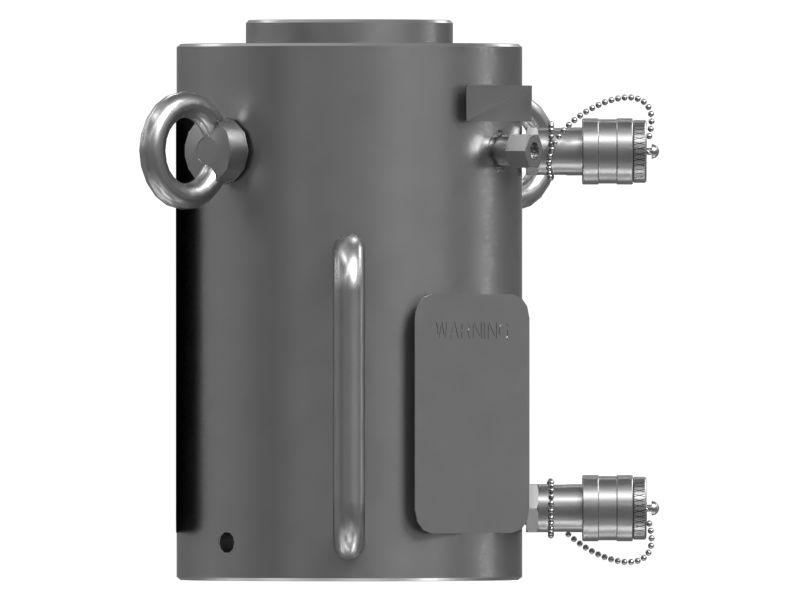

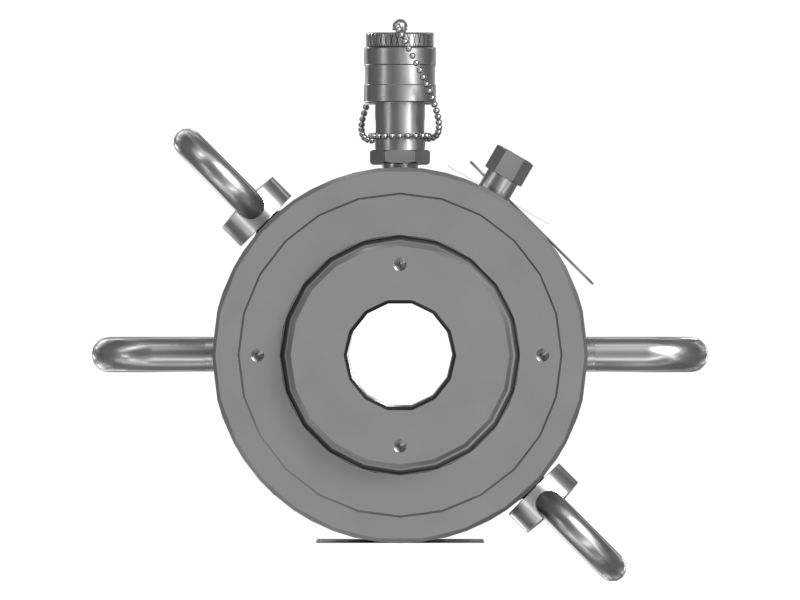

465-6061: 90.72 Metric Ton Hydraulic Cylinder

The Hydraulic Cylinder is used to separate and align the main frames during installation. It consists of a cylinder barrel, piston, and rod, which work together to convert hydraulic pressure into mechanical force. When hydraulic fluid is pumped into the cylinder, it pushes the piston, which in turn moves the rod. This motion allows the cylinder to extend and retract, providing the necessary force to adjust and separate the main frames accurately. The accurate control of the hydraulic cylinder ensures that the frames are aligned correctly, which is necessary for the overall stability and functionality of the equipment.

Attributes:
• Supports up to 90.72 metric tons of load during extension.
• Supports up to 48.99 metric tons of load during retraction.
• Equipped with seals to prevent hydraulic fluid leakage.
• Provides a stroke length of 152.4 millimeters, allowing for accurate adjustment of components.
• Handle high-pressure hydraulic fluid during operation.
• Features bore diameter is 146.1mm for effective force transmission.

Applications:
The Hydraulic Cylinder is used to convert hydraulic pressure into linear motion, providing powerful and controlled movement in main frame installation and removal operations.

• Overall Height (mm): 276.6

• Overall Height (in): 10.89

• Overall Width (mm): 304.29

• Overall Width (in): 11.98

• Thread: 3/8"-18 NPTF

• Internal Thread: 2-7/8"-16 UN-2B

• Material: Steel,Carbon Steel

• Bore Diameter (mm): 146.1

• Bore Diameter (in): 5.752

• Weight (kg): 52

• Weight (lb): 114.64
