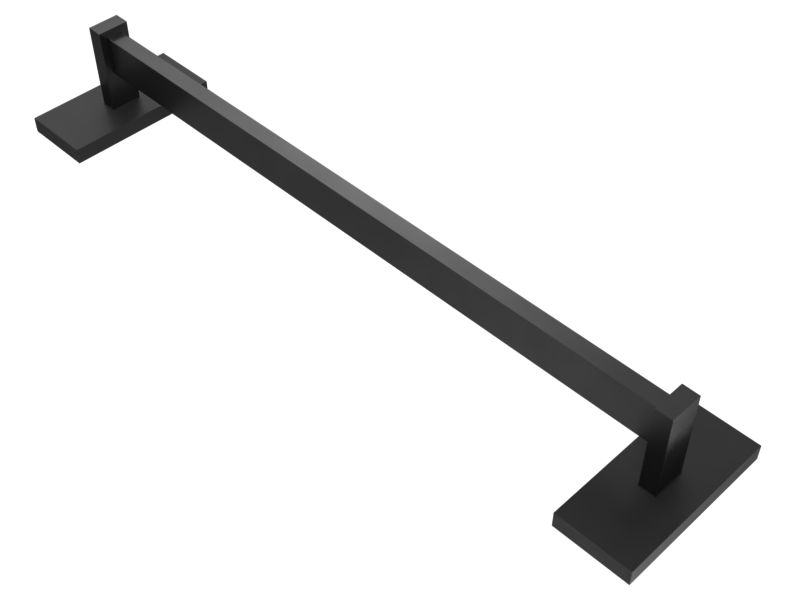

464-6921: Flatness Check Tool

The Flatness Check Tool measures and verifies the flatness of surfaces during the rebuilding and maintenance of axle and transmission components in equipment. This tool ensures that all mating surfaces are perfectly aligned and flat, preventing issues such as uneven wear, misalignment, and mechanical failure. By providing accurate flatness checks, the tool aids technicians in achieving accurate assembly, leading to improved performance and longevity of the transmission system.

Attributes:
• Ensures accurate alignment of axle and transmission components.
• Provides accurate readings of surface flatness to ensure optimal performance.
• Capable of detecting even the smallest deviations from flatness.
• Suitable for checking flatness on different axles and transmission surfaces.

Applications:
The Flatness Check Tool is applied to check the flatness of mating surfaces during the rebuilding of the axle and transmission system in the equipment's transmission assembly, which is located within the main drivetrain section of the equipment.

• Overall Length (mm): 930

• Overall Length (in): 36.614

• Overall Width (mm): 200

• Overall Width (in): 7.874

• Overall Height (mm): 130

• Overall Height (in): 5.118

• Weight (kg): 13.44

• Weight (lb): 29.63

• Material: Coating Mixed
