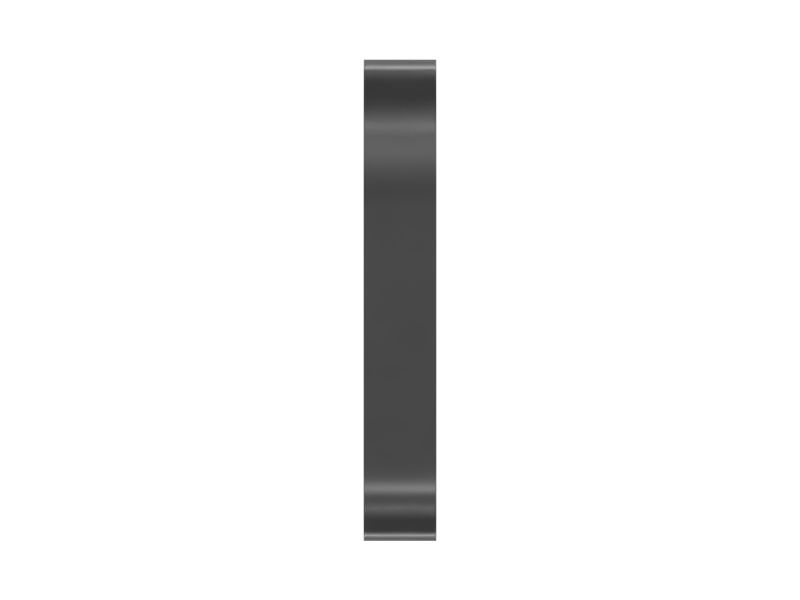

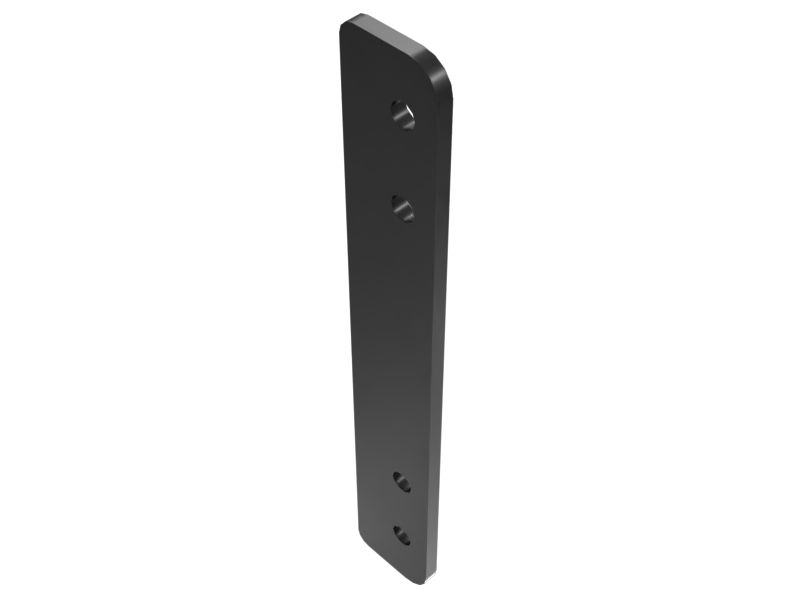

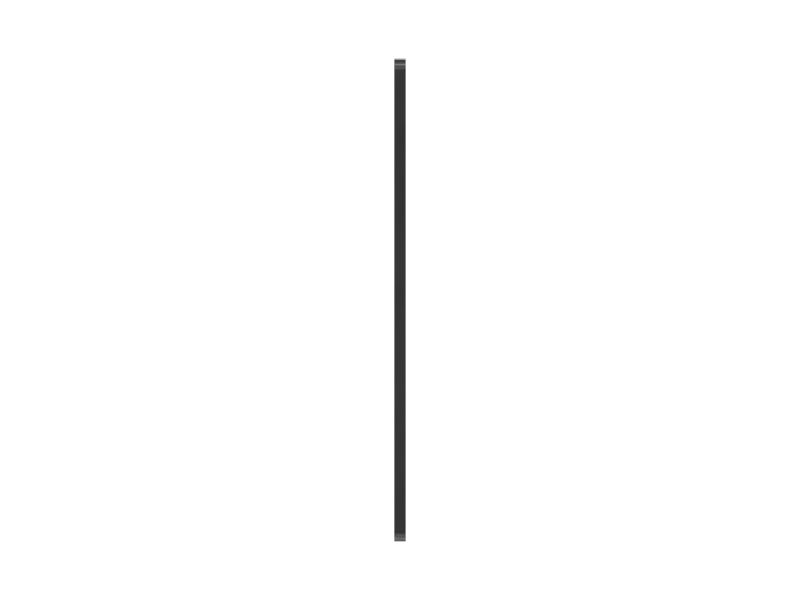

461-2019: Service Center Wiring Box Hinge Supporting Plate

A Service Center Wiring Box Hinge Support Plate acts as a spacer between the hinges and their mounting surfaces in assemblies such as the service center wiring box that requires hinged movement. It provides additional support and proper alignment for the hinges, ensuring smooth operation and stability. It is provided with holes that align with the mounting holes of the hinges. It is positioned to bridge the gap between the hinge leaf and the mounting surface on the box, effectively creating a consistent and even spacing.

Attributes:
• Ensures that the cover plate of the box operates smoothly without unnecessary friction or misalignment

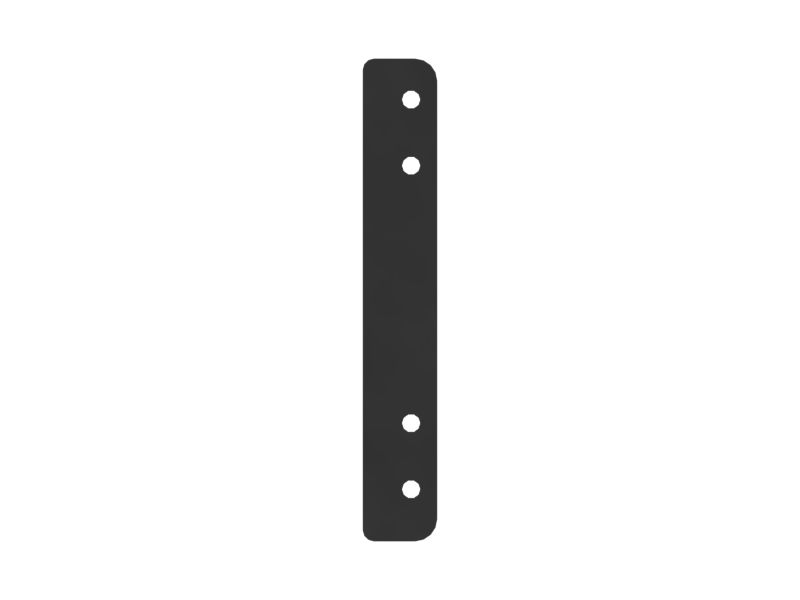

• Provided with 4 mounting holes to fit the fastener of size M4

Applications:
A Service Center Wiring Box Hinge Support Plate is used to provide proper alignment and stability for the hinges within the electrical box of the service center wiring. It ensures that the hinges are positioned correctly and maintain a consistent distance from the mounting surface, preventing misalignment, binding, or excessive stress on the hinges.

• Material: Carbon Steel
