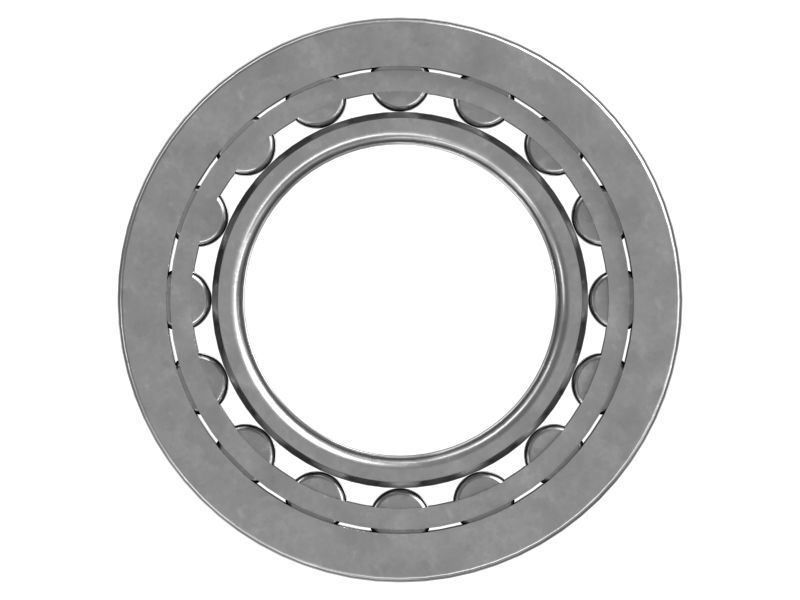

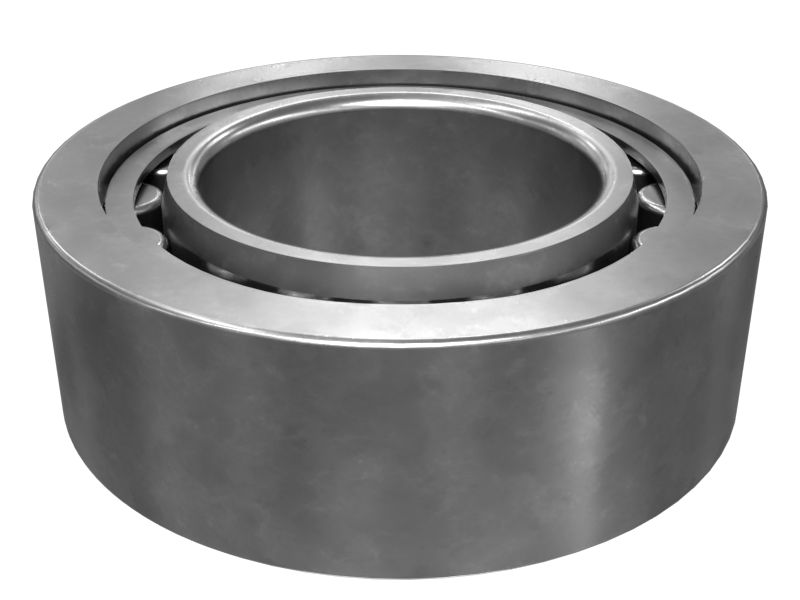

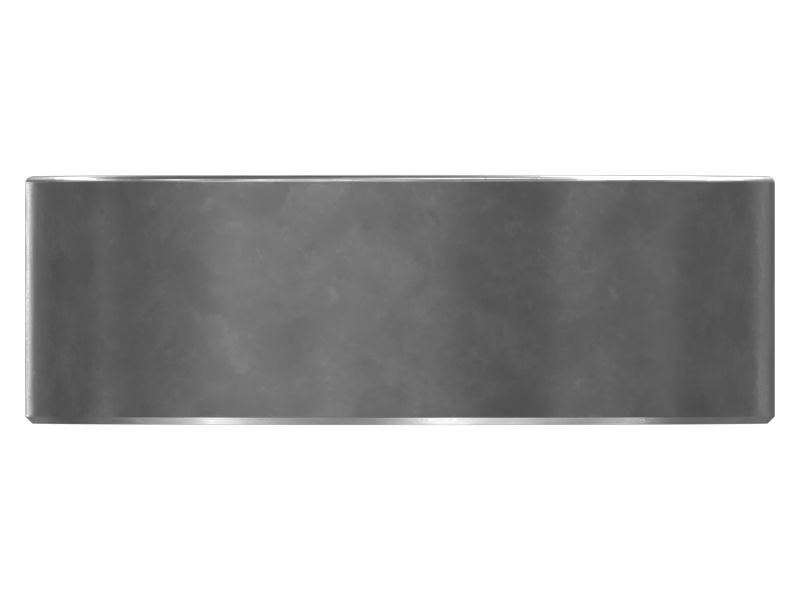

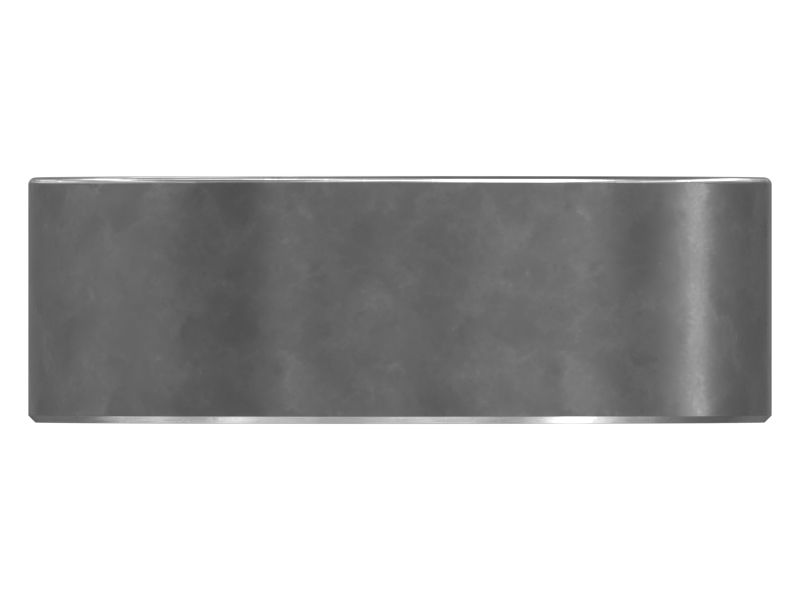

461-0040: ПОДШИПНИК

A Cylindrical Roller Bearing is a type of rolling-element bearing that is engineered to support high radial loads. Its main function is to support the rotation of the pinion shaft in the crowd drive gearbox assembly. It consists of cylindrical rollers that are arranged in a line perpendicular to the axis of the bearing. The rollers are held in place by a cage or retainer, which keeps them evenly spaced and prevents them from coming into contact with each other.

Attributes:
• Withstands high loads and vibrations exerted during operation
• Features a brass cage to dissipate the heat generated during bearing operation

Applications:
A Cylindrical Roller Bearing is used to support the main pinion shaft and provide a low-friction surface for the shaft to rotate inside the crowd drive gearbox. It also ensures proper alignment and function of the pinion shaft.

• Outside Diameter (mm): 270

• Inside Diameter (mm): 150

• Height (mm): 88.9

• Outside Diameter (in): 10.630

• Inside Diameter (in): 5.9055

• Height (in): 3.500

• Material: Alloy Steel,Carbon Steel
