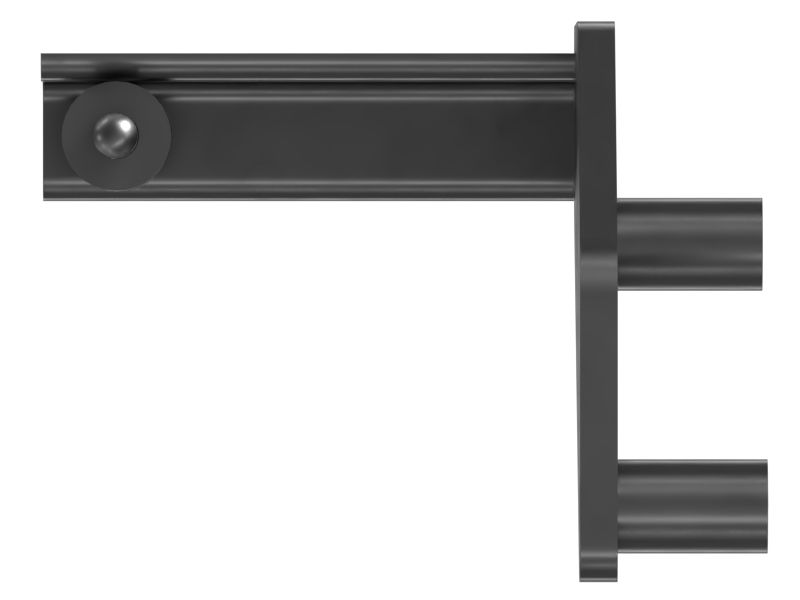

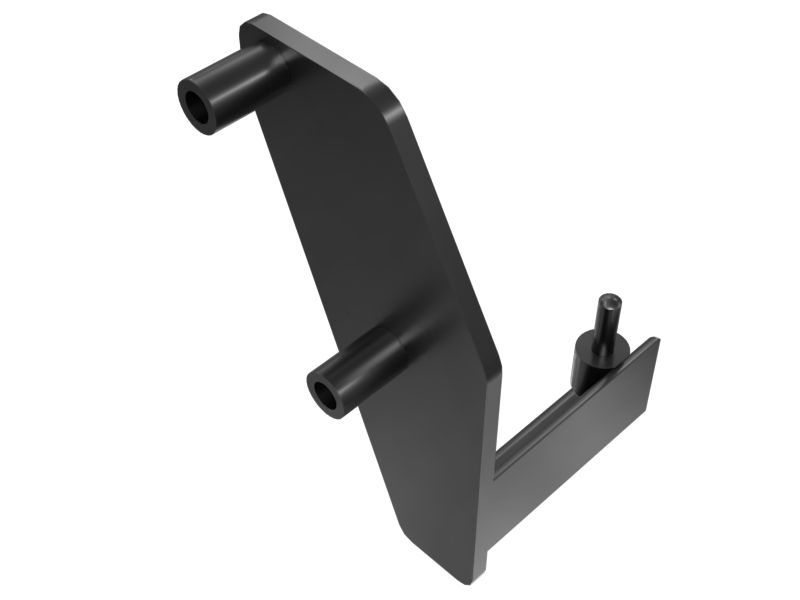

460-0847: Engine Support Bracket

An Engine Support Bracket is attached to the left-hand side of the flywheel housing and helps to stabilize the engine while the transmission is being worked on or replaced. It includes a bracket, plate, angle, tubes, and fasteners that can be positioned to provide the necessary support and stability for the engine. The bracket is made to withstand the weight and pressure of the engine, ensuring that it remains securely in place during and after the transmission removal process.

Attributes:
• Provides support for the rear of the engine, preventing it from shifting or dropping during transmission removal procedures
• Helps to maintain the alignment and balance of the engine, reducing the risk of damage to engine components or the chassis

Applications:
An Engine Support Bracket offers a secure and stable platform for temporarily holding the engine's rear end which may become unsupported and require additional support to prevent damage or misalignment when the transmission is removed.

• Material: Steel,Structural Steel,Carbon Steel,Alloy Steel

• Overall Length (mm): 248.5

• Overall Length (in): 9.783

• Overall Height (mm): 380.9

• Overall Height (in): 14.996

• Overall Width (mm): 190.6

• Overall Width (in): 7.503

• Weight (kg): 6.569

• Weight (lb): 14.482
