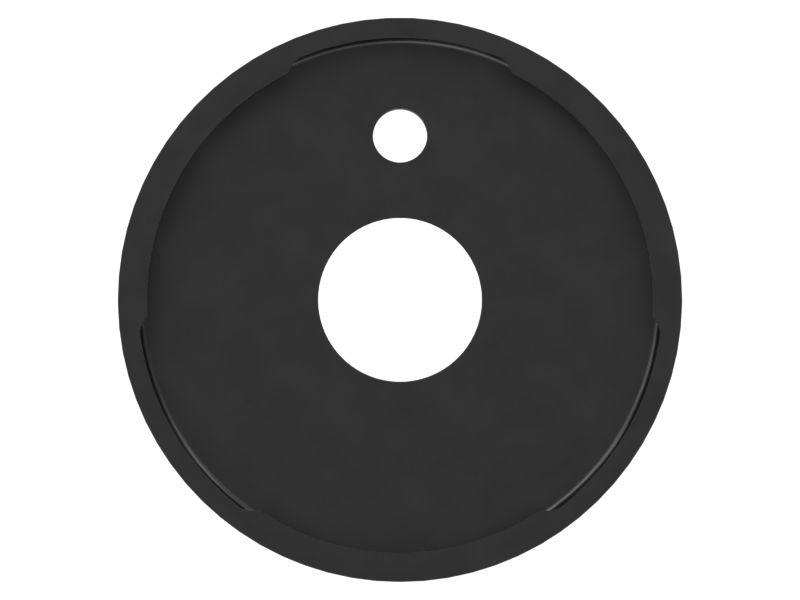

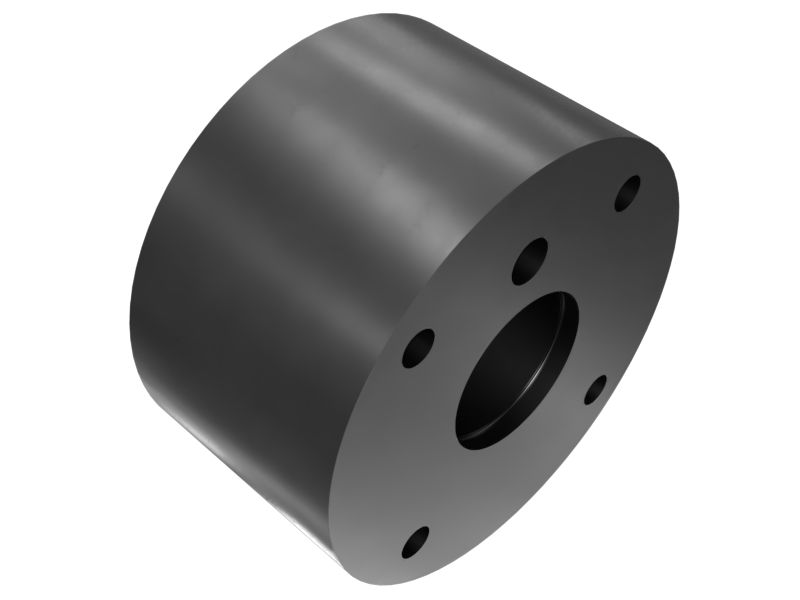

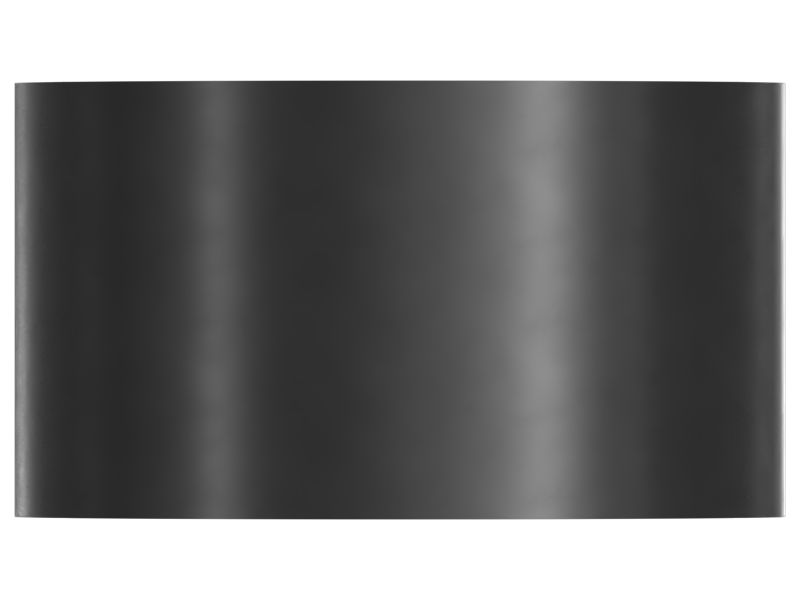

458-2138: Undercarriage Extruder Tool Base

An Undercarriage Extruder Tool Base is placed center onto the end of a track pin, providing a stable platform for performing swaging operations. The tool base accepts different extruder faces that are used to apply controlled pressure and force to the track pin during the swaging process. By utilizing the tool base with compatible extruder faces, technicians can effectively shape and secure the track pin in place, ensuring a reliable connection between the track pin and track link with Positive Pin Retention (PPR) methods.

Attributes:
• Provides a secure base for swaging operations and allows technicians to perform PPR and PPR2 swaging operations in a more cost-effective and efficient manner
• Direct hardened with a hardness of Rockwell C57-59 for resistance to deformation and wear

Applications:
An Undercarriage Extruder Tool Base facilitates the swaging process, allowing technicians to effectively perform maintenance tasks on track pins utilizing Positive Pin Retention (PPR) methods, such as PPR and PPR2.

• Material: Steel,Alloy Steel,Coating Mixed

• Thread: 3/8" - 16 - 2B, M8 X 1.25 - 6H

• Outer Diameter (mm): 90

• Outer Diameter (in): 3.543

• Inner Diameter (mm): 26

• Inner Diameter (in): 1.023

• Length (mm): 50

• Length (in): 1.968

• Weight (kg): 1.736

• Weight (lb): 3.827
