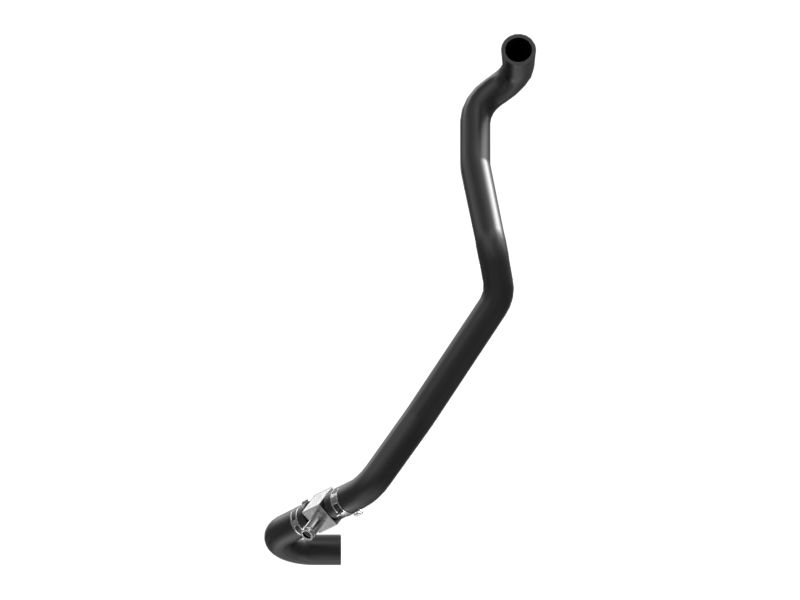

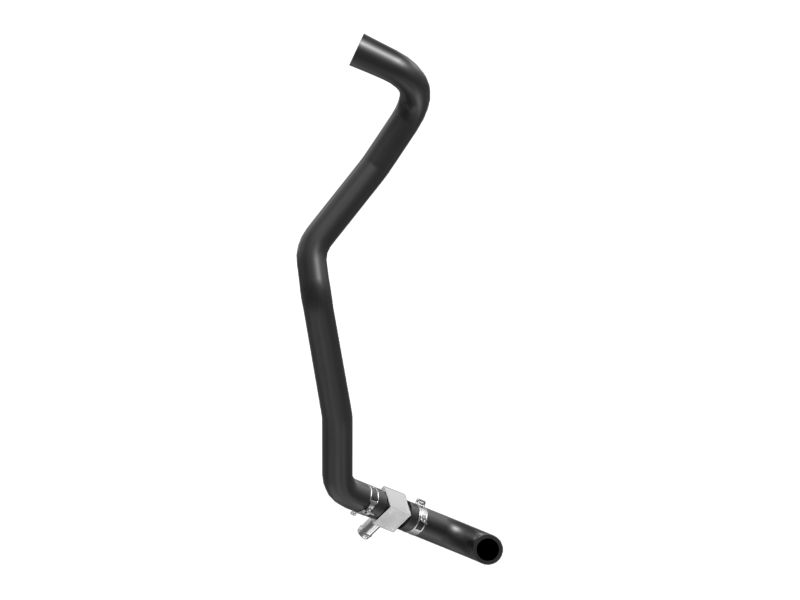

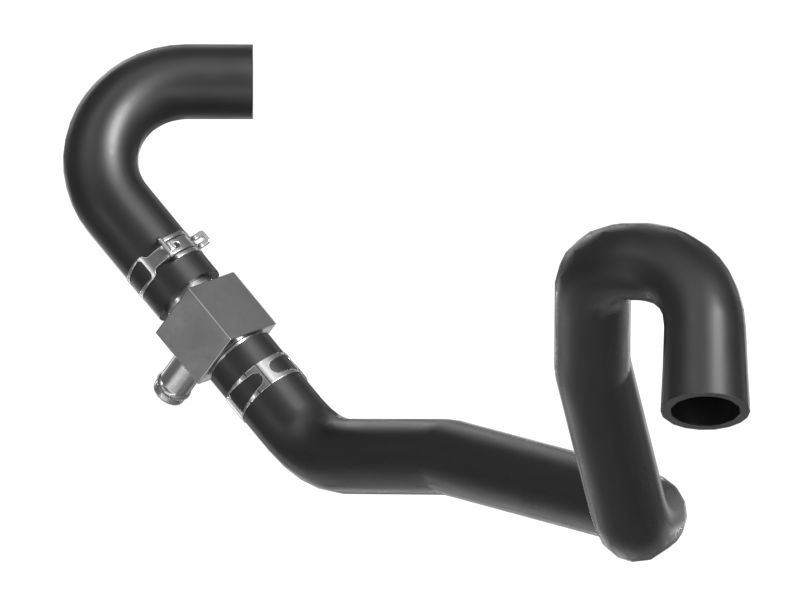

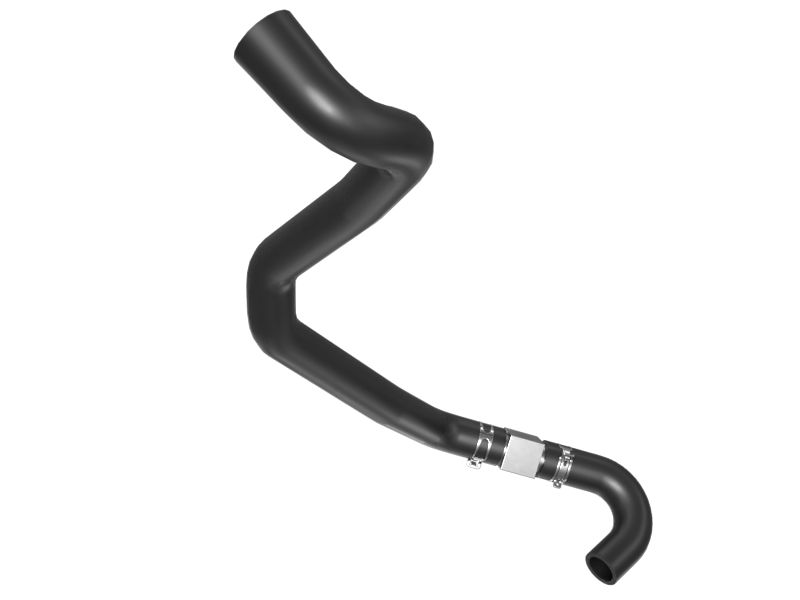

456-8555: ШЛАНГ ОБЪЕМНЫЙ

Cat hoses are designed to route liquids and gases through machine systems. These hoses are fabricated from superior materials to withstand application-specific pressures, vibration tolerances, and flow requirements for Cat heavy-duty equipment. Cat hydraulic hose and couplings are subjected to the most rigorous testing processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit that yields maximum safety and dependability.

The construction of the hose is made from a synthetic rubber tube; one or two braids of special high tensile steel wire reinforcement separated by a synthetic rubber layer. The outer cover is textile braided.

• Inside Diameter (in): 0.25

• Inside Diameter (mm): 6.35

• Dash Size: -4

• Outside Diameter (in): 0.62

• Outside Diameter (mm): 15.8

• Working Pressure (kPa): 20700

• Working Pressure (psi): 3002

• Operating Temperature: -40°C to 150°C

• Material: Rubber,Medium Pressure Hose

• Application: Oil Resistance

• Pressure Capacity (psi): 82800

• SAE: SAE 100R5

• Bulk Unit of Measure: CM
