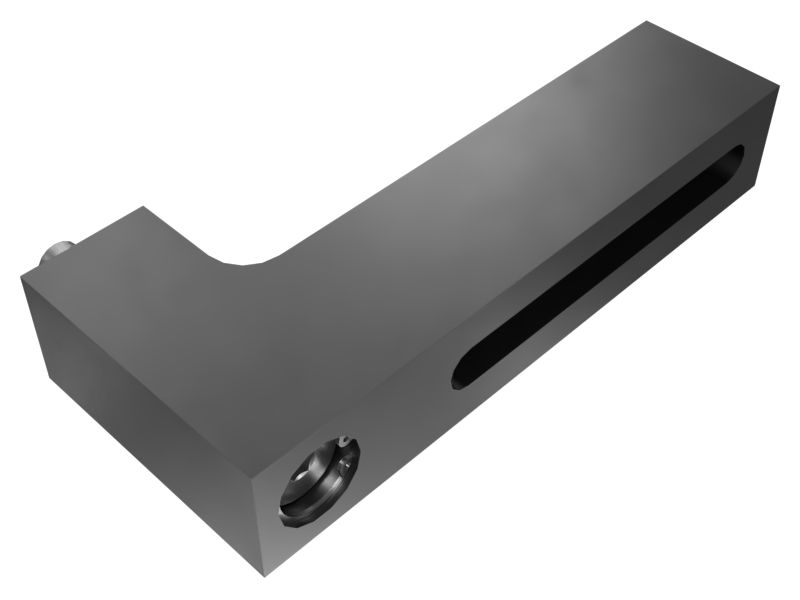

456-0652: Transmission Support Bracket

The Transmission Support Bracket serves to provide stability and support while working on transmissions, allowing for easier access and maintenance tasks. The support bracket is equipped with a shoulder bolt that is secured in place with a removable snap ring, ensuring a secure connection between the transmission and the engine repair stand. It attaches to the transmission housing and secures it to an engine repair stand. It provides a strong connection between the transmission and the engine repair stand, ensuring that the transmission is held securely in place during maintenance tasks.

Attributes:
• Features a shoulder bolt that is inserted through a mounting point on the transmission and secured in place with a removable snap ring
• Hardened to Rockwell C scale hardness of C50-54 for resistance to wear and deformation
• Provides stability and support, preventing the transmission from shifting or moving during maintenance procedures

Applications:
The Transmission Support Bracket provides a stable platform for working on the transmission, making it easier to access and service components. It allows technicians to securely attach the transmission to an engine repair stand when the transmission needs to be removed for maintenance or repair.

• Material: Steel,Coating Mixed

• Thread: M12x1.75

• Overall Length (mm): 203.2

• Overall Length (in): 8

• Overall Height (mm): 106

• Overall Height (in): 4.173

• Overall Width (mm): 40

• Overall Width (in): 1.574

• Weight (kg): 2.74

• Weight (lb): 6.04
