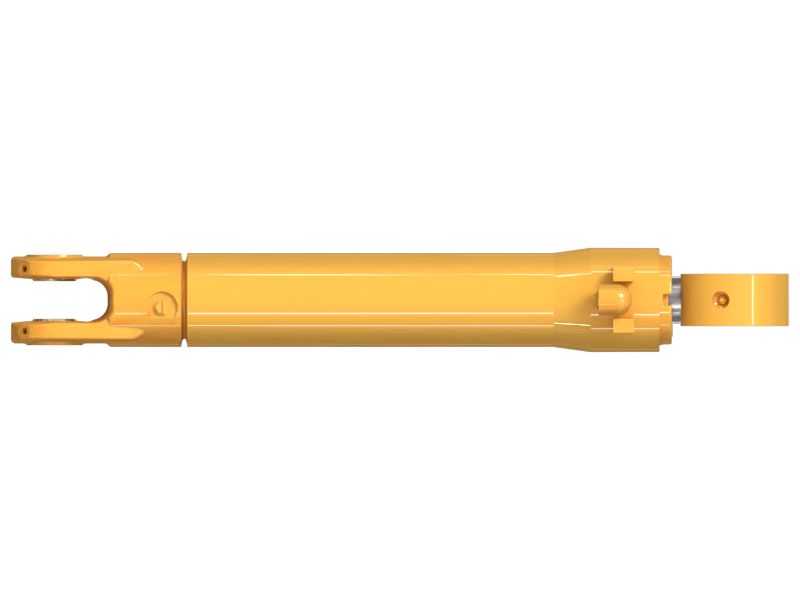

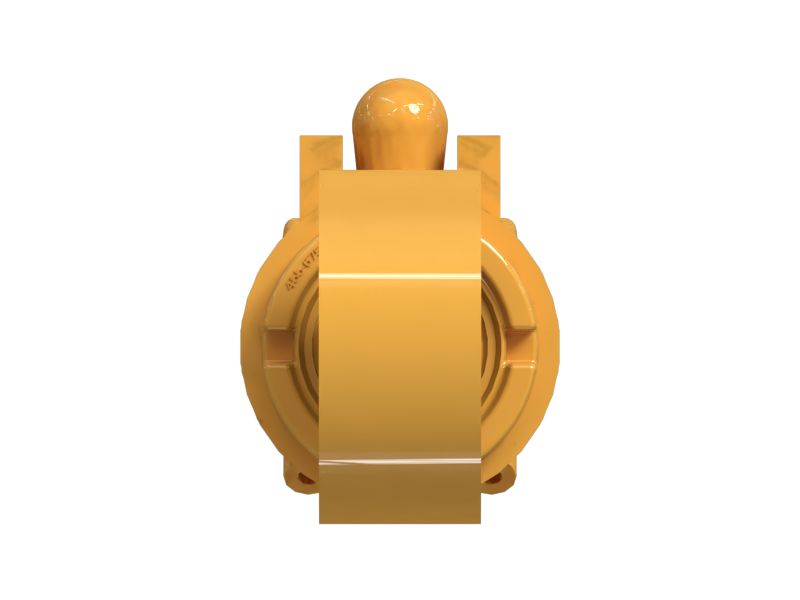

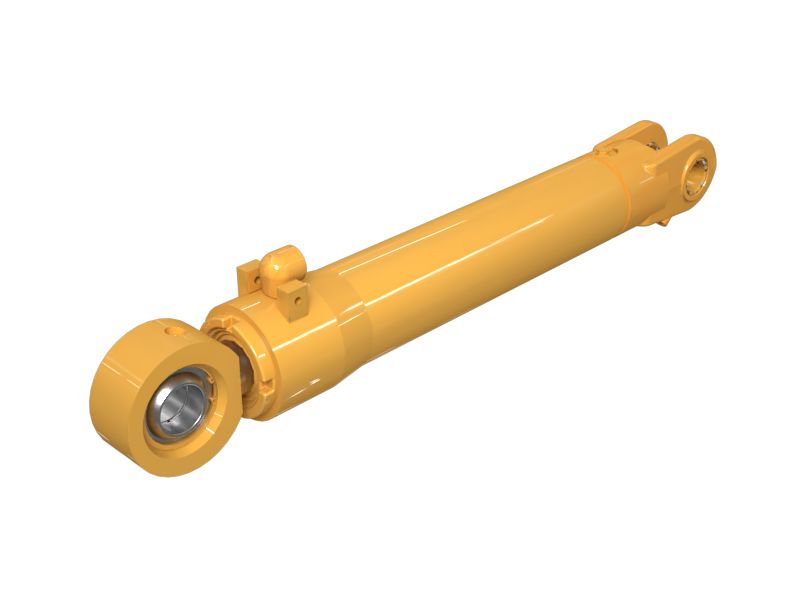

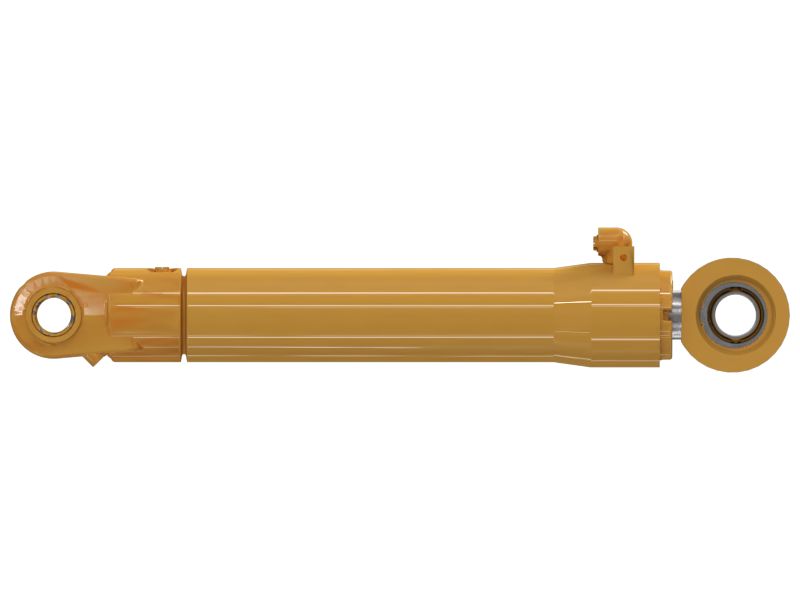

455-6756: БЛОК ЦИЛИНДРА 110 5

A Hydraulic Angling Cylinder consists of a cylinder barrel, Piston, Piston Rod, Seals, Cylinder Head, and Cap. The main body of the Hydraulic Cylinder is the Cylinder Barrel, made of high-strength material. It provides the housing for other internal components and contains the reciprocating Piston and Piston rods. The Piston is a cylindrical component that fits tightly inside the cylinder barrel. It separates the cylinder into two chambers: the Cap End and the Rod End. The Piston Rod extends from the Piston and connects to the external load. The Seals are provided to prevent fluid leakage and maintain the separation between the Rod and the Cap Side.

Attributes:
• Ensures high force output due to the large bore size of 110mm Diameter
• Provides with 2.4:1 Buckling Safety Factor at 60000 kPa to withstand a compressive load

Applications:
A Hydraulic Angling Cylinder is used to control the power angling of the blade by providing linear motion when hydraulic energy is converted into mechanical movement, allowing for precise adjustments to the blade's orientation during operation.
