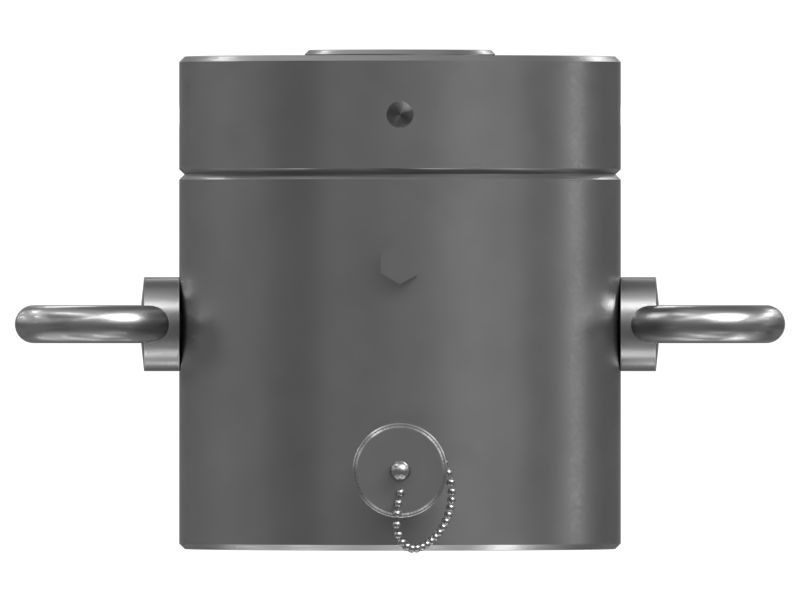

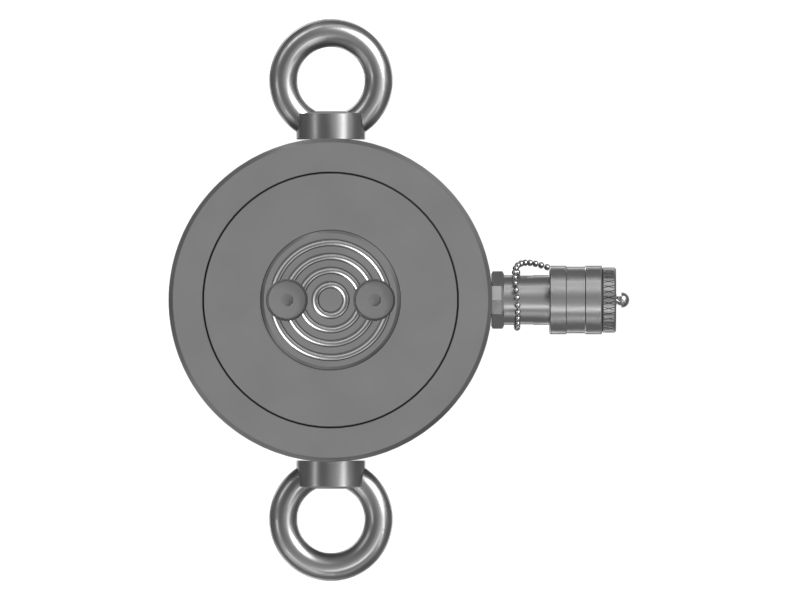

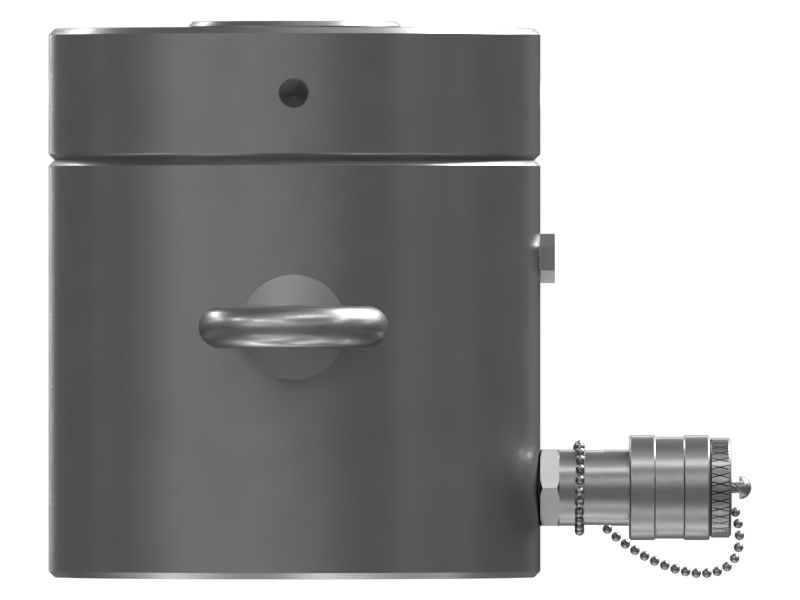

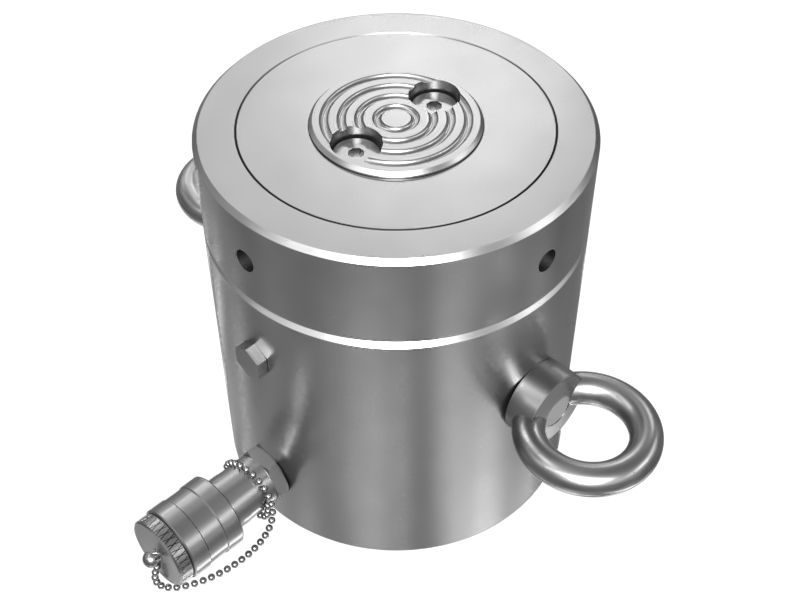

455-1825: Single Acting Hydraulic Cylinder

The Single Acting Hydraulic Cylinder consists of a cylindrical barrel, a piston, and a single port for hydraulic fluid entry. When hydraulic fluid is pumped into the port, it exerts pressure on the piston, causing it to extend. The return stroke occurs naturally, often aided by a spring or the weight of the load. The fluid does not fill the opposite side of the piston; instead, the piston retracts as the fluid is released.

Attributes:
• Withstands a max advance force of 90.72 metric ton
• Provided with a stroke length of 50mm
• Withstands a max pressure of 689 bar, 10000 PSI
• Provided with a collapsed height of 186.9mm and extended height of 237mm

Applications:
The Single Acting Hydraulic Cylinder generates force in one direction, creates force in one direction, making it ideal for applications requiring movement in a single direction.

• Outer Diameter (mm): 165.1

• Outer Diameter (in): 6.5

• Overall Length (mm): 235.8

• Overall Length (in): 9.283

• Color: Medium Gloss Black

• Weight (kg): 30.8

• Weight (lb): 67.902

• Material: Carbon Steel
