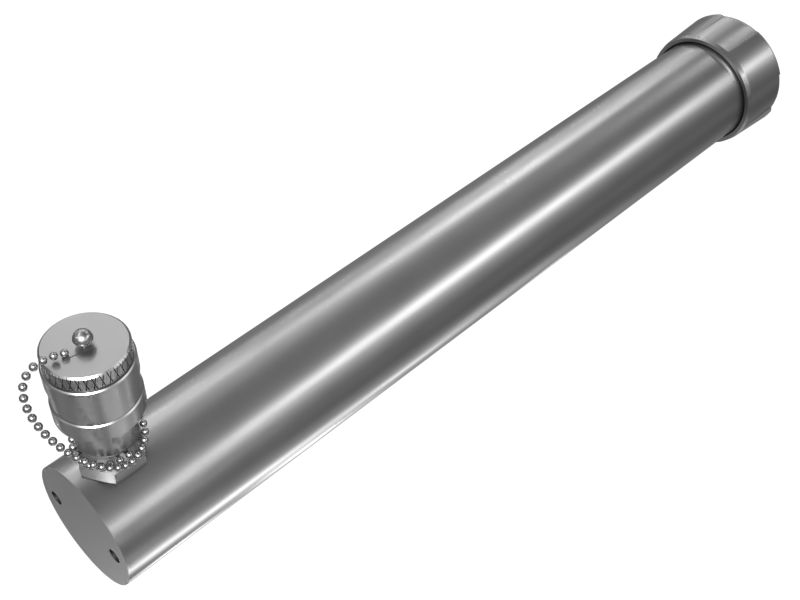

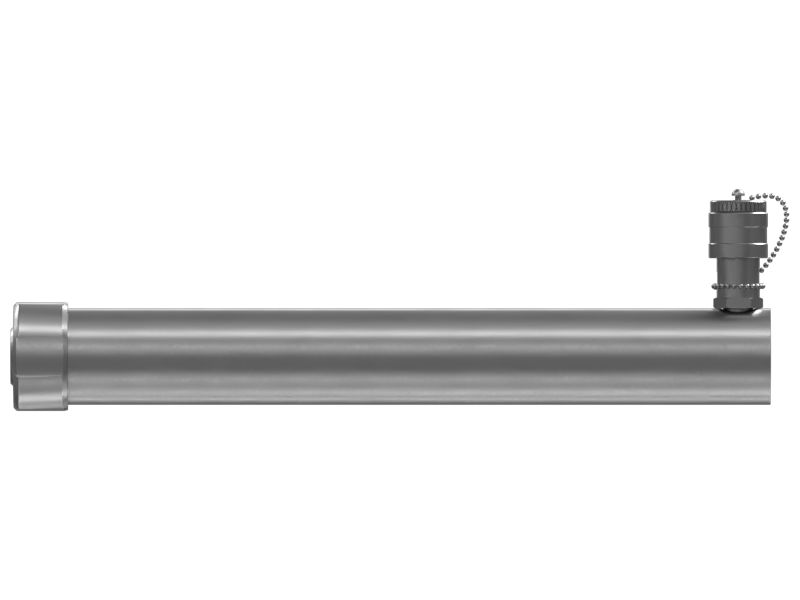

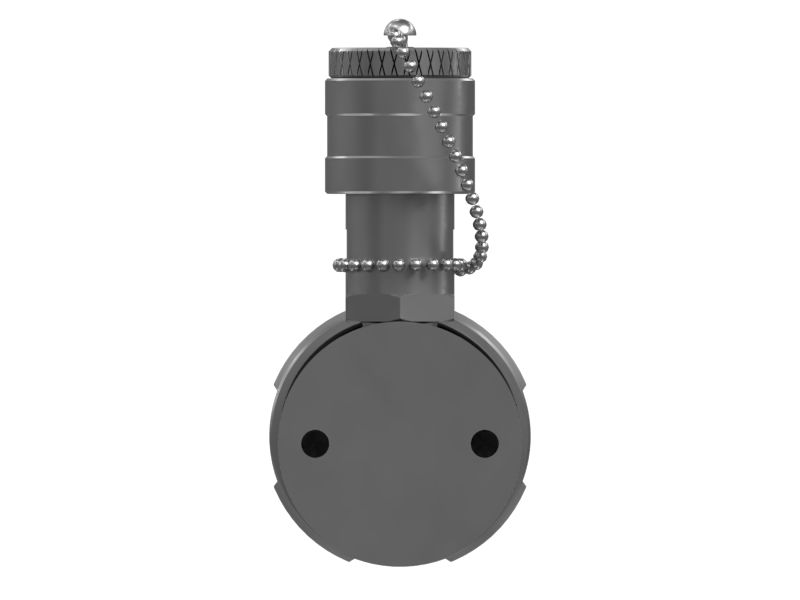

455-1818: 355.6mm Stroke Single Acting Hydraulic Cylinder

A Single Acting Hydraulic Cylinder is a mechanical actuator that consists of a cylindrical barrel, a piston, and a rod. It operates based on the principles of fluid power, utilizing hydraulic fluid to generate force and motion. The cylinder barrel houses the piston, which divides the internal space into two chambers. The rod is connected to the piston and extends through a sealed opening in the cylinder to transmit the generated force externally.

Attributes:
• Provide smooth and precise linear motion control, allowing for accurate positioning and movement of loads
• Withstands a max advance force of 9.07 metric ton

Applications:
A Single Acting Hydraulic Cylinder is responsible for generating pushing or pulling actions in response to hydraulic fluid pressure. When pressurized hydraulic fluid enters one chamber of the cylinder, it pushes against the piston, causing it to move linearly.

• Color: Black

• Thread: 5/16" - 18 UNC - 2B

• Overall Length (mm): 450.9

• Overall Length (in): 17.751

• Overall Height (mm): 128

• Overall Height (in): 5.039

• Weight (kg): 8.2

• Weight (lb): 18.077

• Material: Carbon Steel
