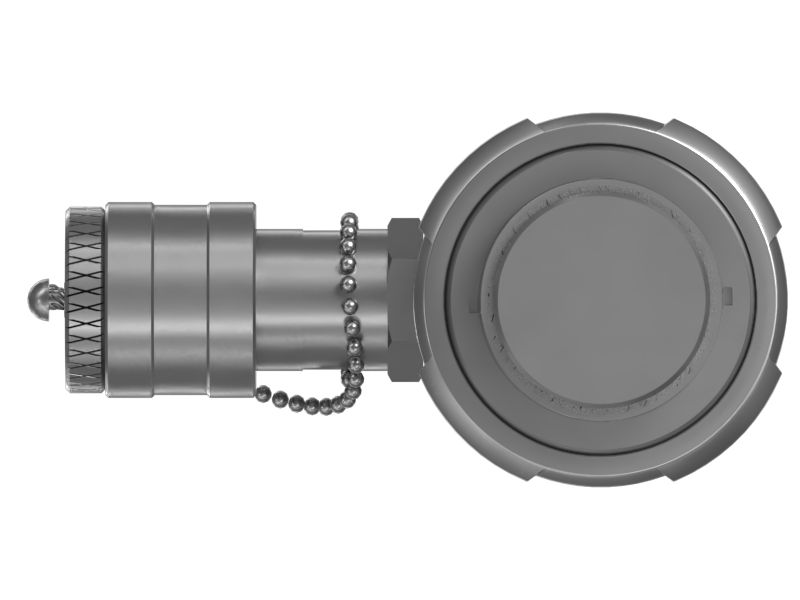

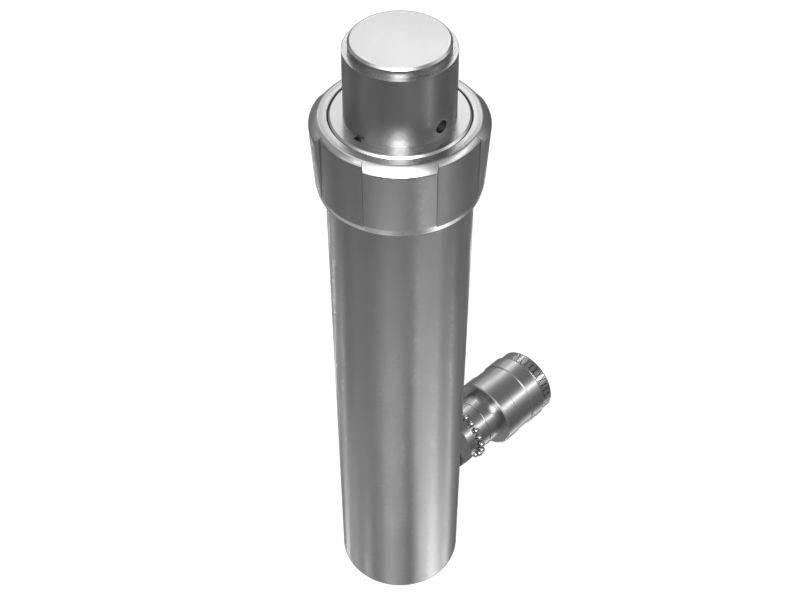

455-1815: Single Acting Hydraulic Cylinder

A Single Acting Hydraulic Cylinder converts hydraulic pressure into linear mechanical force. Ideal for applications demanding reliable and powerful linear extension, these cylinders utilize hydraulic fluid to move a piston within a cylindrical barrel, generating force to extend a rod. This efficient mechanism makes them suitable for a wide range of tasks, from lifting heavy loads to operating attachments.

Attributes:
• Provided with a stroke length of 155.4mm
• Provided with a collapsed height of 301.8mm and extended height of 457.2mm
• Withstands a max advance force of 9.07 metric ton

Applications:
A Single Acting Hydraulic Cylinder generates force in one direction, creates force in one direction, making it ideal for applications requiring movement in a single direction.

• Outer Diameter (mm): 57.2

• Outer Diameter (in): 2.251

• Overall Length (mm): 129.8

• Overall Length (in): 5.11

• Color: Medium Gloss Black

• Weight (kg): 5.4

• Weight (lb): 11.904

• Material: Carbon Steel
