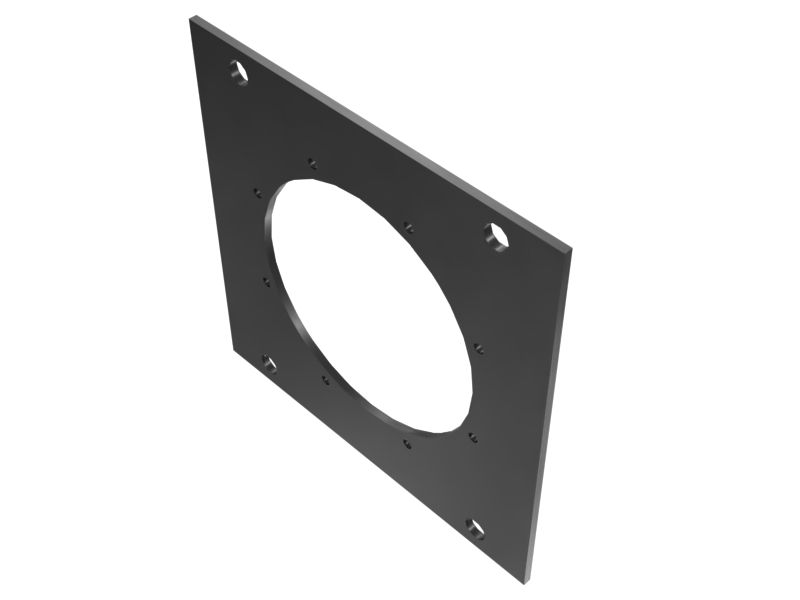

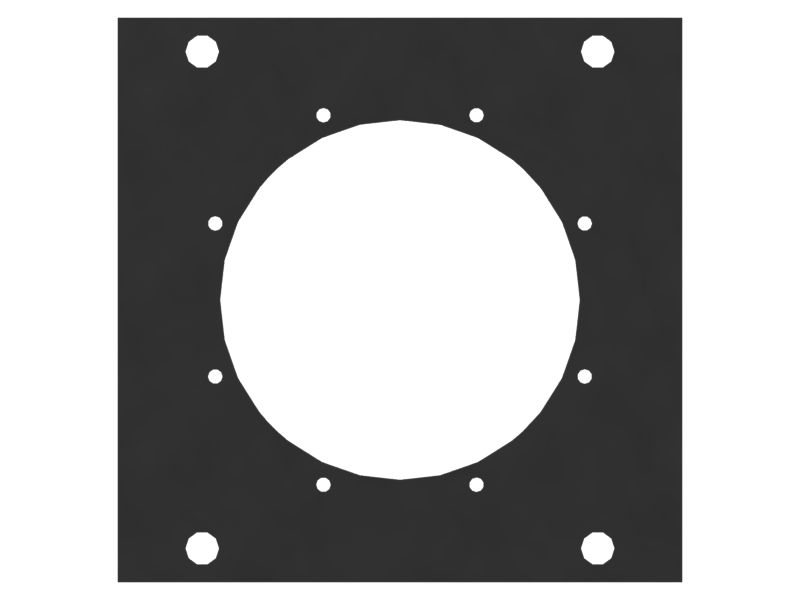

453-5312: 12mm Thickness Adapter Mounting Plate

An Adapter Mounting Plate is a necessary component used in the setup for bench testing hydraulic pumps and motors. This plate provides a stable and accurate mounting surface, allowing for the secure attachment of different hydraulic components during testing procedures. By ensuring that the pump and motor are properly aligned and held in place, the adapter plate helps create a controlled environment where performance parameters can be accurately assessed.

Attributes:
• Ensures accurate alignment of the pump and motor, facilitating consistent and reliable test results.
• Provides enhanced stability to the mounted components, minimizing vibrations during testing.
• Equipped with multiple mounting points for flexibility in setup.

Applications:
An Adapter Mounting Plate is used within a test bench setup for hydraulic pumps and motors during testing processes to ensure the secure positioning of these components, allowing for thorough testing and evaluation under controlled conditions.

• Length (mm): 635

• Length (in): 25

• Width (mm): 635

• Width (in): 25

• Inner Diameter (mm): 405

• Inner Diameter (in): 15.945

• Hole Size (mm): 38.1

• Hole Size (in): 1.5

• Thickness (mm): 12

• Thickness (in): 0.472

• Internal Thread: 3/4"-10-2B

• Weight (kg): 26.67

• Weight (lb): 58.797

• Material: Steel,Coating Mixed
