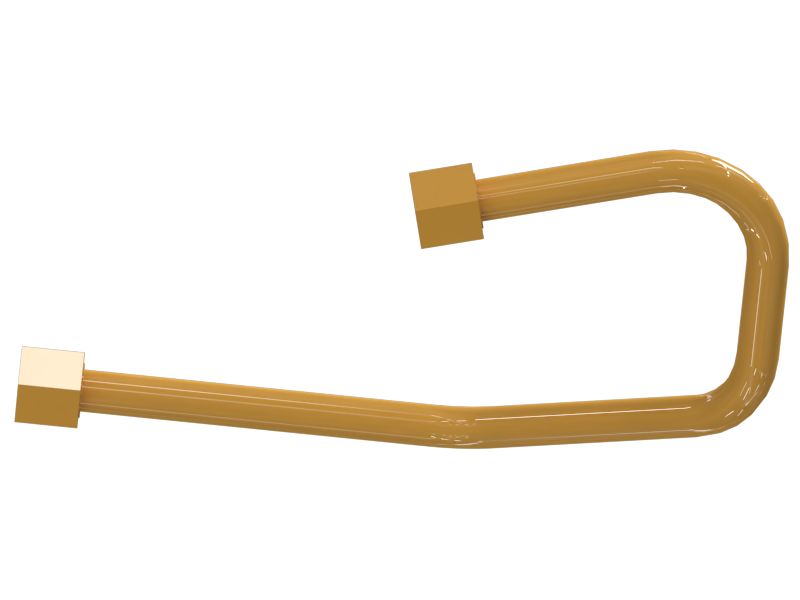

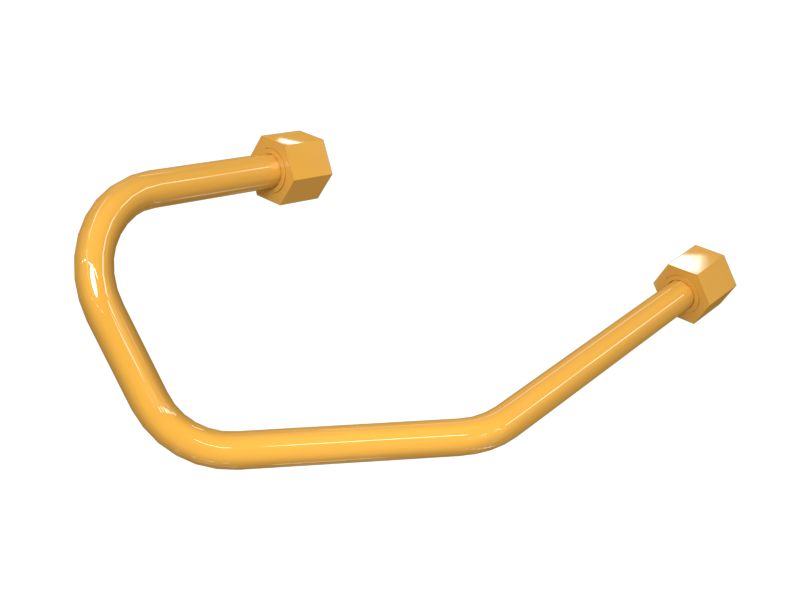

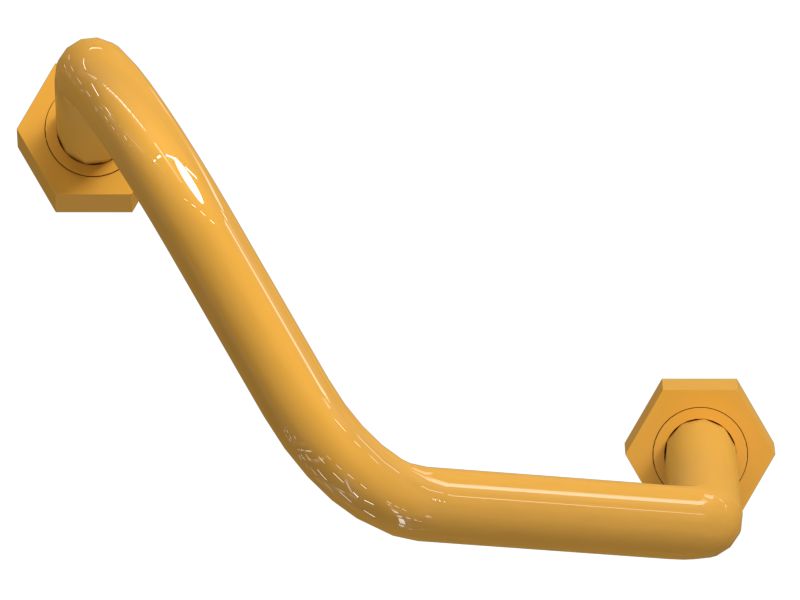

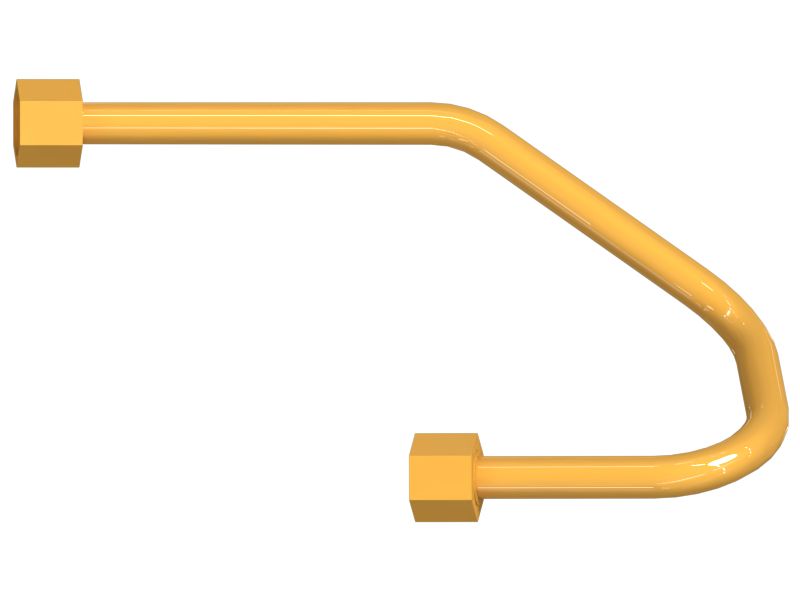

453-3471: Tube Assembly

Description:
Cat® Tube Assemblies are rigid pipes that convey fluid or air. Cat® Tubes are held to the highest standards of quality and reliability. These rigid tubes (also commonly referred to as pipes) are designed to convey liquids or gases and are precisely engineered for each unique application. Each Cat tubes utilizes superior materials and processes, fabricated specifically to withstand the application’s pressure and flow requirements which will ensure a long life and proper machine functionality. Engineered with a specific application in mind, every Cat tube is designed and manufactured to exacting tolerances to ensure proper alignment with existing systems on your Cat machine.

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Length (mm): 283

• Length (in): 11.14

• Height (mm): 113.2

• Height (in): 4.46

• Width (mm): 173.4

• Width (in): 6.83

• Hose Length (mm): 487.2

• Hose Length (in): 19.18

• Tube Diameter (mm): 15.88

• Tube Diameter (in): 0.63

• Side Wall Thickness (mm): 1.65

• Side Wall Thickness (in): 0.06

• Outer Diameter (mm): 23.45

• Outer Diameter (in): 0.92

• Connector: Swivel Nut (2x)

• Connector Type: ORFS (2x)

• Sleeve Inner Diameter or Thread (mm): 16.03

• Sleeve Inner Diameter or Thread (in): 0.63

• Sleeve Length (mm): 10.5

• Sleeve Length (in): 0.41

• Working Pressure (kPa): 28000

• Working Pressure (psi): 4061.064

• Pressure Capacity (kPa): 72216

• Pressure Capacity (psi): 10474.06

• Weight (kg): 0.405

• Weight (lb): 0.89

• Material: Carbon Steel,Alloy Mixed
