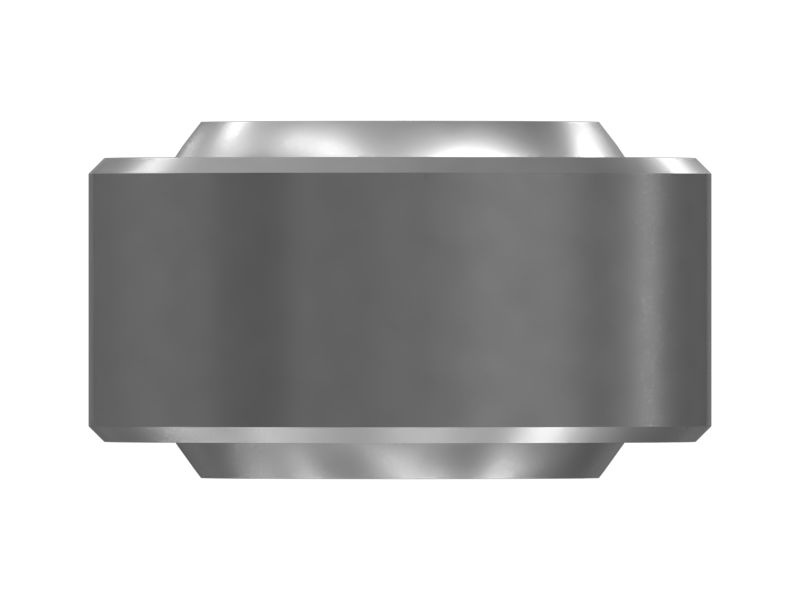

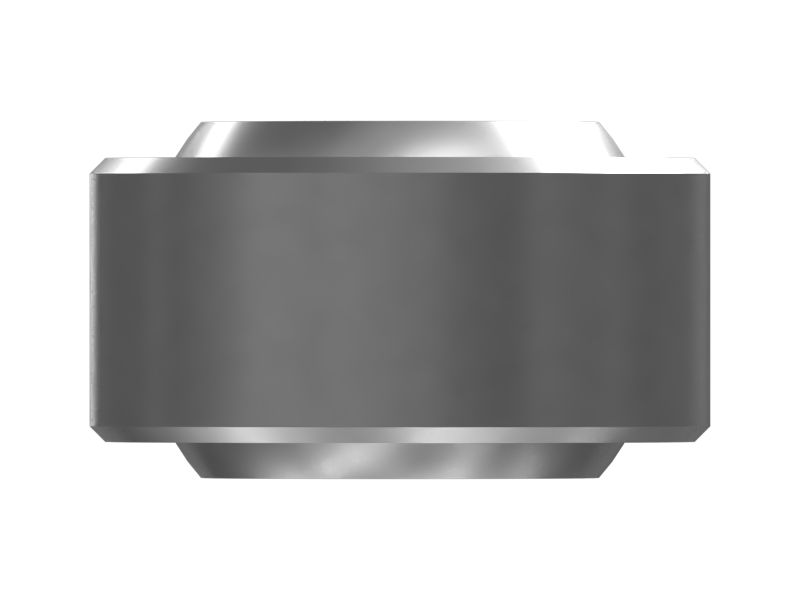

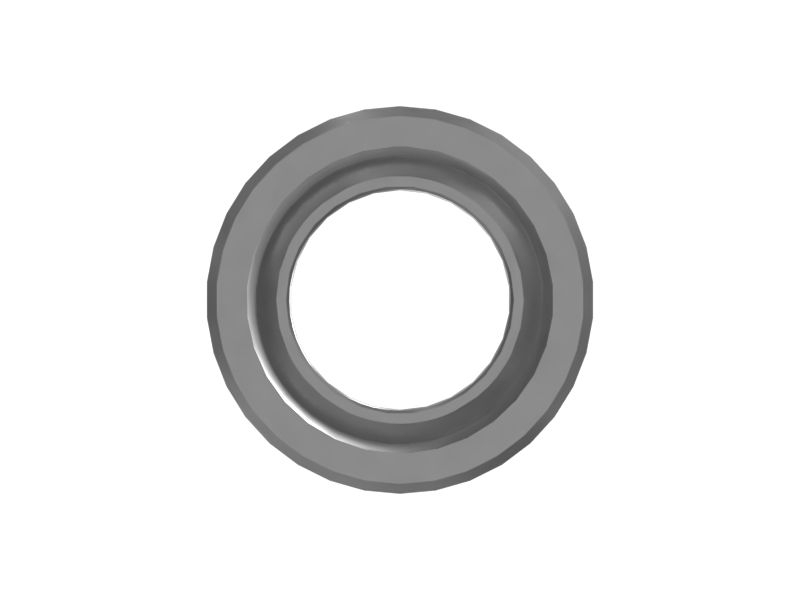

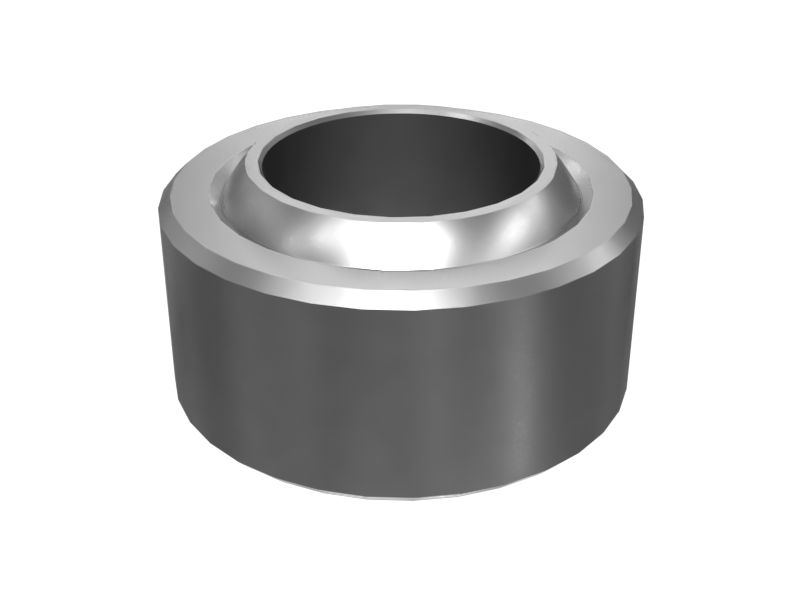

443-4944: ПОДШИПНИК ПОВОРОТНОГО МЕХАНИЗМА

Description:
Self-aligning spherical plain bearings, like part # 443-4944, consist of an inner convex race and an outer concave race that swivel to eliminate stresses on the shaft and bearing assembly due to deflection. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts. Cat bearings are designed for specific applications based on load, operating speed, temperature range, size, and past performance and are manufactured to the highest quality standards for long life and performance.

Attributes:
• Self-aligning bearing
• Inside Diameter: 25.4 mm (1.00 in)
• Outside Diameter: 44.45 mm (1.75 in)
• Inner Race Length: 25.4 mm (1.00 in)
• Outer Race Length: 20.24 mm (0.796 in)
• Maximum Misalignment Angle: 20°

Application:
Cat self-aligning spherical plain bearings are typically used where misalignment, high radial loads and bi-directional axial loads are present. Consult your owner's manual or contact your local Cat Dealer for more information.

• Type: Self-Aligning Bearing

• Material: Steel,Carbon Steel

• Inside Diameter (mm): 25.4

• Outside Diameter (mm): 44.45

• Length (mm): 25.4 (Inner Race)

• External Groove: Yes

• Internal Groove: Yes

• Cross Holes: No

• Inside Diameter (in): 1.00

• Outside Diameter (in): 1.75

• Length (in): 1.00 (Inner Race)
