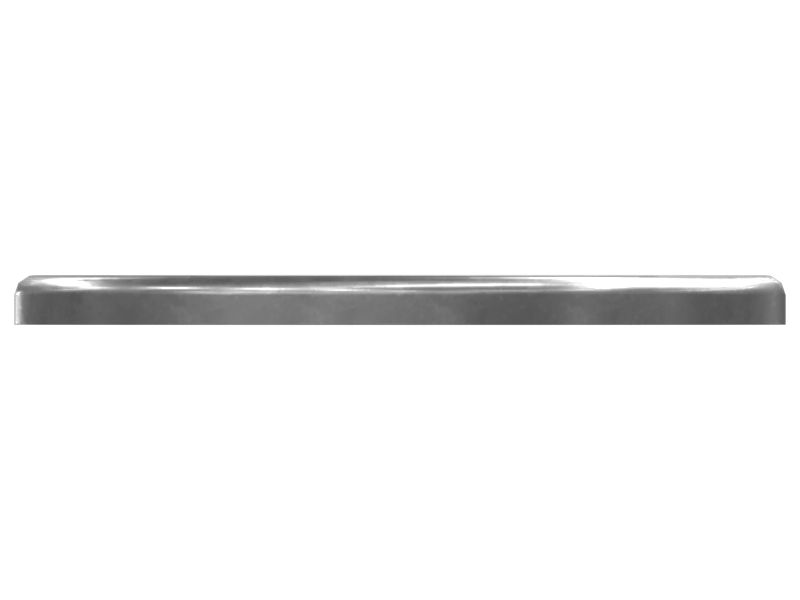

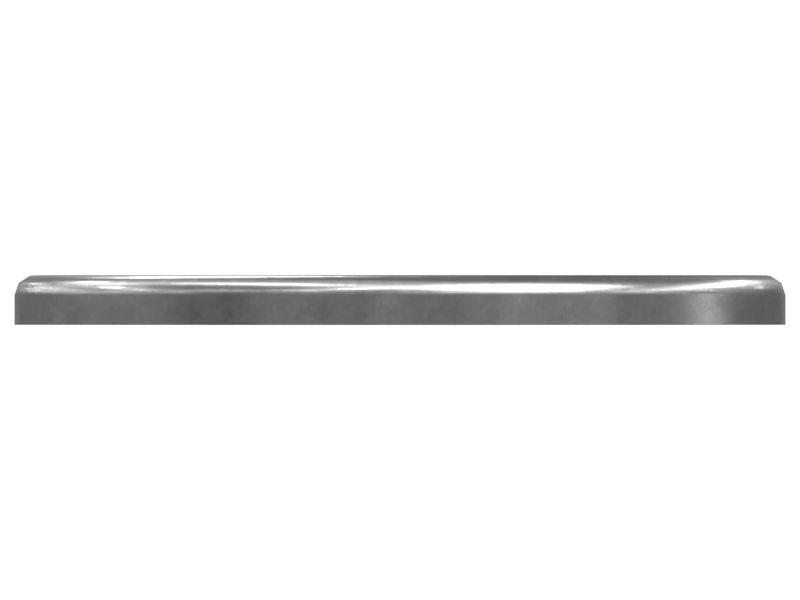

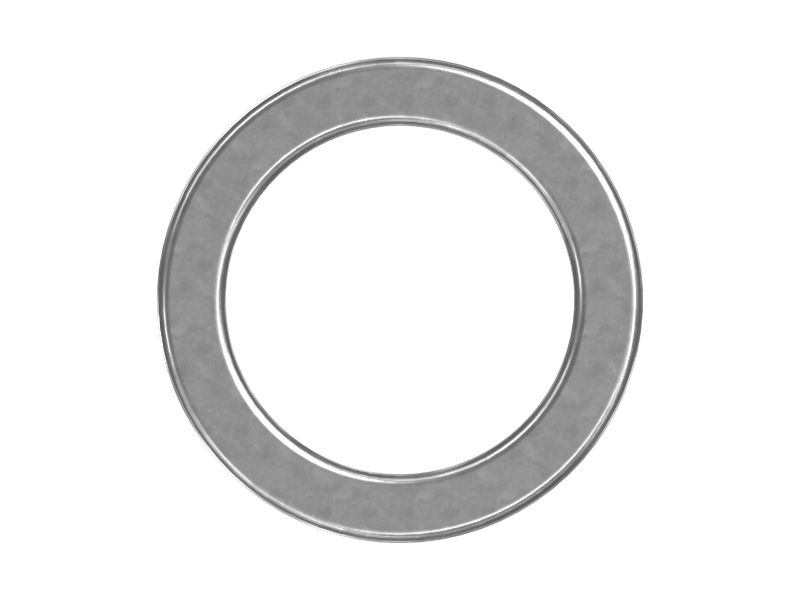

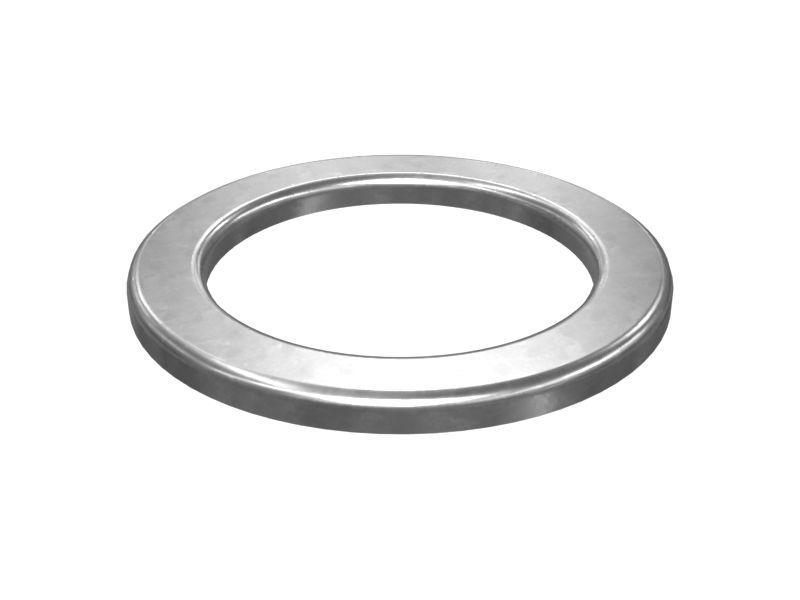

442-9962: СТОПОРНАЯ ПРУЖИНА

Description:
A Retainer Spring is a type of mechanical Spring that is designed to hold or retain a component in a specific position. The design of a Retainer Spring consists of a flat, coiled wire that is formed into a circular or semi-circular shape. The Spring is designed to exert a constant force against the component it is retaining, which helps to prevent it from moving or vibrating.

Attributes:
• Designed for heavy-duty loading and retention under extreme tension, compression, and rotational forces.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
A Retainer Spring is used to seat the spring against the shaft on the transmission drive, mostly used in Cat 415F2 IL, 415, 415F2, 416, 416F2, 420, 420F2, 422F2, 424, 426 F2, 428, 427F2, 428F2, 430F2, 432F2, 434, and 434F2 Backhoe loader.

• Inner Diameter (in): 1.67

• Inner Diameter (mm): 42.38

• Material: Steel,Carbon Steel

• Outer Diameter (in): 2.24

• Outer Diameter (mm): 57

• Thickness (in): 0.15

• Thickness (mm): 3.75

• Weight (kg): 0.02

• Weight (lb): 0.04
