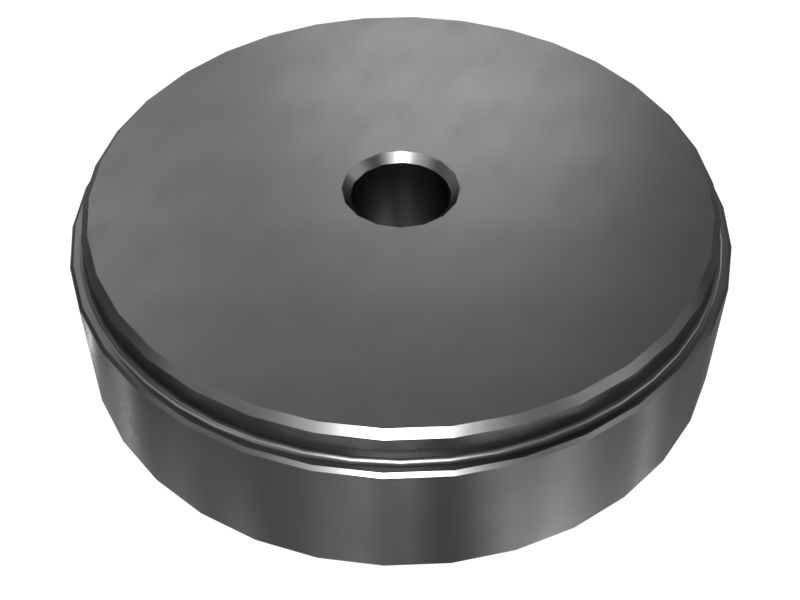

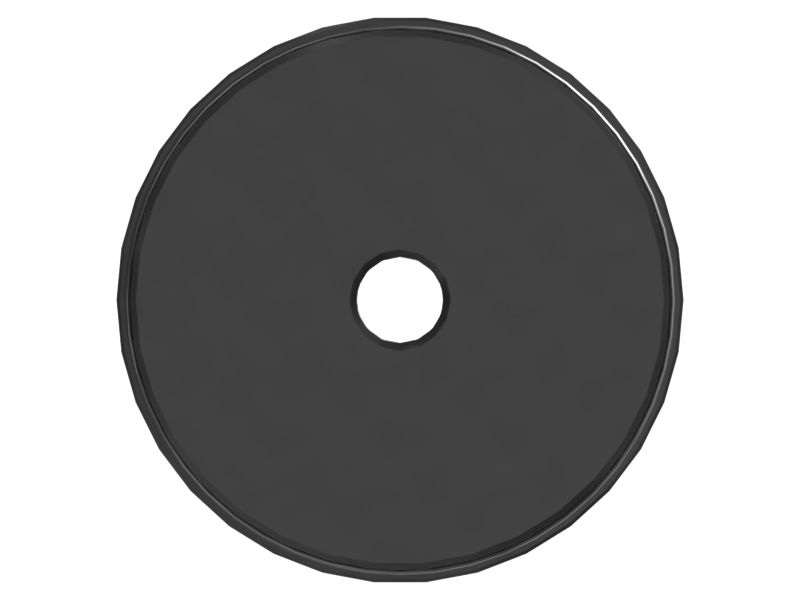

442-8461: Upper Bushing Puller Tool

An Upper Bushing Puller Tool removes upper bushings in hydraulic hammers supports the tool bit and guides it during operation. Over time, bushings need replacement to ensure the hydraulic hammer operates smoothly and efficiently. This puller tool allows technicians to remove worn bushings quickly and without damage to surrounding components.

Attributes:
• Capable of handling high forces required to remove stubborn bushings.
• Engineered for accurate removal of upper bushings with minimal damage.
• Ensures effective and efficient removal of upper bushings.

Applications:
An Upper Bushing Puller Tool is directed to the hydraulic hammer’s tool assembly to remove the bushings, which are located in the hammer's striking area, guiding the tool bit during operation.

• Outer Diameter (mm): 95

• Outer Diameter (in): 3.74

• Width (mm): 25

• Width (in): 0.984

• Internal Thread: 5/8"-18-2B

• Weight (kg): 1.327

• Weight (lb): 2.926

• Material: Steel,Carbon Steel,Coating Mixed
