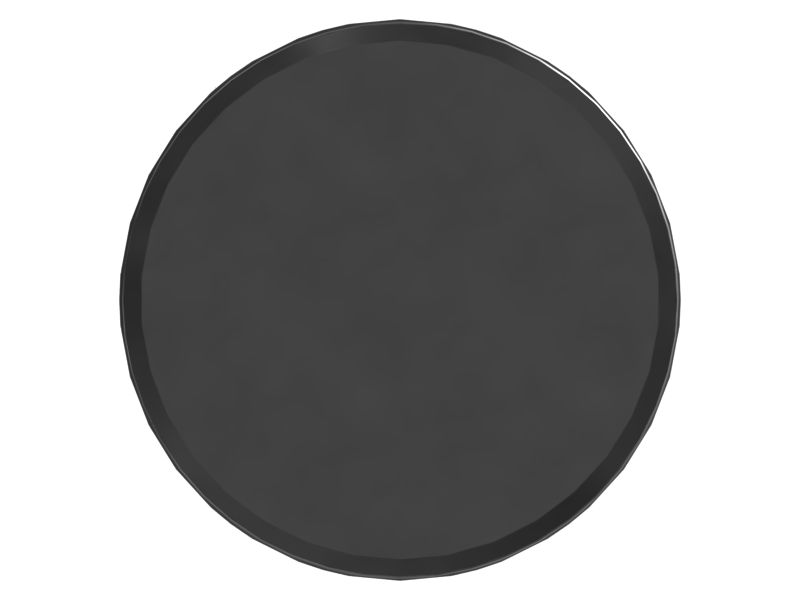

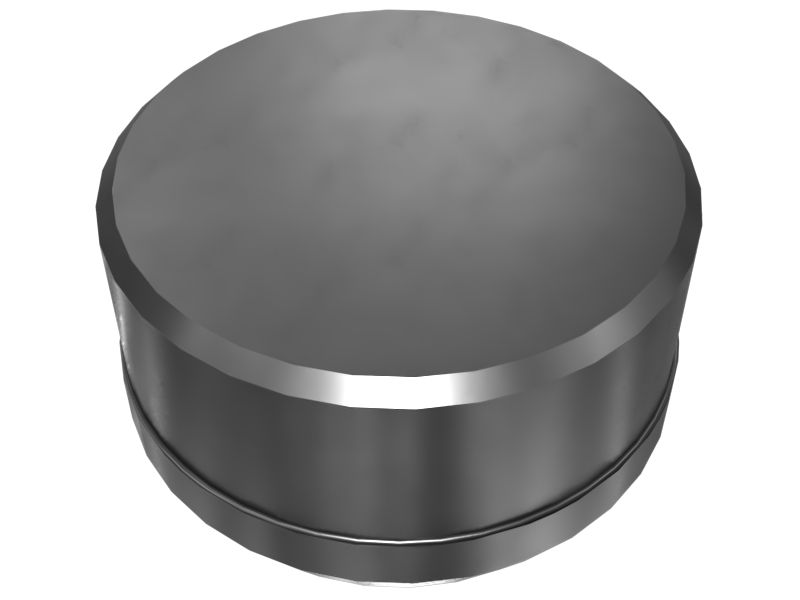

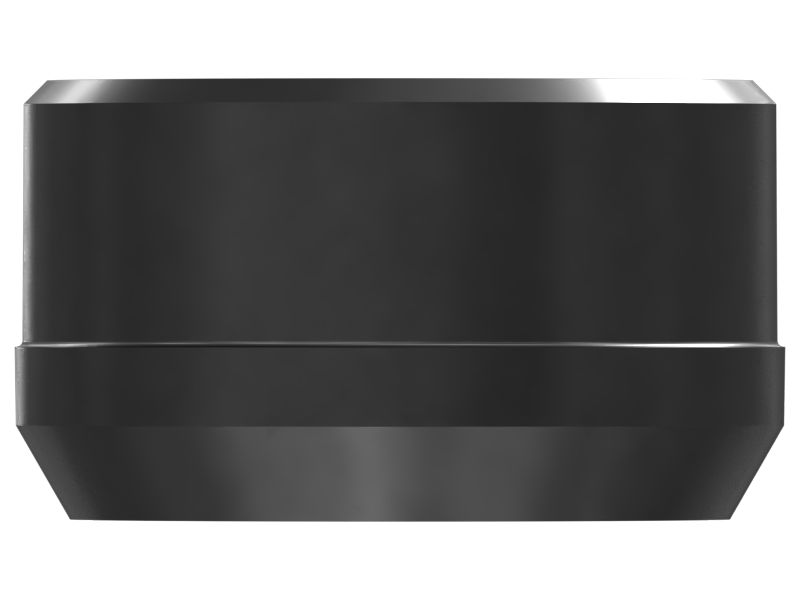

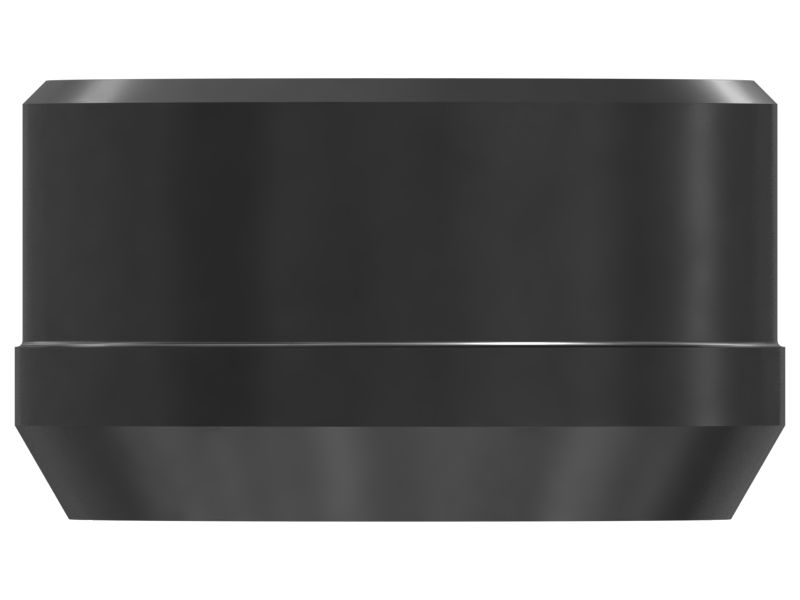

437-5508: 49.2mm Outer Diameter Alignment Plug

An Alignment Plug is used to maintain correct alignment between necessary components such as the port plate, barrel, and slipper retaining plate. When adjusting the pump barrel liftoff shim thickness, this part provides a stable reference point to ensure that all components are correctly aligned. This alignment is necessary for the proper functioning of the pump, affecting its efficiency and performance. By securing these components in their correct positions, the alignment plug helps achieve accurate measurements and adjustments, ensuring optimal pump operation.

Attributes:
• Ensures proper alignment of pump components.
• Reduces risk of alignment-related issues.
• Supports proper pump calibration and adjustment.

Applications:
An Alignment Plug is used in the alignment process for the port plate, barrel, and slipper retaining plate, it is positioned between these components to facilitate accurate measurement and adjustment during pump maintenance.

• Outer Diameter (mm): 49.2

• Outer Diameter (in): 1.937

• Width (mm): 28

• Width (in): 1.102

• Weight (kg): 0.395

• Weight (lb): 0.871

• Material: Steel,Alloy Nickel,Carbon Steel
