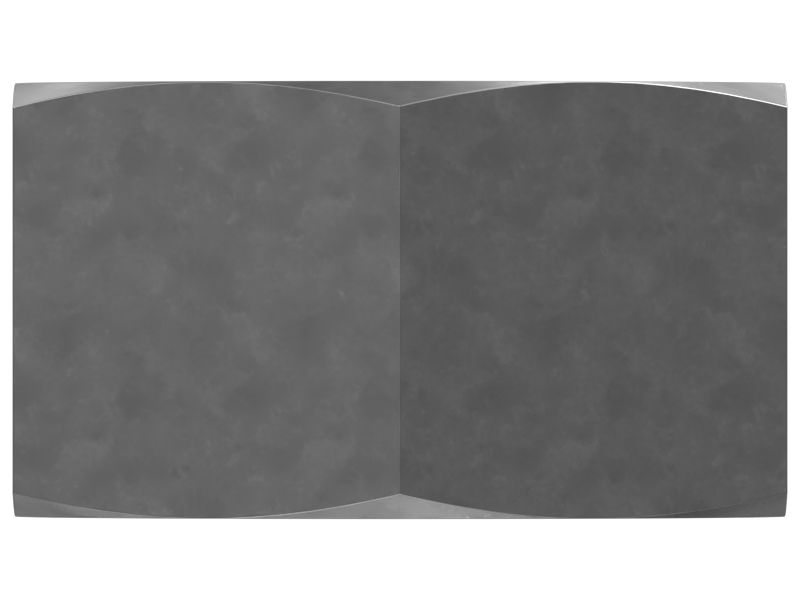

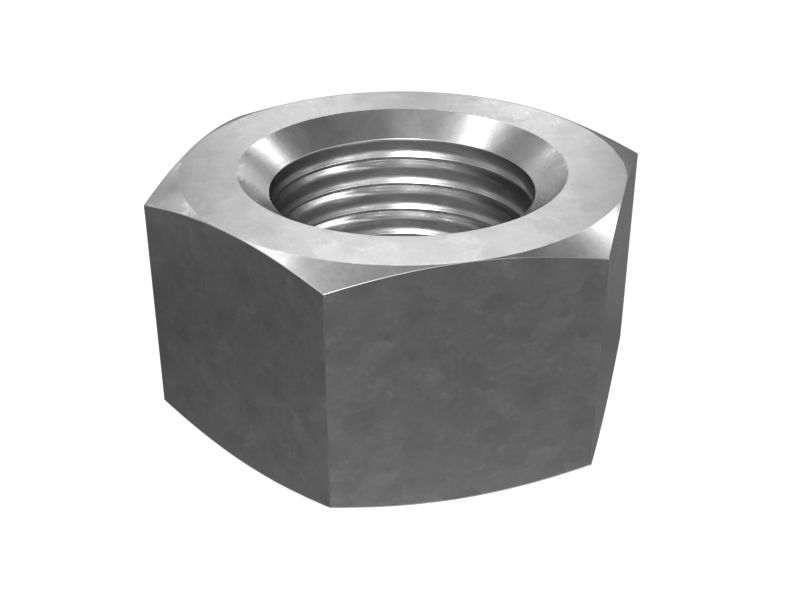

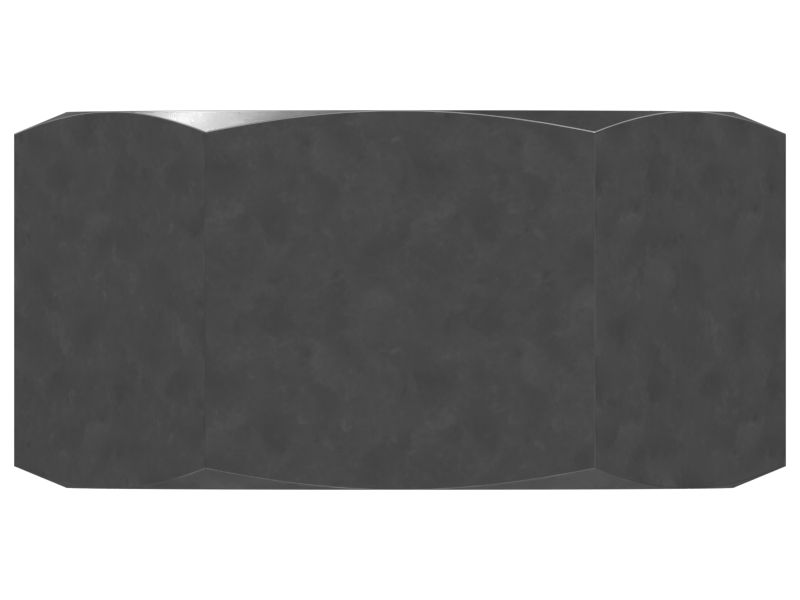

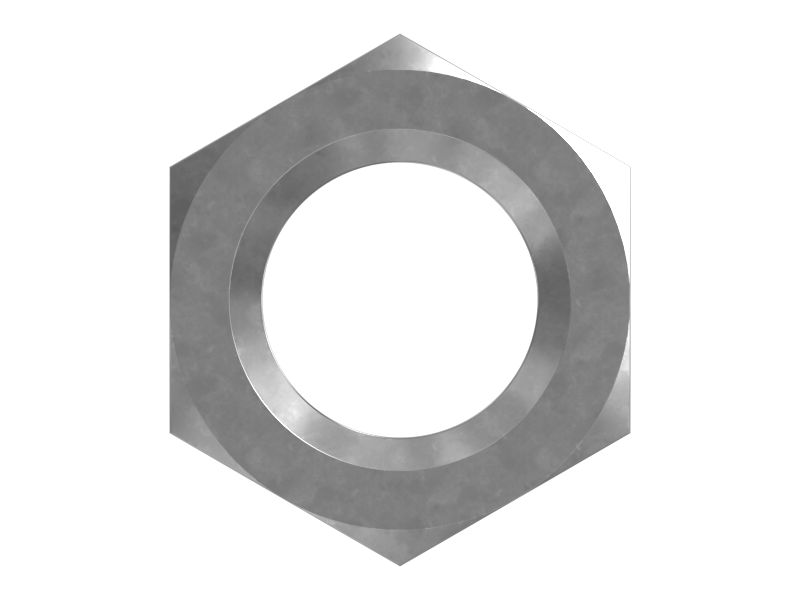

435-0776: M22 x 2.5mm Hex Nut

The Piston Nut is threaded onto the rod end, ensuring that the piston remains securely attached. This connection allows the piston to move back and forth within the cylinder in response to hydraulic pressure changes, converting fluid pressure into linear force and motion. The proper functioning of the hydraulic cylinder heavily relies on the piston nut's ability to maintain a strong and reliable connection between the piston and the rod.

Attributes:
• Secures the piston to the rod end
• Internal threads matching external threads on the cylinder rod
• Ensures secure attachment to prevent unintentional loosening

Applications:
This Piston Nut is located at the piston rod end and it is used to secure the piston to the rod end.

• Thread: RH Coarse

• Nut Type: Hex

• Thread Size (in - TPI) (in): M22-2.5

• Hand of Thread: RH

• Material: Carbon Steel

• Thread Size (dia x pitch) (mm): M22x2.5
