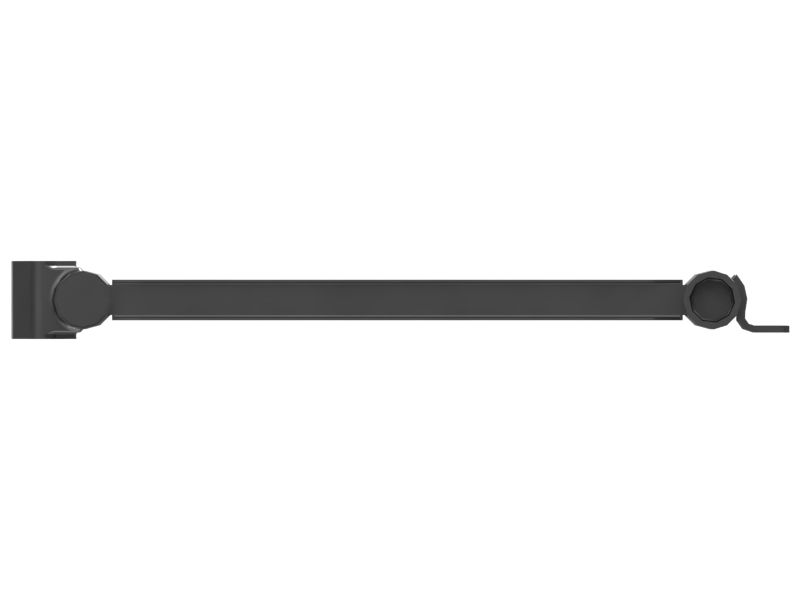

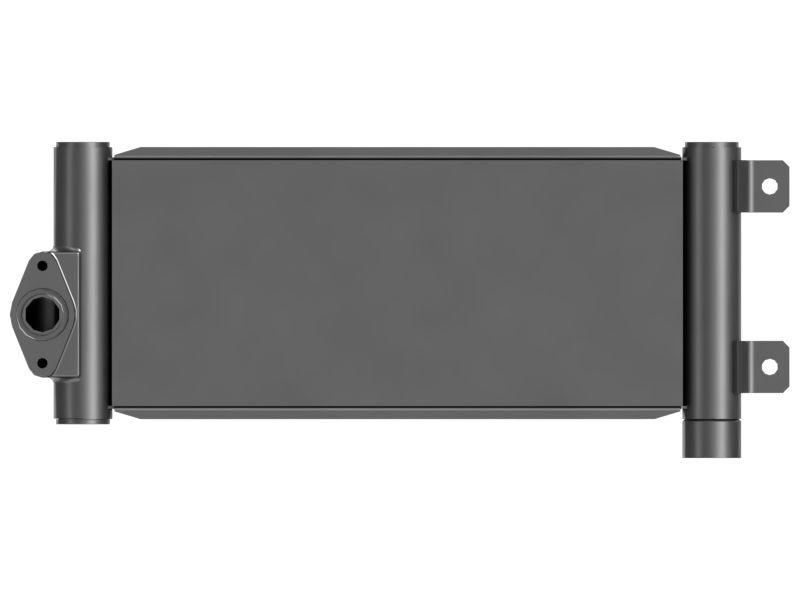

434-8028: СЕРДЕЧНИК МАСЛООХЛАДИТЕЛЯ В СБОРЕ

A Hydraulic Oil Cooler Core is used to effectively dissipate heat from hydraulic oil. The core consists of a network of tubes and fins, allowing the hydraulic oil to flow through the tubes while air passes over the fins. The combination of the square wave air fin type and lanced offset turbulator type maximizes heat dissipation, enabling the hydraulic oil to maintain optimal operating temperatures.

Attributes:
• Efficient heat dissipation and a high total radiator area of 2.08 m² ensure effective cooling
• Leak-proof assurance is provided through stringent pneumatic leak tests at 1.5 MPa
• Optimal oil flow is ensured with an adequate oil passage area of 11.6 cm² for consistent performance

Applications:
A Hydraulic Oil Cooler Core functions by transferring heat from the hydraulic oil to the surrounding air. As the hydraulic oil flows through the tubes of the core, heat is transferred to the fins to effectively dissipate heat, maintaining the hydraulic oil at the desired temperature.

• Material: Alloy Aluminum
