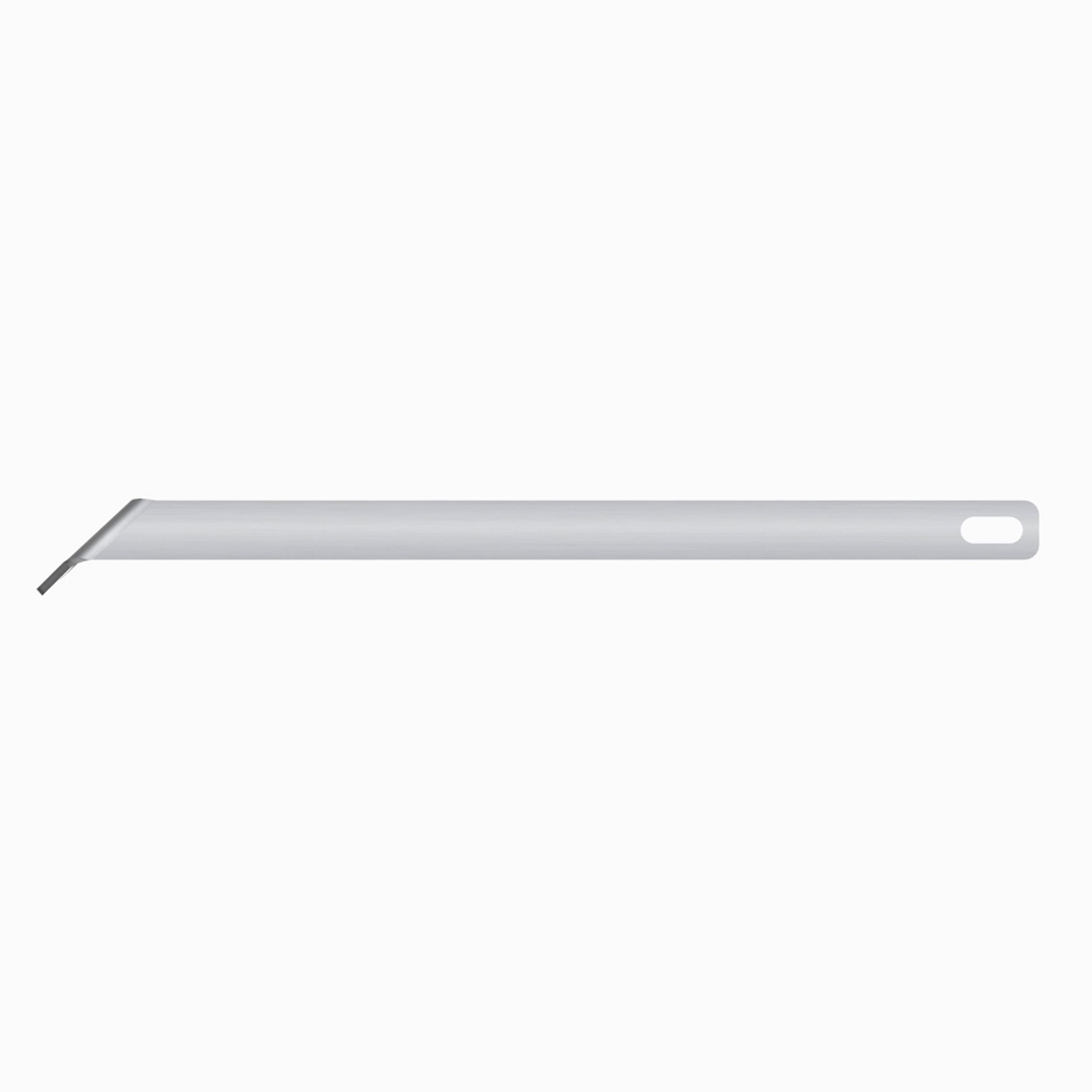

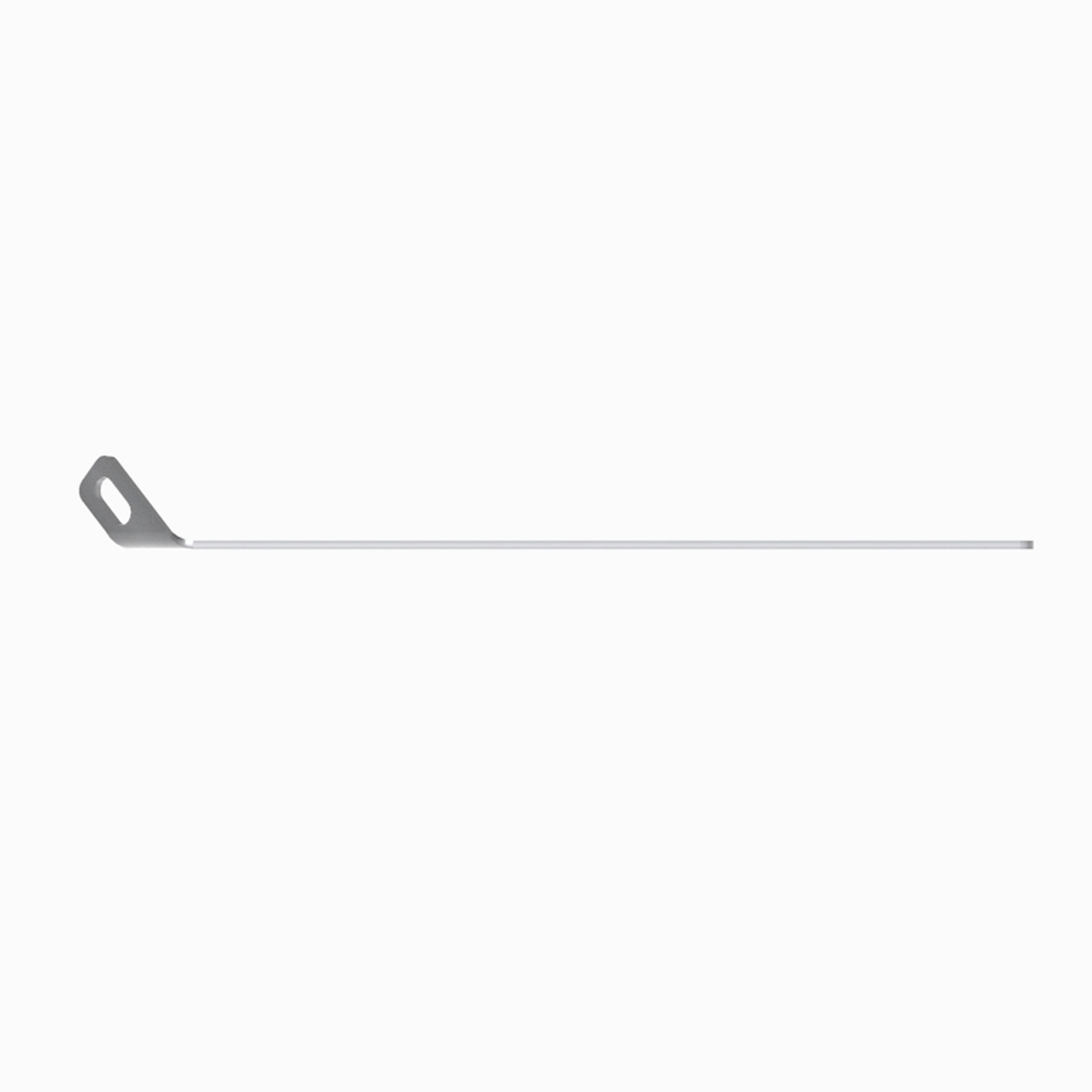

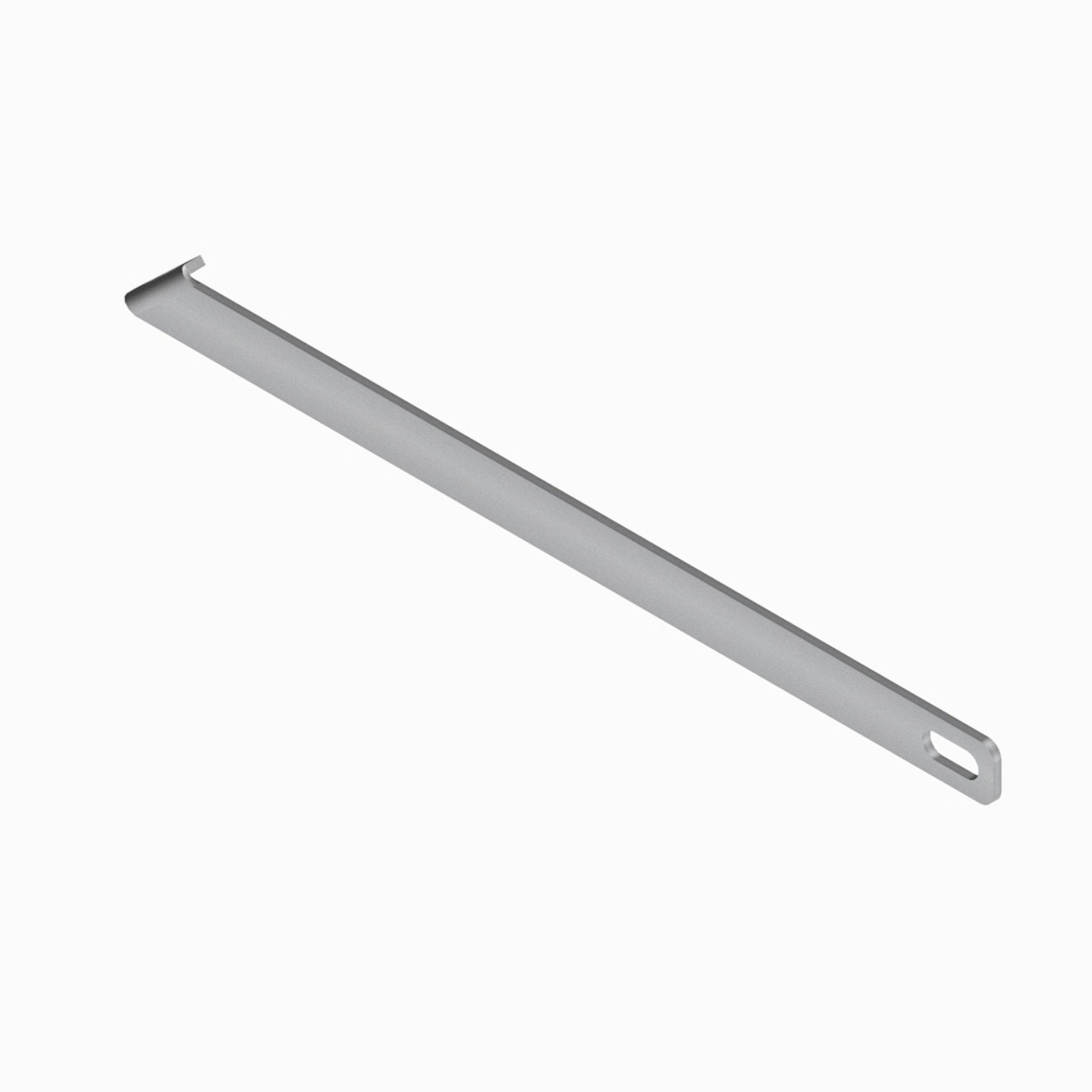

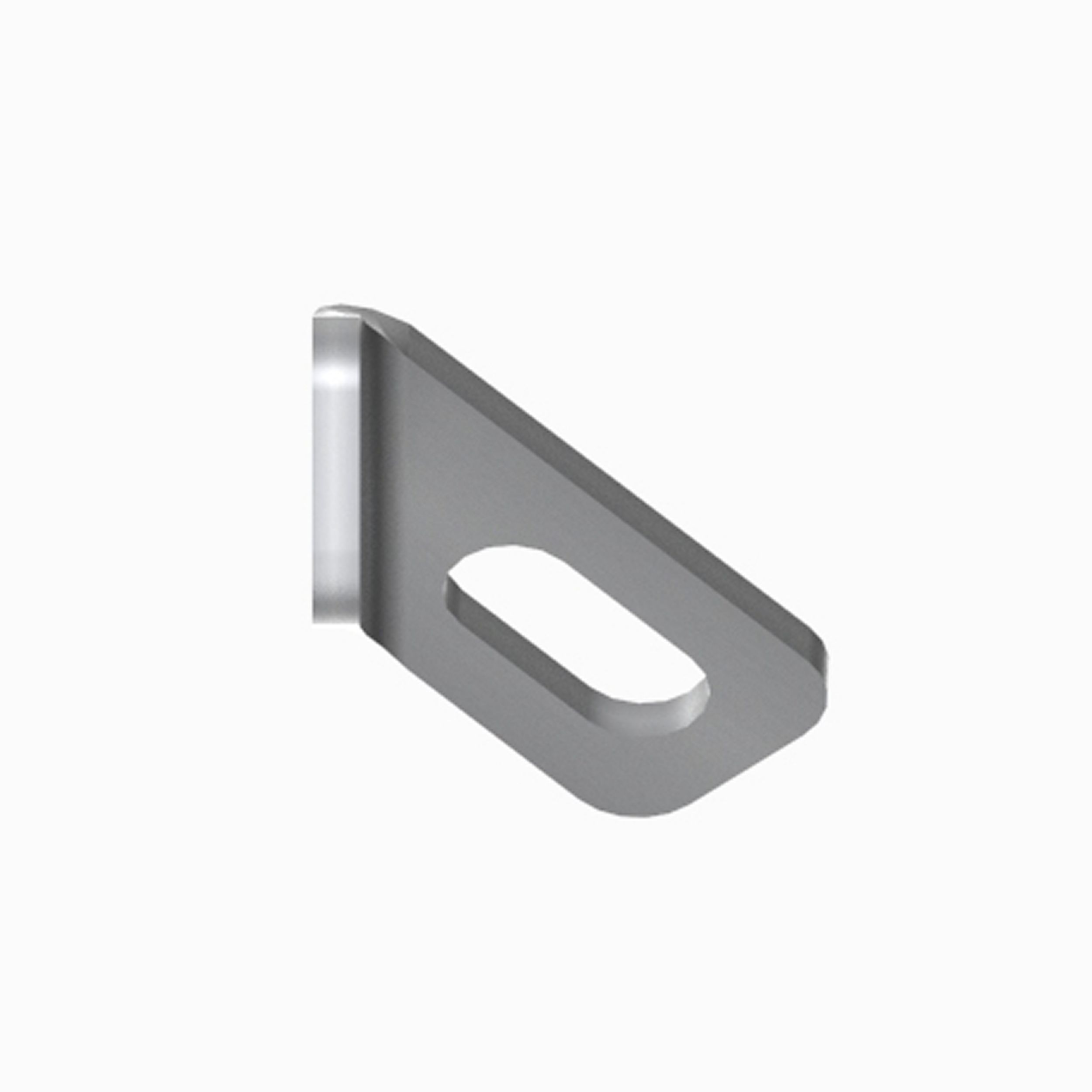

434-4169: ПЛАСТИНА

Description:
A Parking Brake Support Plate guides the Parking Brake assembly to get fastened with the Cabin. Plates can be made from various types of steel, including carbon steel, stainless steel, and alloy steel. The thickness of the plate can vary depending on the weight and size of the equipment it needs to support. Plates are typically drilled or punched with holes to accommodate bolts, screws, or other fasteners used to secure the equipment. Some plates may also be welded to the equipment to provide additional stability and support.

Attributes:
• Provided with 2 slot holes of size 9 x 21mm to fit the fasteners of size M8.
• Withstands high-impact stresses and is resistant to deformation.

Applications:
A Parking Brake Support Plate is used to mount the Parking Brake assembly to the Cabin, mostly used inCAT 415, 415F, 416, 416F, 420, 420F, 422F, 424, 426, 426F, 427, 427F, 428, 428F, 430, 430F, 432, 432F, 434, 434F, 444 and 444F Backhoes, 420F OEM Applications.

• Material: Steel,Carbon Steel

• Thickness (in): 0.12

• Thickness (mm): 3

• Weight (kg): 0.16

• Weight (lb): 0.34

• Width (in): 0.79

• Width (mm): 20
