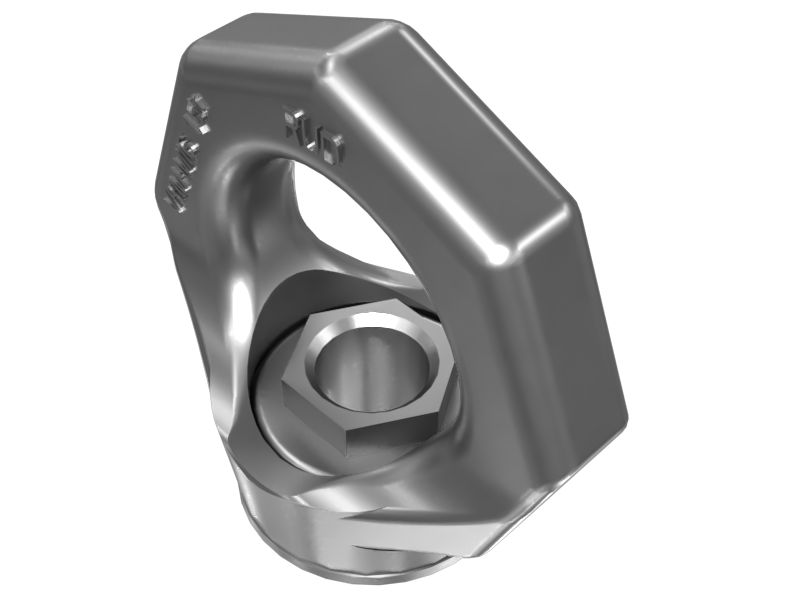

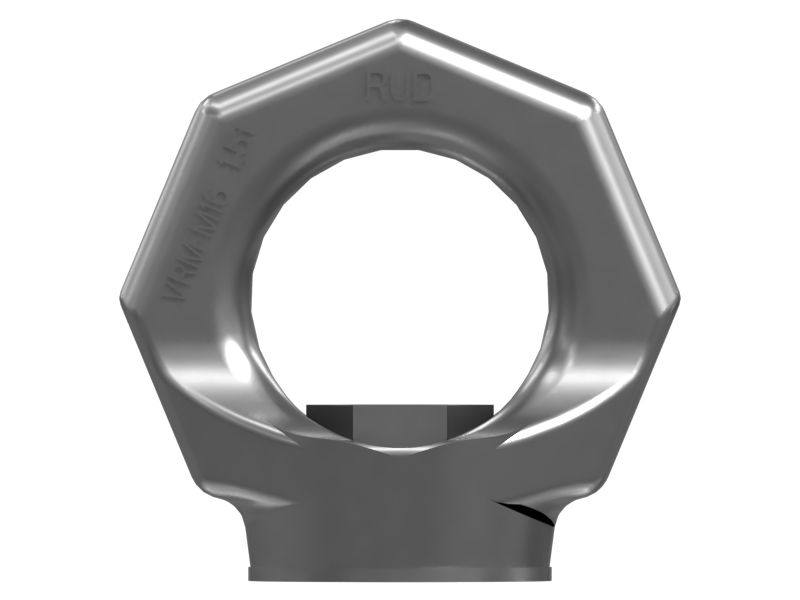

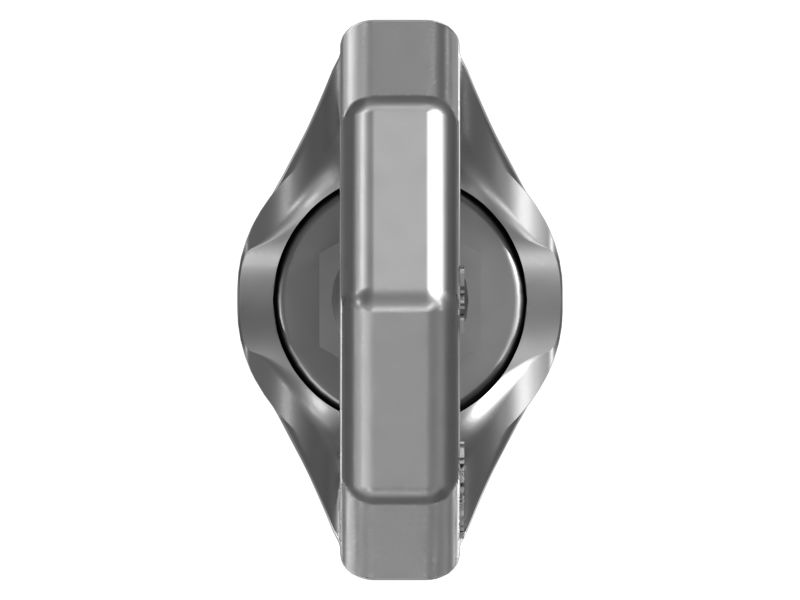

433-2738: M16 Starpoint Eye Nut

The Starpoint Eye Nut is used for secure and efficient handling of equipment components. It features a load ring capable of rotating 360 degrees, allowing for flexible maneuverability when lifting. This rotational capability ensures that the load is aligned correctly with the lifting direction, minimizing stress, and enhancing safety during the operation. The pull direction is adjustable, which helps in maintaining the optimal angle for lifting, thus reducing wear and tear on the lifting equipment.

Attributes:
• Provides a reliable anchor point for lifting mechanisms.
• Allows for safe and reliable lifting of harsh loads.
• Features a load ring capable of 360-degree rotation for versatile positioning.
• Adjustable pull direction enhances operational precision.

Applications:
The Starpoint Eye Nut is used to lift components safely within the equipment by threading them into pre-existing holes. It is located on the surface of the components parts that require proper and secure lifting.

• Length (mm): 65

• Length (in): 2.559

• Height (mm): 67

• Height (in): 2.638

• Width (mm): 46

• Width (in): 1.811

• Hex Size (mm): 19

• Hex Size (in): 0.748

• Thread: M16

• Weight (kg): 0.3

• Weight (lb): 0.661

• Material: Steel,Carbon Steel
