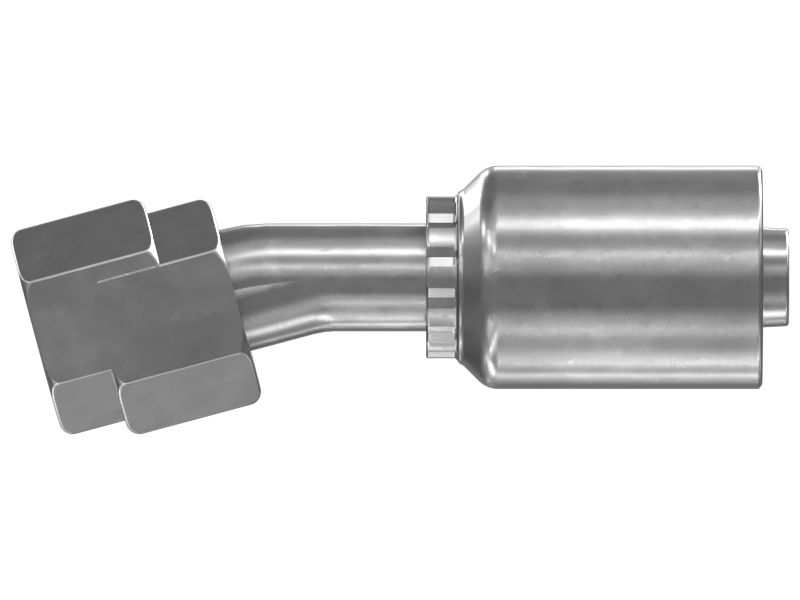

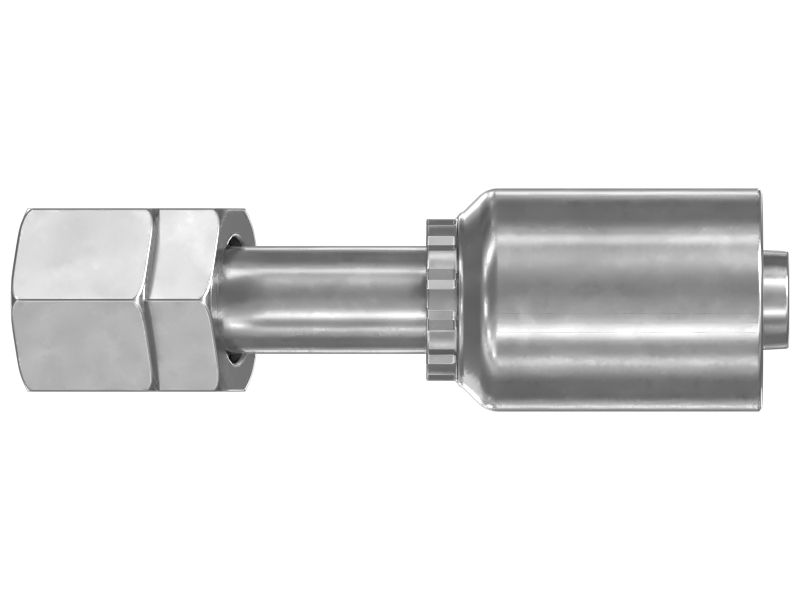

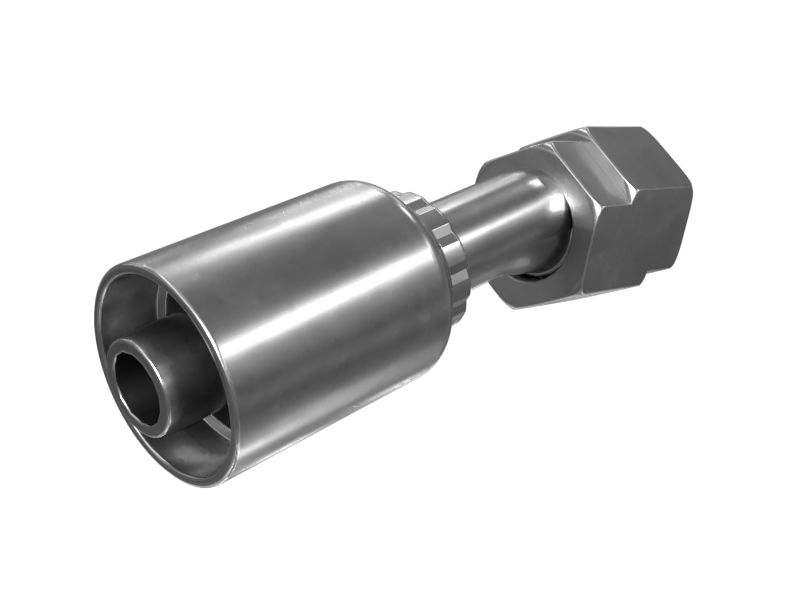

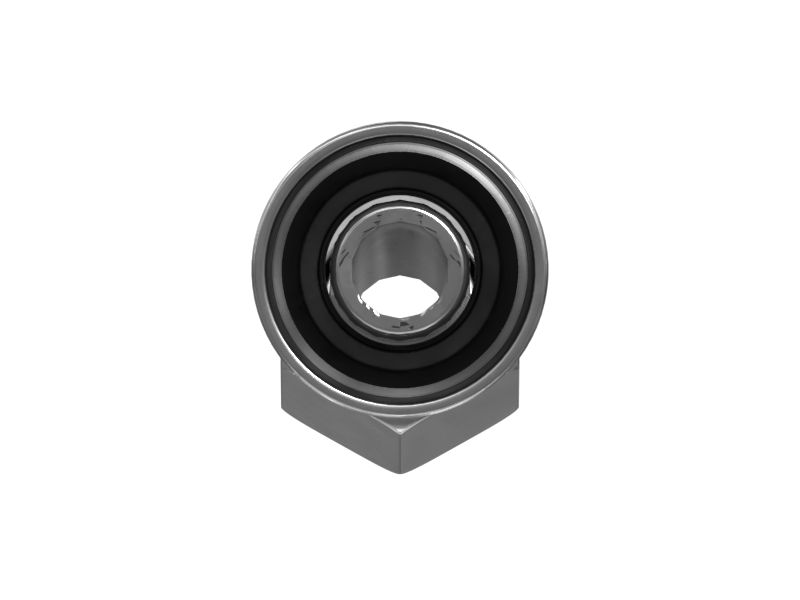

432-2009: СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ

A Female Hose Coupling is an integral part of hydraulic systems, ensuring the efficient and leak-free transfer of fluids. The female coupling consists of a cylindrical body with internal threads designed to engage with the external threads of a male coupling. This threaded connection creates a tight seal, preventing fluid leakage and maintaining the hydraulic integrity of the system. The primary function of a female hose coupling is to connect two segments of hydraulic hoses securely. When joined with a male coupling, it forms a complete connection that allows the transmission of hydraulic fluids, enabling the machinery to perform various tasks such as lifting, excavating, or steering. The coupling's design ensures a reliable and leak-resistant joint.

Attributes:
• Flexible design to accommodate movement or bending.
• Resistant to abrasion, chemicals, and environmental factors.
• Reinforced for durability and resistance to pressure.
• Designed for 19.05mm inner diameter hose.

Applications:
A Female Hose Coupling is used in fluid transfer systems and facilitates the movement of liquids and gases between different processing stages.

• Connector: Permanent

• Material: STEEL,Carbon Steel,Alloy Zinc

• Shape: 15 Degree

• Connector Type: -12 ORFS FEMALE

• Threads/Inch: 1-3/16-12

• Drop Length (mm): 7.5

• Drop Length (in): 0.3

• Length (mm): 118

• Length (in): 4.65

• Cut-Off Factor (mm): 59.3

• Cut-Off Factor (in): 2.33

• Recommended Hose Size (mm): 19.05

• Recommended Hose Size (in): 0.75

• Compatible With: SAE 100R12, SAE 100R13, SAE 100R15

• Hex Size (mm): 34.92

• Hex Size (in): 1.37

• Seal Type: NBR 6V-9746, FKM 228-7092

• Description: Permanent Coupling 12XN

• Applications: Permanent Coupling for use with hydraulic hose. F
