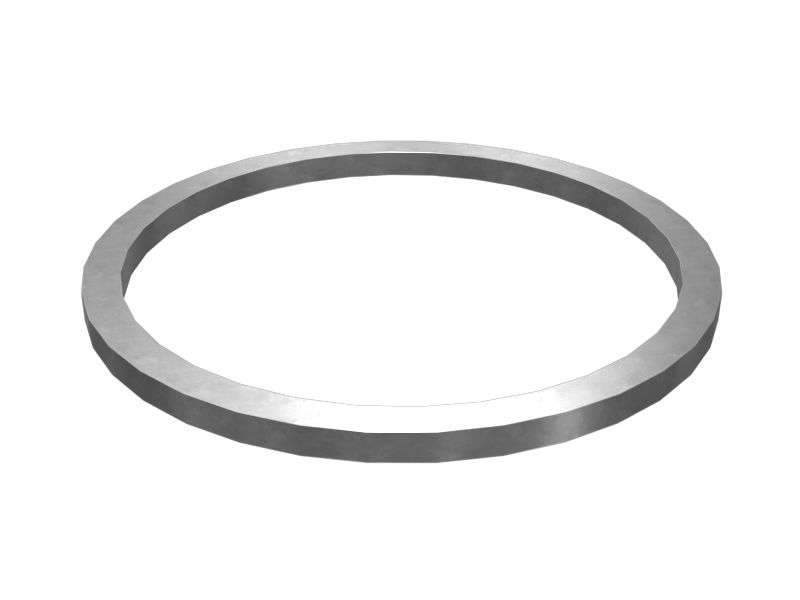

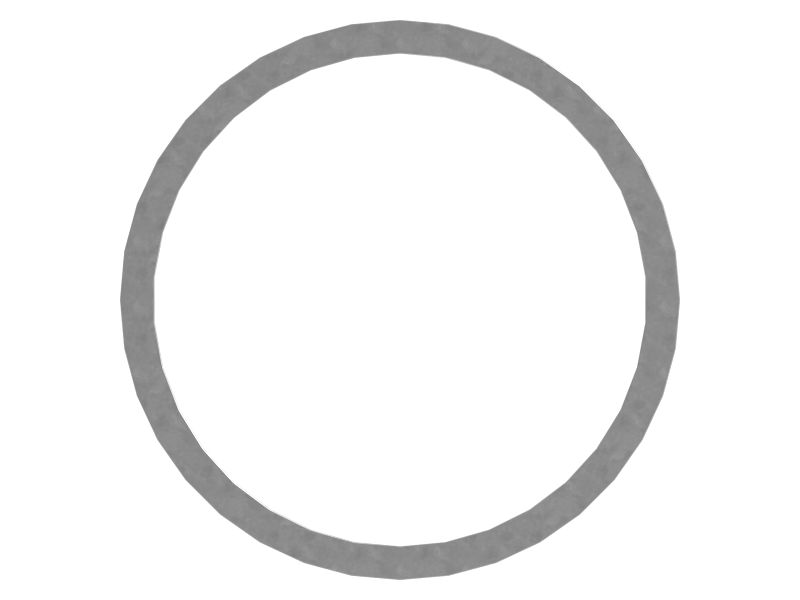

430-4671: КОЛЬЦО

An Internal Retainer Ring is a critical component used in the swing drive and is positioned between the ring gear and the reaction hub, playing a vital role in the overall functionality and stability of the Swing drive. By securely holding the ring gear in place, the retainer ring helps distribute the applied loads evenly across the components.

Attributes:
Provides axial thrust resistance to prevent part movement
Manufactured to precise specifications and built for durability and reliability

Applications:
An Internal Retainer Ring is used to axially retain the ring gear on the reaction hub, preventing any axial movement during operation. This ensures the consistent meshing and transmission of torque between the ring gear and the reaction hub, this is mostly used in Cat® 305.5E, 307, 307E, and 308E Excavators.

• Inner Diameter (in): 2.95

• Inner Diameter (mm): 75

• Outer Diameter (in): 3.35

• Outer Diameter (mm): 85

• Thickness (in): 0.16

• Thickness (mm): 4

• Weight (kg): 0.01

• Weight (lb): 0.02

• Material: Carbon Steel
