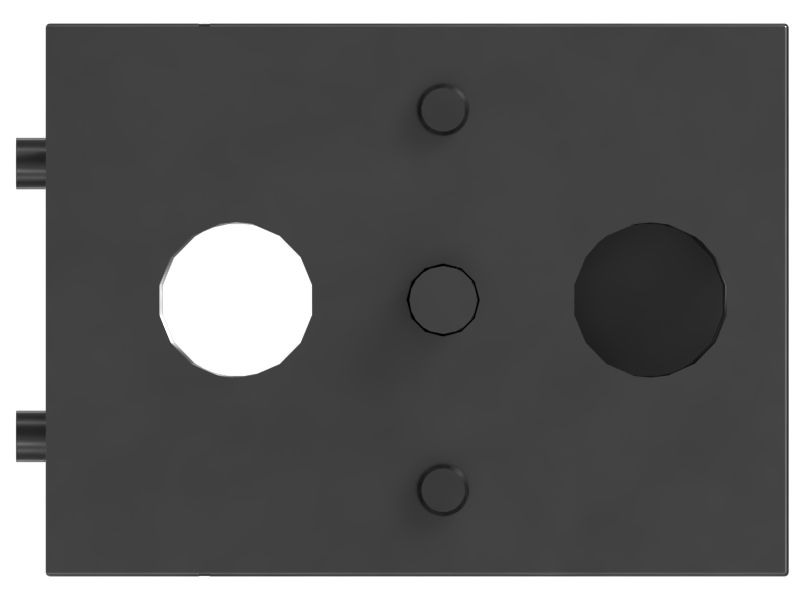

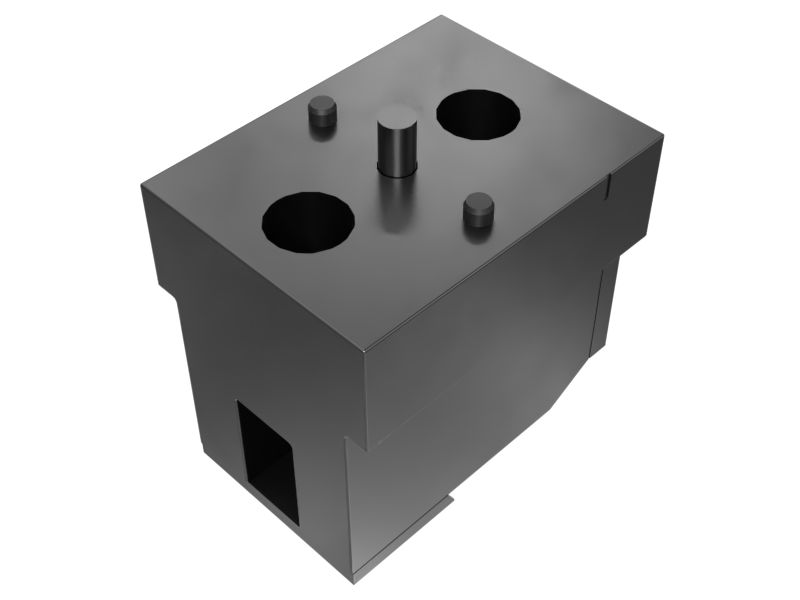

426-2720: Hydrostatic Drive Motor Reaction Block

The Hydrostatic Drive Motor Reaction Block functions as a supportive structure that ensures the hydrostatic drive motor remains firmly in place during the nut-tightening process. By providing a secure and stable foundation, this component minimizes any potential movement of the motor, allowing for accurate tightening of the nuts. This accurate alignment is necessary to maintain the integrity and performance of the drive motor assembly. The reaction block thus plays a role in the overall assembly process, contributing to operational reliability.

Attributes:
• Supports proper motor positioning for optimal performance.
• Enhances the efficiency of the nut-tightening operation.
• Reduces the risk of misalignment during installation.

Applications:
The Hydrostatic Drive Motor Reaction Block is utilized in the assembly of hydrostatic drive motors, positioned at the base of the motor during the nut tightening phase, ensuring stability and accuracy.

• Overall Length (mm): 142.9

• Overall Length (in): 5.626

• Overall Width (mm): 101.6

• Overall Width (in): 4

• Overall Height (mm): 155.6

• Overall Height (in): 6.126

• Thread: 3/8"-16, 1/4"-20, 1/2"-13

• Weight (kg): 9.556

• Weight (lb): 21.067

• Material: Low Alloy Steel
