ПЛАСТИНА

424-7122: ПЛАСТИНА

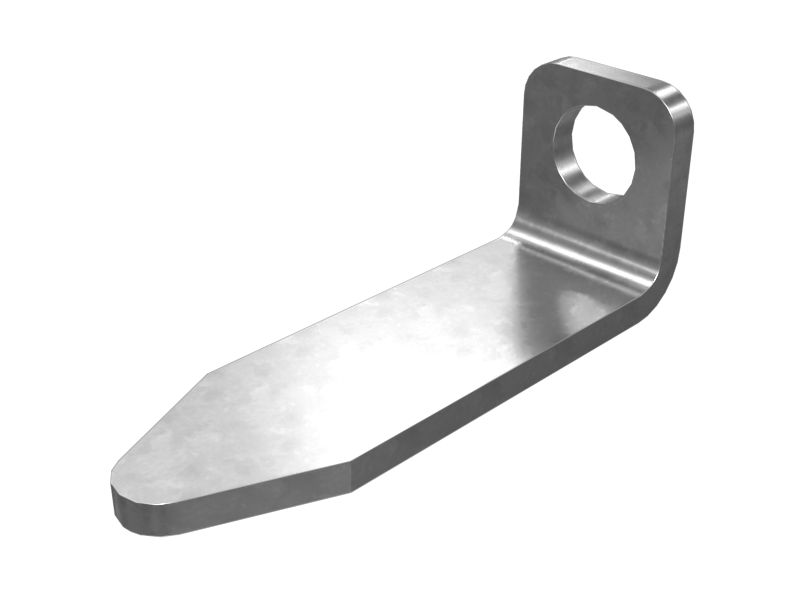

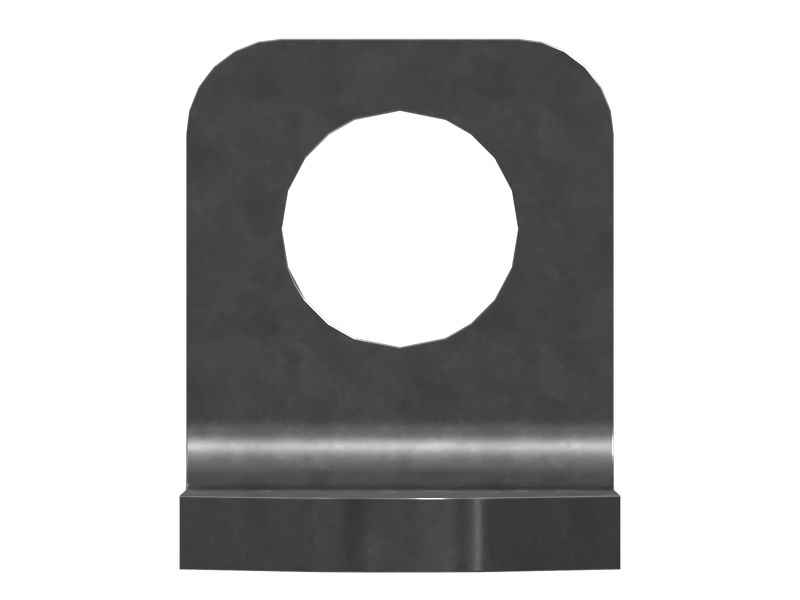

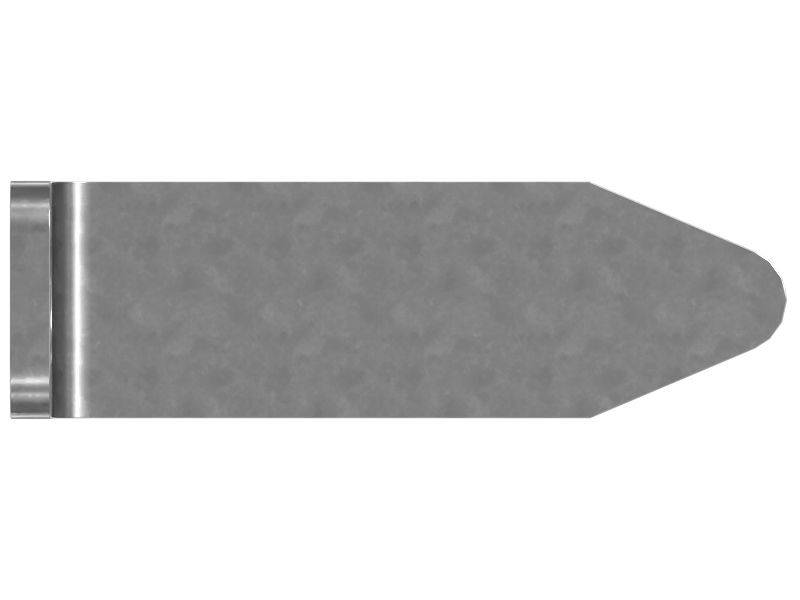

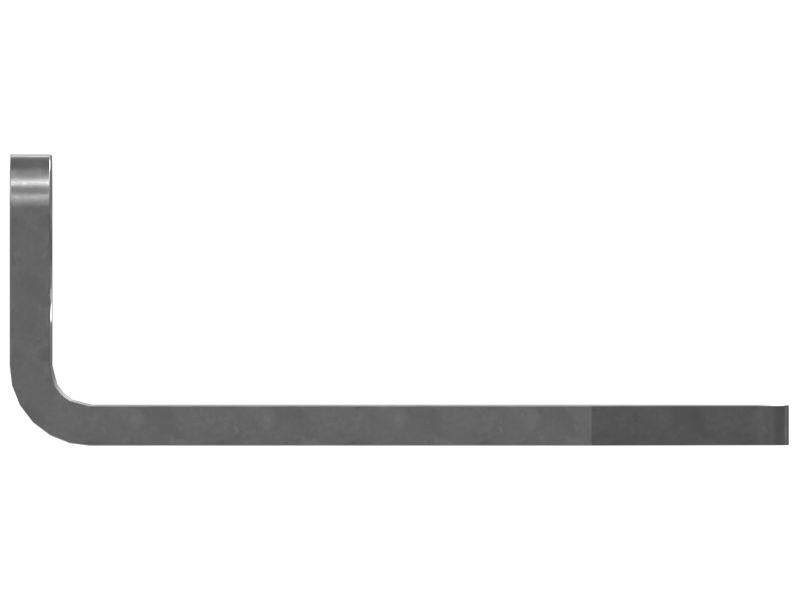

Cat® 3mm Thick Scale Pointer Plate used in Right Hand Tow Arm


Заинтересовал товар?

Имя

Почта

Комментарий

Схема

Не найдено

Описание для номера по каталогу 424-7122

The Scale Pointer Plate used in the Tow Arm assembly serves as a reference point for measuring and controlling the screed's height or elevation height or elevation. It is designed to fit onto the right-hand side Tow Arm to help get the readings from the scale as needed. The purpose of the scale pointer plate is to assist in achieving the desired thickness and smoothness of the asphalt layer being laid.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Provided with a mounting hole to fit the fastener of size M8

Applications:
The Scale Pointer Plate is used to indicate the reading of the scale to the user, ensuring accurate and precise leveling of the screed during Asphalt Paving operations.

WarningOutline Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 424-7122

  • Material: Structural Steel

Совместимые модели для номера по каталогу 424-7122

ASPHALT PAVER

AP500F AP655F L AP555F AP-1055F AP-1000F AP600F AP600 AP1000 AP1055 AP655
